10. Layout
Image 10-57
Layout file services, copy/save as
Image 10-58
Copy layout
10.6 Zoom - Focus - Shift windows
What can be done ?
Different custom layouts can have different zoom/focus/shift settings, e.g. when using the projector on 2 different projector distances
or two different screen sizes (same image but 2 custom layouts needed due to different zoom/focus/shift settings).
Adjust the lens settings for the different situations and save these settings each in a different custom layout.
When using only one screen to project the different layouts, the same lens settings can be used for all custom layouts.
When using different screens, different lens settings can be used (settings saved in the custom file will be used). To use different
lens settings, it is important that the lens is calibrated so that the lens always returns to the saved position when opening a custom
layout.
Switching from a custom file (layout) to a standard file (layout) will not change the current lens settings.
How to set the zoom - focus setting
1. Press Menu to activate the menus and select Layout → Zoom / Focus / Shift. (image 10-59, image 10-60)
2. Press ENTER to select.
The Zoom /Focus/Shift window opens. (image 10-61)
3. Press ENTER to toggle Same Zoom/Focus/Shift between [Yes] or [No].
[Yes] = each layout will use the same zoom/focus/shift settings. The zoom/focus/shift settings of the previous selected layout will
be applied to the next selected layouts.
[No] = each layout will use its own zoom/focus/shift settings. Lens should be calibrated, when using this setting.
4. If [No] is selected, the calibrate lens menu opens. (image 10-62)
Before different zoom/focus/shift setting can be used, the lens should be calibrated. When a lens change has taken place, always
calibrate the lens before using this setting.
5. If you have to calibrate the lens, select Yes and press ENTER to start the calibration.
During the calibration, a message is displayed. This message disappears when the calibration is finished. (image 10-63)

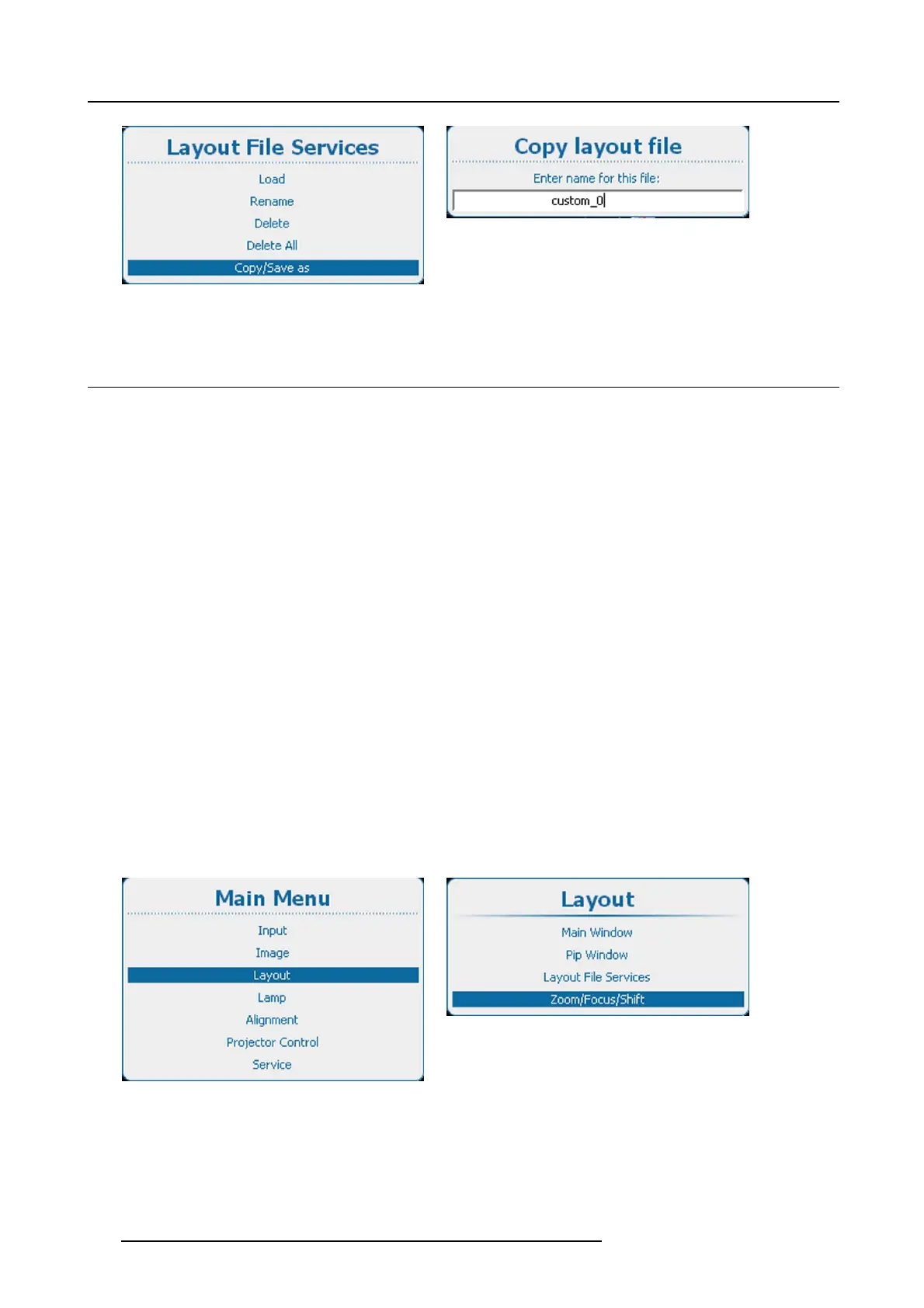

Image 10-59
Main menu, layout
Image 10-60
Layout, Zoom/Focus/Shift
