Barco HDF W series Installation Manual

16. Removal and installation of the projector covers
16.3 Removal of the lamp cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7mmflat screw driver.
How to remove the lamp cover

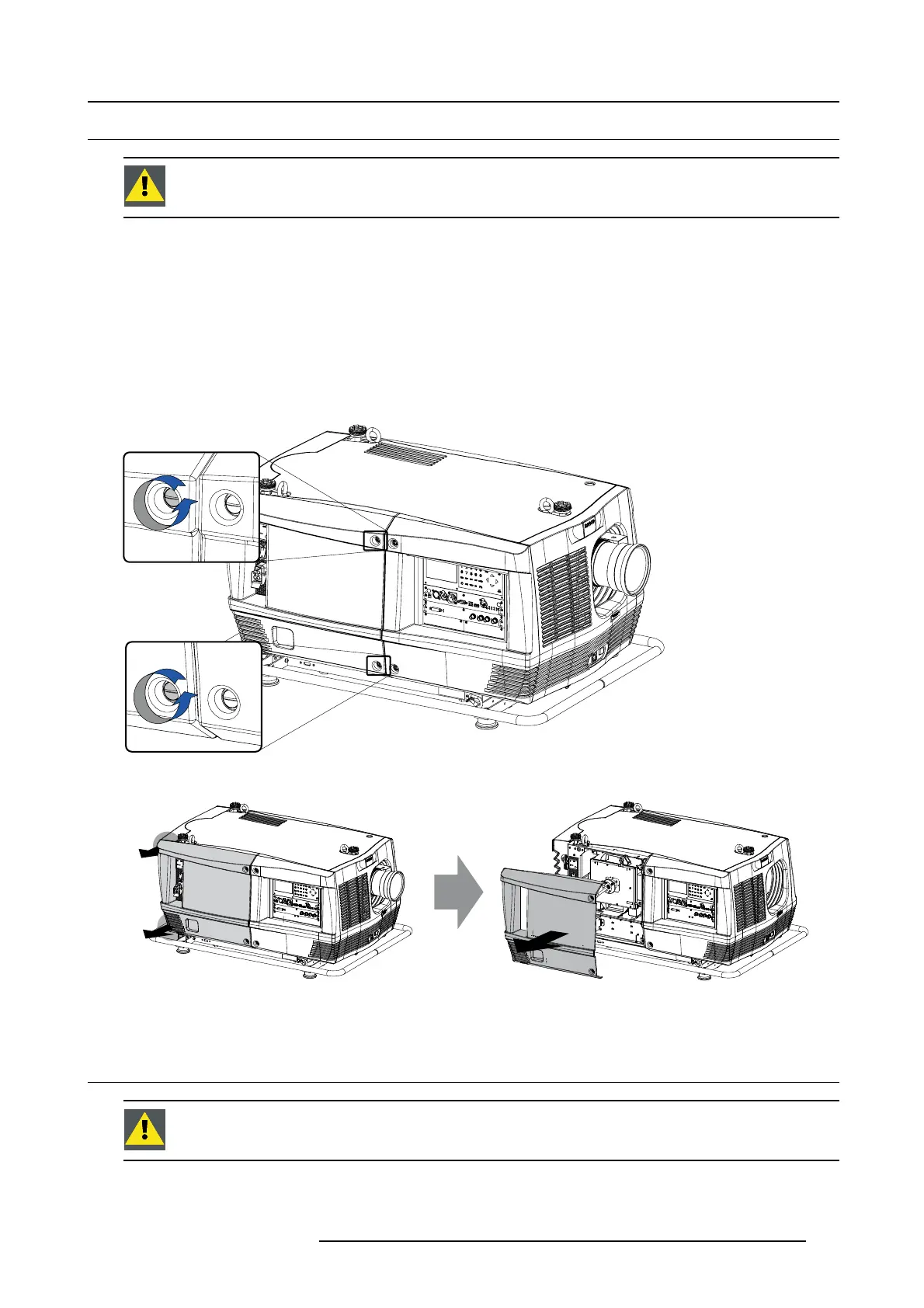

1. Release the two captive screws at the top and bottom right side of the lamp cover, using a flat screw driver. (image 16-5)
2. Remove the lamp cover from the projector as follows:
a) gently pull out the left bottom corner (A) of the lamp cover,
b) then gently pull out the left top corner (B) of the lamp cover,
c) then move the lamp cover away from the projector (C). (image 16-6)
Image 16-5
Captive screws, unlocking
B
A
C
Image 16-6
Lamp cover removal
16.4 Removal of the input cover
WARNING: This procedure may only be performed by qualified technical service personnel.
R5905158 HDF W SERIES 10/07/2012 225
