E. Stacking HDF W series projectors
E. STACKING HDF W SERIES PROJECTORS
General
Three interlocking adapters at the top and at the bottom of the HDF W series projector allows an easy and fast stacking without
using extra tools or accessories.
WARNING: Maximum stack three (3) HDF W series projectors in a table mount configuration.
Maximum stack two (2) HDF W series projectors in a ceiling mount configuration.
Overview
• Stacking HDF W series projectors
• Aligning stacked HDF W series projectors
E.1 Stacking HDF W series projectors
How to stack HDF W series projectors ?
1. Turn in the four feet of the projector you want to stack.

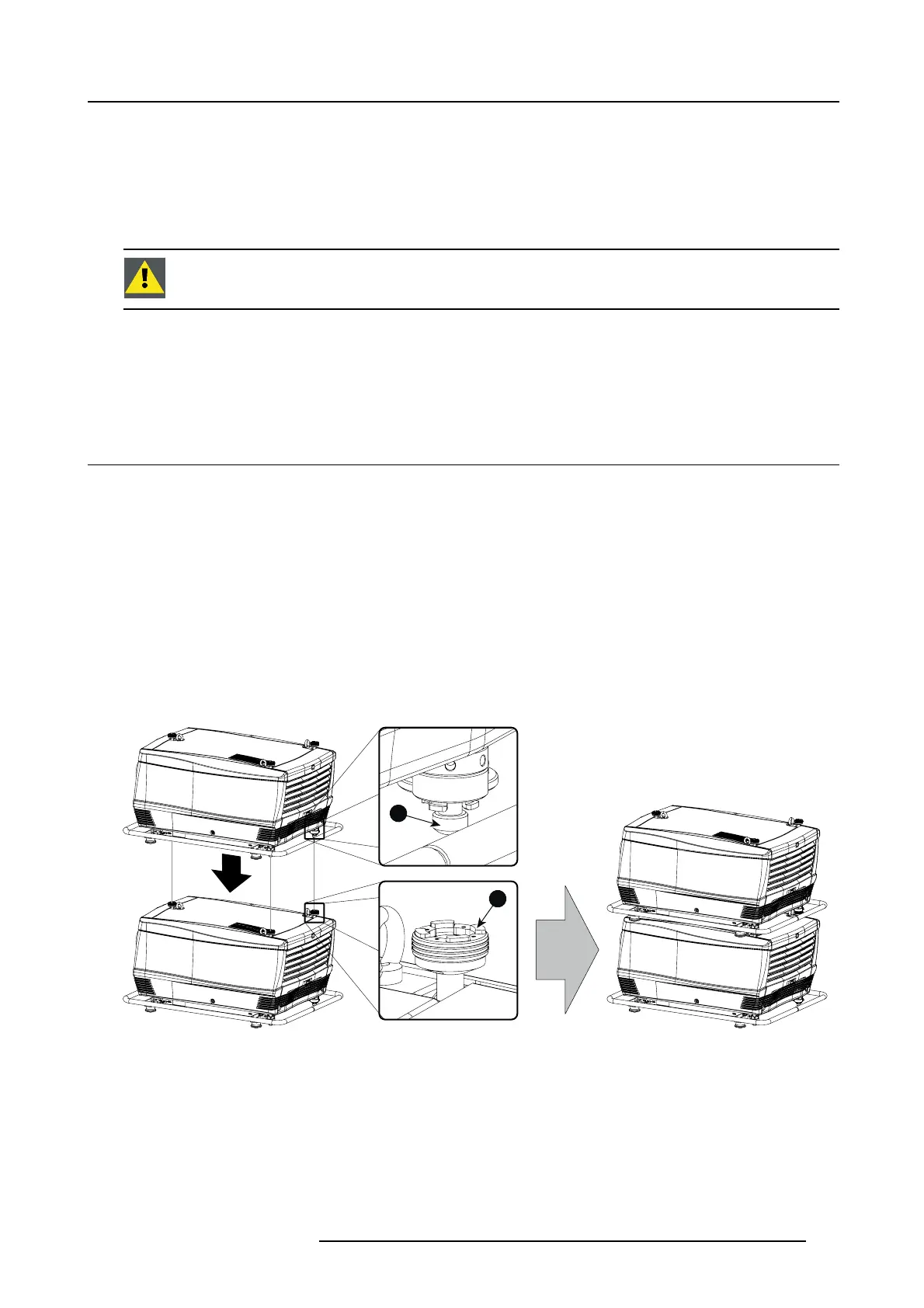

2. Place the projectors on top of each other. Ensure that all three interlocking pins (A) match with their corresponding interlocking
sockets (B). (image E-1)
Tip: In case of stacking pr ojectors for a ceiling mount configuration, first turn the projectors upside down be fore placing the
projectors on top of each other.
3. Attach the two projectors together by closing all three interlocking adapters as illustrated. (image E-2)
4. Are these projectors stacked for a ceiling mount configuration?
If yes, secure the projectors with safety chains as follows:
a) Release the safety hook (H) at both sides of the lowest projector and guide the safety cable around its carrying handle (C) as
illustrated. (image E-3)
b) Guide the safety cable around the carrying handle of the projector above and clasp the safety hook around the safety cable
as illustrated. (image E-4)
A
B
B
A
Image E-1
R5905158 HDF W SERIES 10/07/2012 255
