2. Configurations, requirements and restrictions
Projector Power requirements
HDF W22
200-240VAC, 50-60Hz, 24A at 200 VAC
HDF W26 200-240 VAC, 50-60Hz, 24A at 200 VAC
The power cord required to connect the projector with the power net is delivered with the projector.
Projector weight
Do not underestimate the weight of the HDF W series projector. The projector weights about ±100 kg (±225 lb.) without lens. Be
sure that the pedestal on which the projector has to be installed is capable of handling five (5) times the complete load of the system.
2.2 Unpacking the projector
What has to be done ?
At delivery the projector is packed in a carton box upon a wooden pallet and secured with banding and fastening clips. Furthermore,
to provide protection during transportation, the projector is surrounded with foam. Once the projector is arrived at the installation
site, it has to be removed from the carton box and wooden pallet in a safe manner without damaging the projector.
Necessary tools
• Side cutter.
• 8 mm Allen key.
How to unpack the projector ?

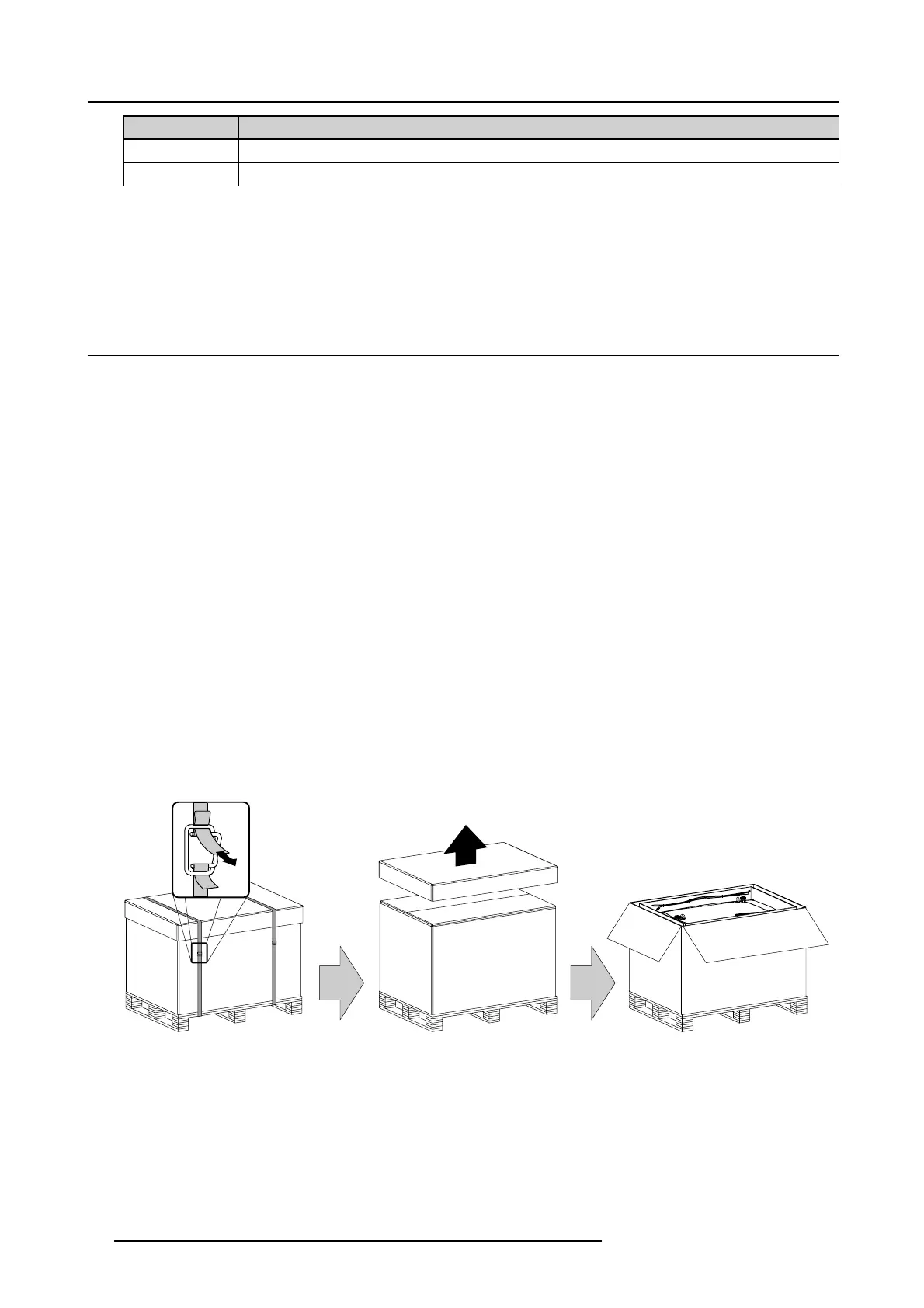

1. Remove the banding around the carton box, by releasing the fastening clips as illustrated, and remove the top cover. (image 2-1)
2. Remove the power cord, which is attached to the packaging with a cable ties, and the two smaller carton boxes, located between
the inner carton sleeve and outer carton box. (image 2-2)
Note: The two smaller carton boxes contain the manuals, the r emote control unit (RCU), two standard batteries size A A and
four rigging clamps for projector suspension.
3. Remove the carton box, the inner carton sleeve and the foam around the projector. See image 2-2.
Note: The pro jector is still attached to a wooden plate, which is detached from the below pallet.
4. Gently turn the projector upside down to gain access to the four bolts, whic
h secure the projector. Note that this wooden plate is
detached from the pallet. (image 2-3)
Tip: Lay a blanket (or the earlier remove d foam) on the floor to protect the projector housing form scratches while turning.
5. Remove the wooden plate from the projector bottom, by releasing the four bolts. Use an 8 mm Allen key. See image 2-3.
6. Gently turn the projector back on its feet.
7. Remove the foam rubber around the carrying handle.
Image 2-1
12 R5905158 HDF W SERIES 10/07/2012
