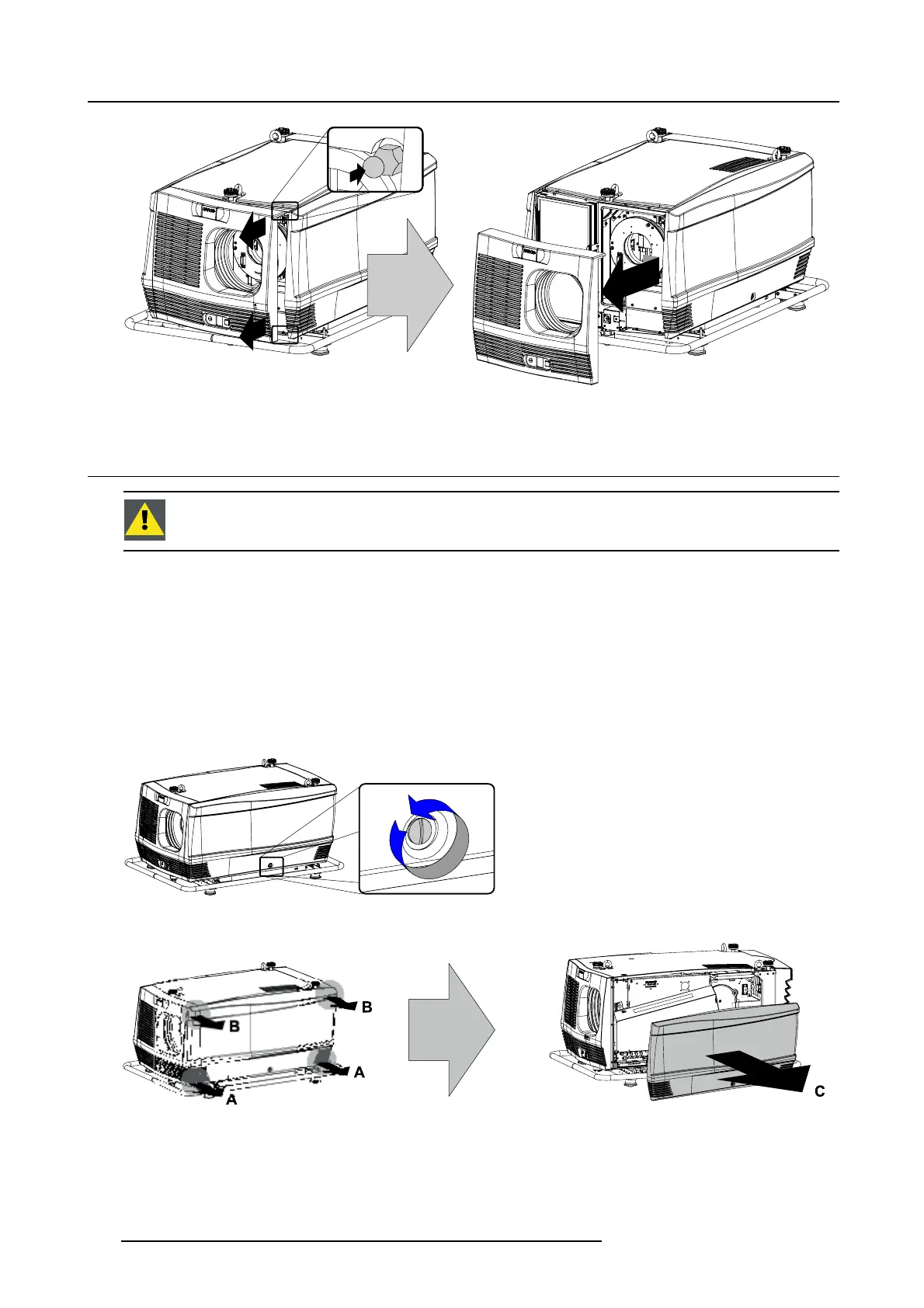

16. Removal and installation of the projector covers
Image 16-2
16.2 Removal of the side cover
CAUTION: Remove the side cover of the projector only in a clean and dust free area. Never remove the side
cover in an area which is subject to airborne contaminants such as that produced by smoke machines or
similar.
Necessary tools
7mmflat screw driver.
How to remove the side cover
1. Release the captive screw at the middle bottom of the side cover, using a flat screw driver. (image 16-3)
2. Remove the side cover from the projector as follows:
a) gently pull out the bottom corners (A) of the side cover,
b) then gently pull out the top corners (B) of the side cover,
c) then move the side cover away from the projector (C). (image 16-4)
Image 16-3
Captive screw
Image 16-4
Cover removal
224 R5905158 HDF W SERIES 10/07/2012
