Barco HDF W series Installation Manual

16. Removal and installation of the projector covers
Necessary tools
7mmflat screw driver.
How to remove the input cover

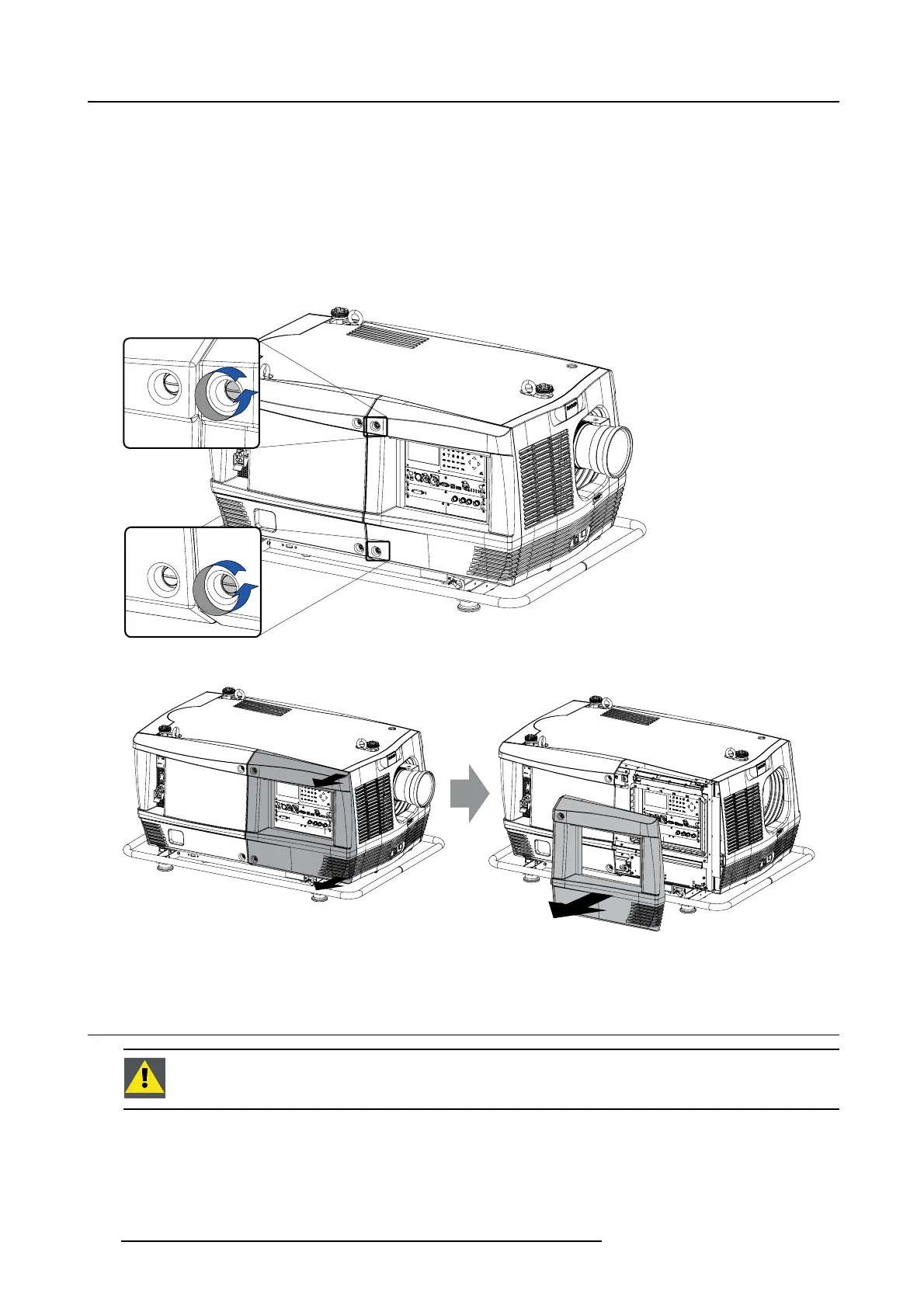

1. Release the two captive screws at the top and bottom left side of the input cover, using a flat screw driver. (image 16-7)
2. Remove the input cover from the projector as follows:
a) gently pull out the right bottom corner (A) of the input cover,
b) then gently pull out the right top corner (B) of the input cover,
c) then move the input cover away from the projector (C). (image 16-8)
Image 16-7
Captive screws input cover
B
A
C
Image 16-8
Input cover removal
16.5 Installation of the front cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7mmflat screw driver.
226
R5905158 HDF W SERIES 10/07/2012
