7. Start up of the adjustment mode

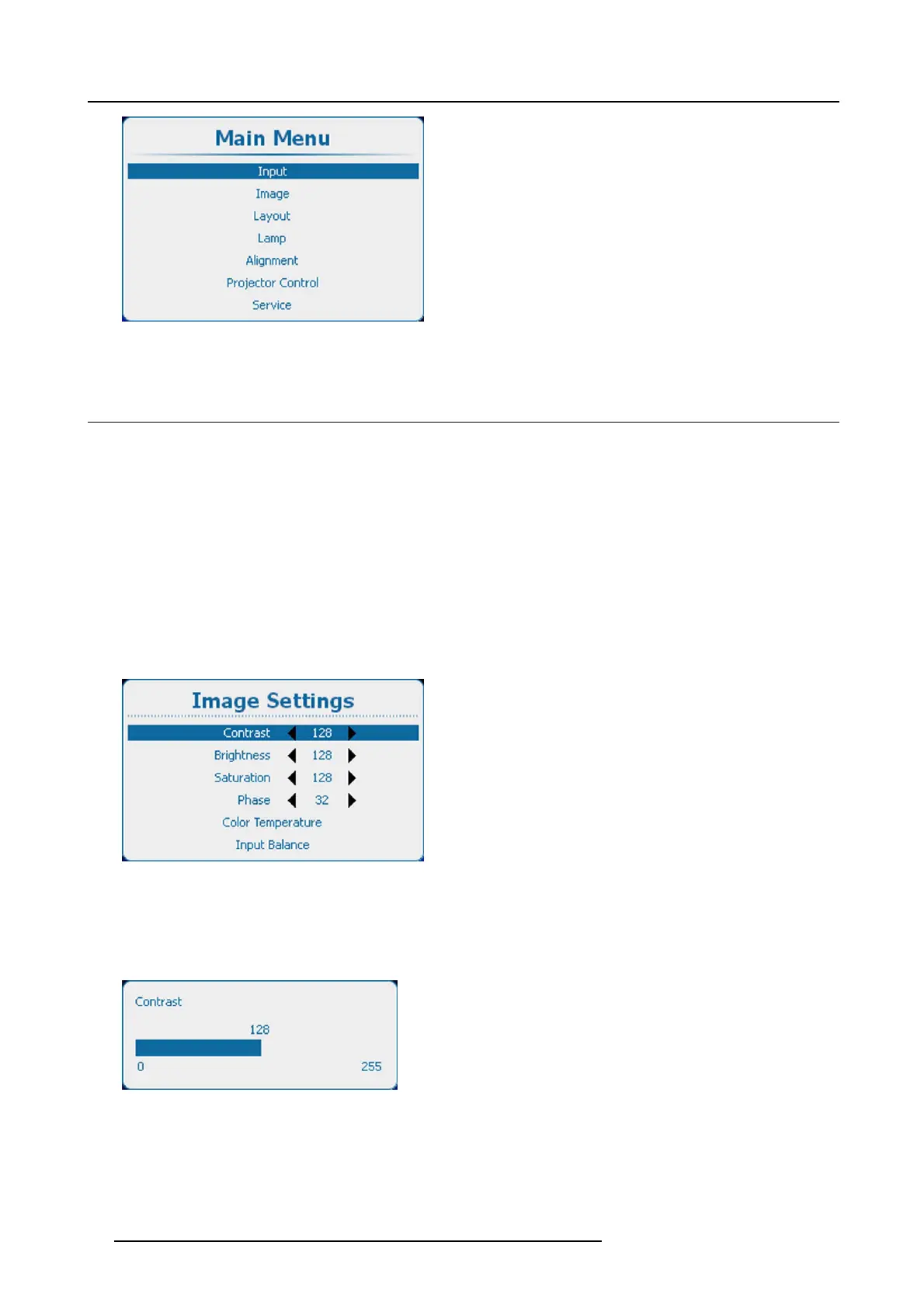

Image 7-1
Main menu
7.4 Navigation and adjustments
How to navigate in the menu structure?
Once in the menu structure, use the or key on the remote control or on the local keypad to scroll through the items in the
displayed menu. The selected item will get a background color. To activate a selected submenu or function, press ENTER.
When on a submenu, to return one step to the parent menu, press EXIT.
To escape the menu structure when on a menu, press MENU.
How to make an adjustment?
With the remote control or the local keypad navigate through the menu structure until the desired item is selected. Press the or
key until the desired item is reached. Press EXIT to nalize the adjustment.
With the local keypad or remote control, press the or key until the desired value (setup) is reached. Press EXIT to nalize the
adjustment.
Direct adjustment within the menu:
Image 7-2
Use the or key to directly adjust the current value.
or,
Via bar scale adjustment :
Once an item is selected, press ENTER to open the bar scale menu.
Image 7-3
Contrast adjustment
Use the or key to adjust the current value.
The bar scale will move accordingly.
Press EXIT to nalize the adjustmen
t.
or,
64
R5905158 HDF W SERIES 10/07/2012
