12. Alignment

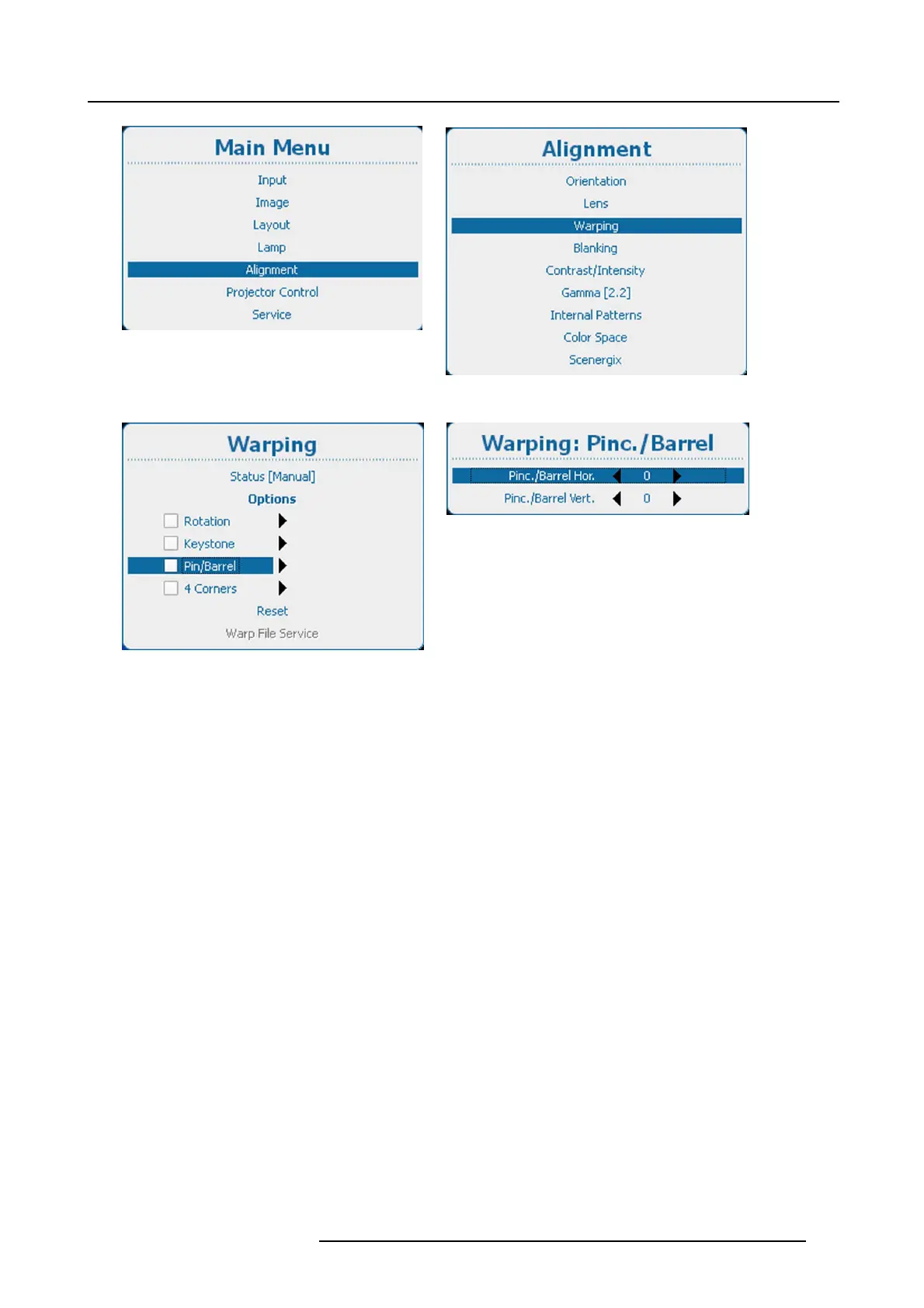

Image 12-38
Main menu, alignment
Image 12-39
Alignment, warping
Image 12-40
Warping, Pin/Barrel
Image 12-41
Pin/Barrel adjustment
12.8.6 4 corners adjustment
What can be done ?
Each corner can be adjusted separately in the X and Y
direction.
How to adjust
1. Press Menu to activate the menus and select Alignment → Warping . (image 12-42, image 12-43)
2. Press ENTER to open the Warping menu.
3. Use the ▲ or ▼ key to select 4 C orners. (image 12-44)
4. Use the ► key to open the 4 corners adjustment menu. (image 12-45)
5. Use the ▲ or ▼ key to select the desired corner and direction.
Use the ◄ or ► key to adjust the value or enter the value with the numeric keys.
Note: Press ENTER to open the bar scale adjustment and use the ▲ or ▼ key or use the ◄ or ► key to adjust the X or Y
direction of a corner adjustment.
R5905158 HDF W SERIES 10/07/2012
145
