Barco HDF W series Installation Manual

10. Layout

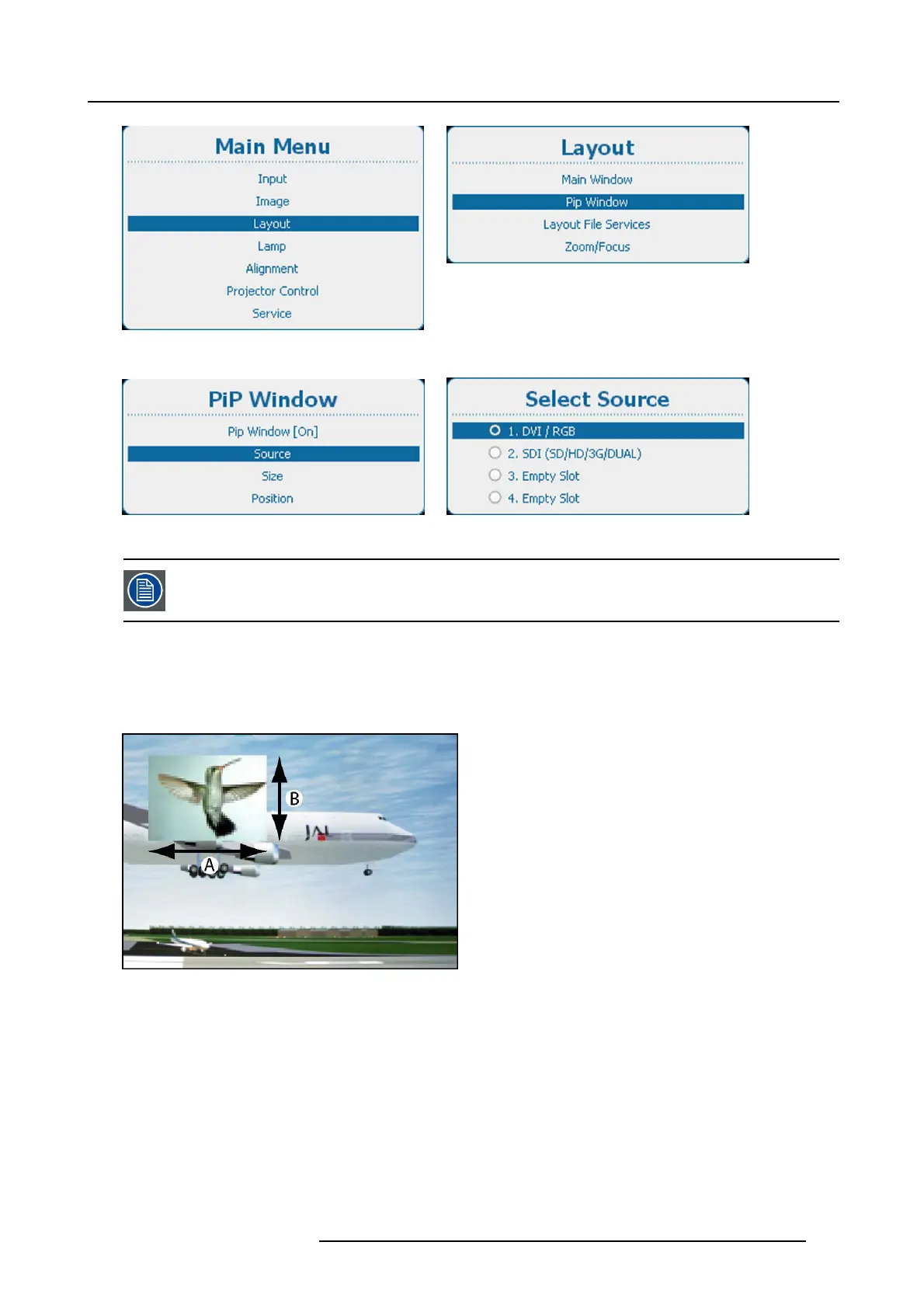

Image 10-21
Main menu, layout
Image 10-22
Layout, PiP Window
Image 10-23
PiP window, source selection
Image 10-24
Select source
PiP source and main source can be the same input.
10.4.4 PiP window, Size
What can be done?
The width and height of the picture in picture window can be changed till the desired dimensions are obtained.
Image 10-25
Size PIP window
AWidthPIPwindow
B Height PIP window
The size of the picture in picture window can be changed with respect to the original aspect ratio of the PIP image.
Remark: During adjustment of the window size, scaling artifacts can be visible.
R5905158 HDF W SERIES 10/07/2012
113
