Barco HDF W series Installation Manual

17. Servicing
F
H
H
H
H
F

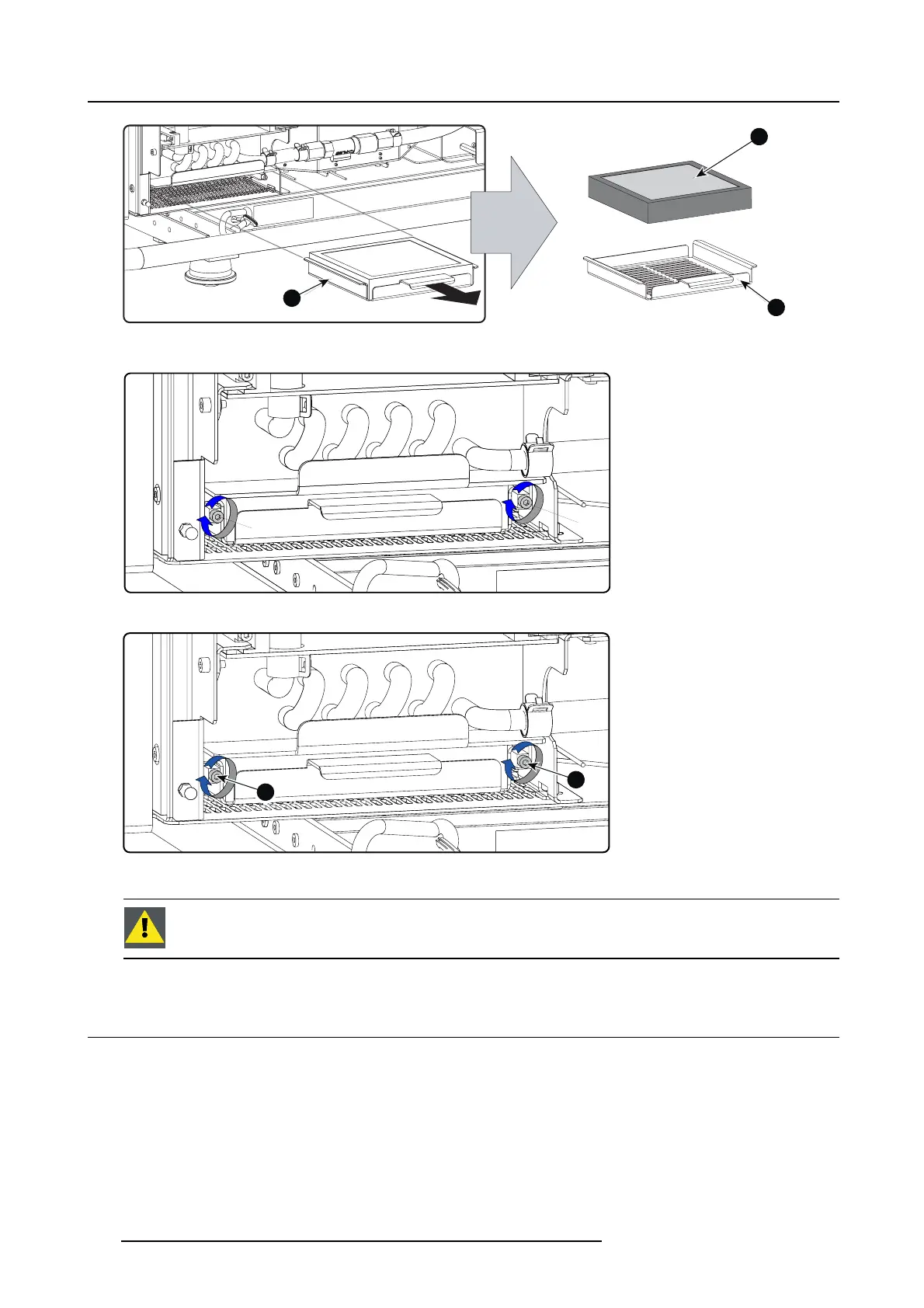

Image 17-5
Bottom filter, remove
A
A
Image 17-6
A
A
Image 17-7
Bottom filter, fixation
CAUTION: Never install a used HEPA fi lter. Always install a new HEPA filter.
17.4 Replacement of the dust filter on the top side
Necessary parts
New HEPA dust fi lter for the top side (R9854480).
How to replace the HEPA dust filter on the top side
1. Remove the side cover of the projector, see "Removal of the side cover", page 224.
2. Remove the filter (F) on the top side by pulling out the filter holder (H) as illustrated. (image 17-8)
3. Place a new HEPA dust fi lter in the filter holder.
Caution: Make sure that the airflow indicated on the dus t filter match with the airflow of the fans.
234
R5905158 HDF W SERIES 10/07/2012
