16. Removal and installation of the projector covers
16. REMOVAL AND INSTALLATION OF THE PROJECTOR
COVERS
About this chapter
Most maintenance and servicing procedures demand removing one or more of the projector covers to gain access to the parts to
maintain or to service. To avoid redundancy, all procedures about cover removing or installing are grouped together in this chapter.
The maintenance and servicing procedures also refer to this chapter if required. The procedur
es in this chapter describe, with
detailed step by step actions and illustrations, how to remove or install the projector covers. Note that some covers may only be
removed by qualied service personnel, see remarks above each procedure.
WARNING: Always switch off the projector and unplug the power cord at the projector side before removing
one of the covers.
16.1 Removal of the front cover
WARNING: This procedure may only be performed by qualied technical service personnel.
Necessary tools
7mmat screw driver.
How to remove the front cover
1. Remove the lens. See "Lens removal", page 25.
2. Remove the rubber dust ring from the lens holder.
3. Release the captive screw at the middle bottom of the front cove
r, using a at screw driver. (image 16-1)
4. Remove the front cover from the projector as follows:
a) standing in front of the projector, pull the right side of the front cover toward you until the latches release (left side is hinged)
b) then slide the front cover to the right to release it from the hinging points. (image 16-2)

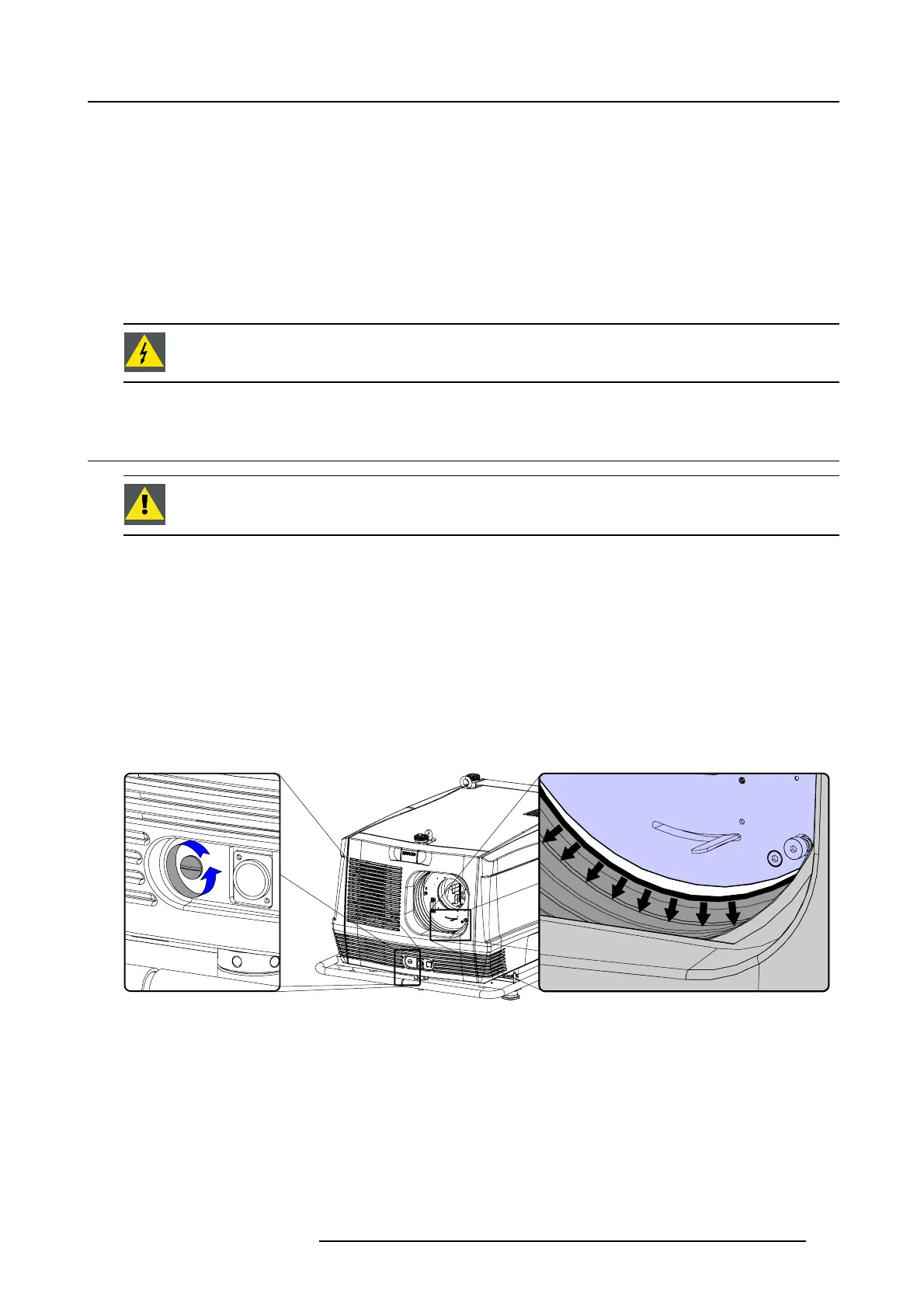

Image 16-1
Captive screw
R5905158 HDF W SERIES 10/07/2012 223
