2. Configurations, requirements and restrictions
2400 mm
1
6
0
0
m
m

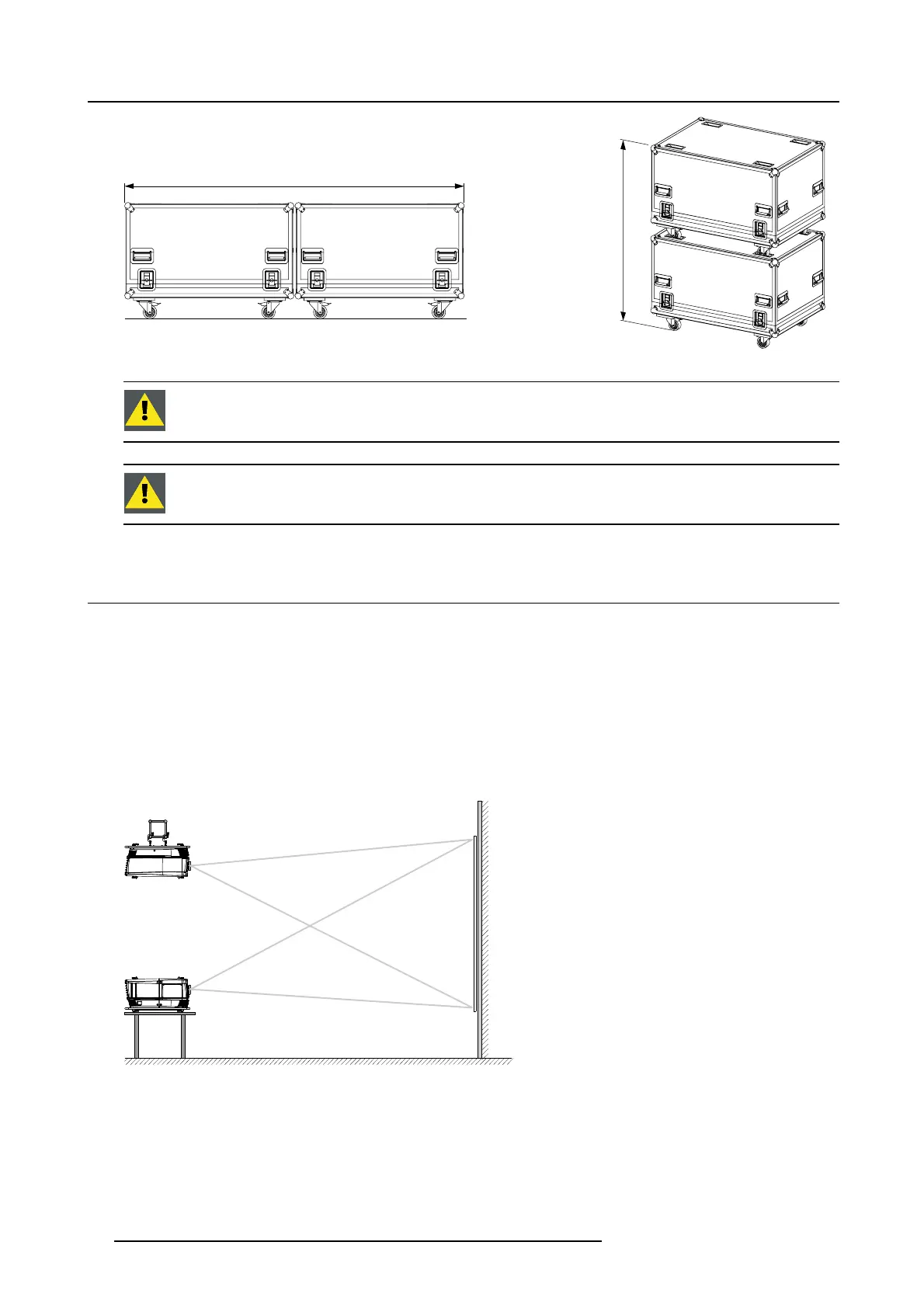

Image 2-5
WARNING: Maximum stack two (2) HDF W series flight cases high. Never higher.
CAUTION: Prior to inserting projector in flight case turn in the adjustable feet and interlocking adapters fully.
2.4 Projector configurations
The different configurations
Depending on the installation the projector can be mounted in different ways, the 4 different configurations are:
1. Front / Table (F/T)
2. Front / Ceiling (F/C)
3. Rear / Table (R/T)
4. Rear / Ceiling (R/C)
Front projection
The projector is installed, either in a table mount or ceiling mount configuration, at the same side of the screen as the audience.
F/C
AUDIENCE
F/T
FLOOR
SCREEN
Image 2-6
Front projection
Rear projection
The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen opposite the audience.
14
R5905158 HDF W SERIES 10/07/2012
