14. Service

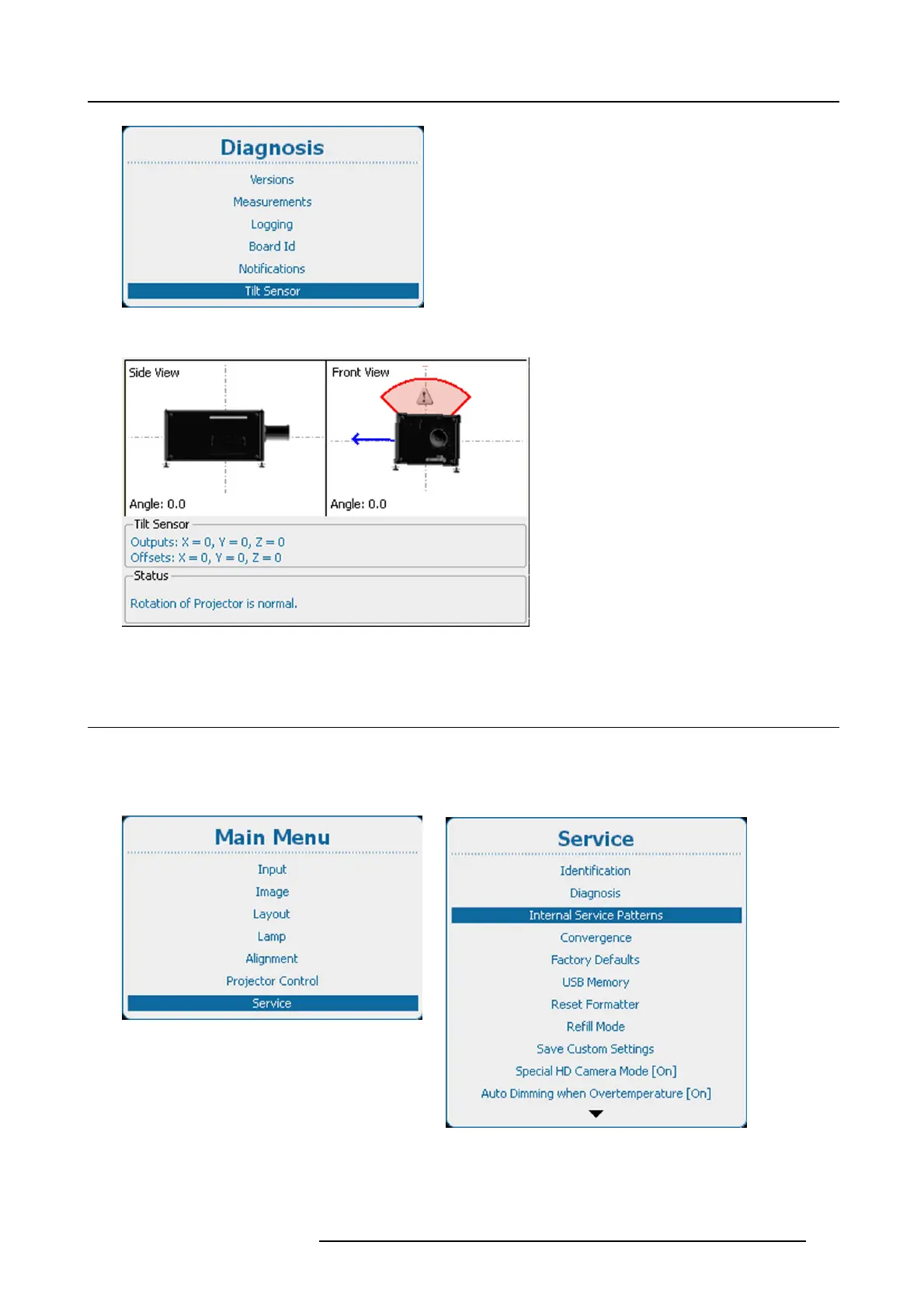

Image 14-31
Diagnosis, tilt sensor
Image 14-32
Tilt sensor output
14.4 Internal Service Patterns
How to select
1. Press Menu to activate the menus and select Service → Internal Service P atterns. (image 14-33, image 14-34, image 14-35)
2. Use the ▲ or ▼ key to select the desired internal service pattern and press ENTER to open a selection menu.
Image 14-33
Main menu, service
Image 14-34
Service, Internal service patterns
