14. Service

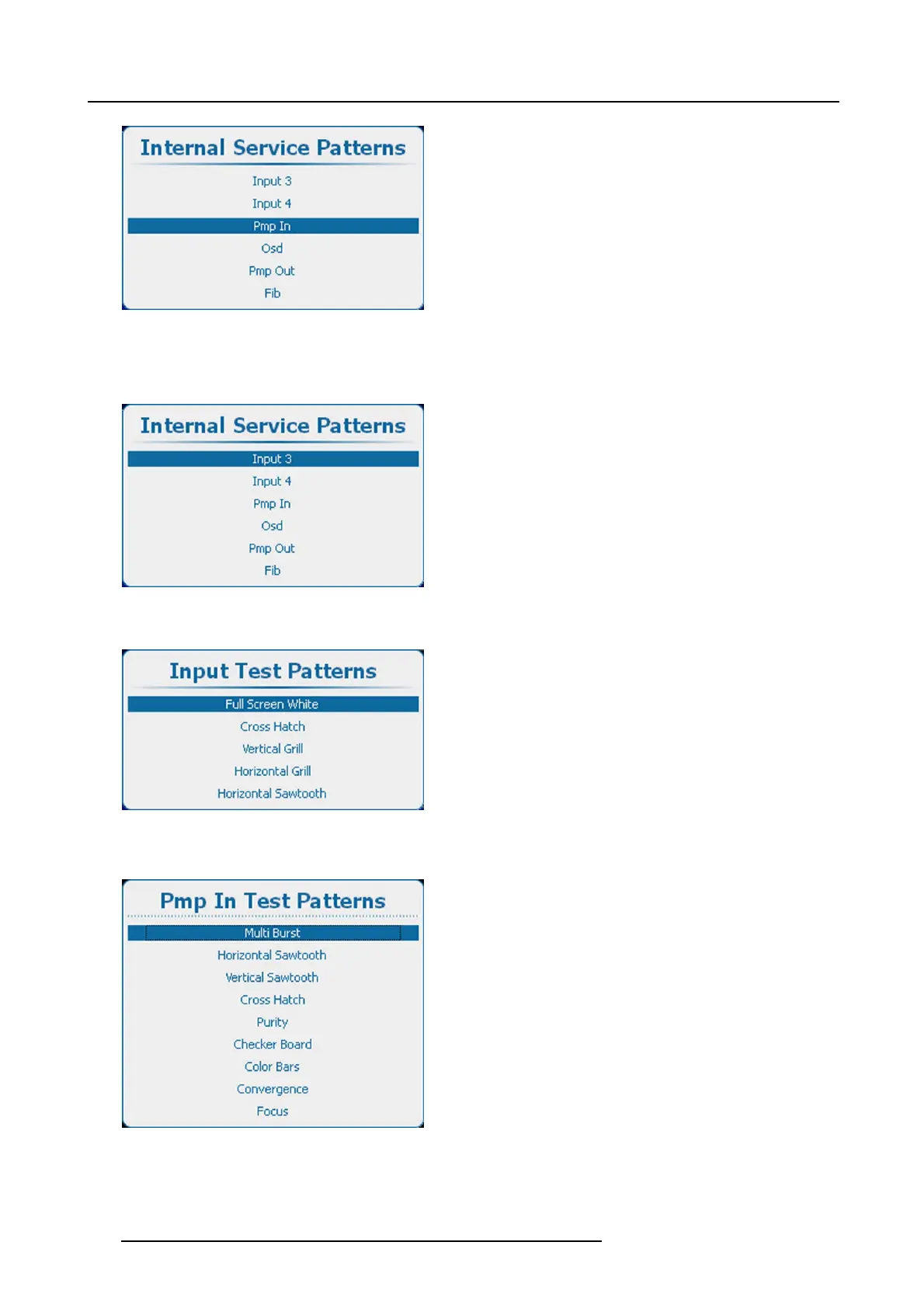

Image 14-35
Internal service patterns, Pmp In
Input patterns
Input items in the Internal Service Patterns menu are only shown when the corresponding slot contains an input board.
Image 14-36
Internal service patterns, input
Press ENTER to display the list of possible patterns.
Image 14-37
Input test patterns
PmpInpatterns
Image 14-38
Pmp In test patterns
To change the options for the selected pattern, use he ► key to open these options. The number of options can change for the
different patterns.
