16. Removal and installation of the projector covers
B
C
A

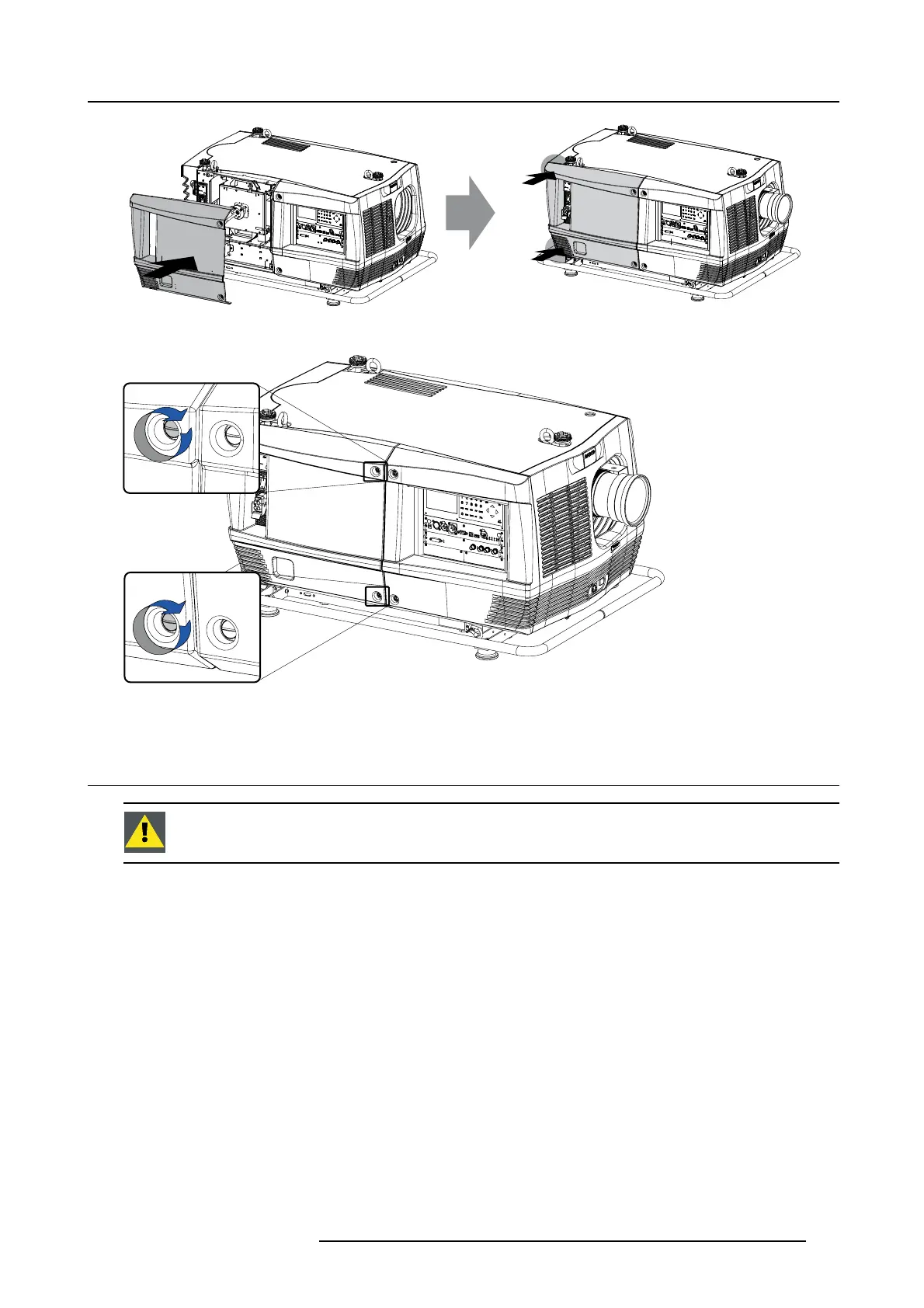

Image 16-14
Lamp cover installaion
Image 16-15
Captive screw locking
16.8 Installation of the input cover
WARNING: This procedure may only be performed by qualified technical service personnel.
Necessary tools
7mmflat screw driver.
How to install the input cover
1. Install the input cover of the projector as follows:
a) Bring the input cover towards its final position (A),
b) then gently push the locking stud at the right top corner (B) into its receiver,
c) then gently push the locking stud at the right bottom corner (C) into its receiver. (image 16-16)
2. Secure the input cover by locking the two captive screws at the left side of the input cover. (image 16-17)
R5905158 HDF W SERIES 10/07/2012
229
