9. Image

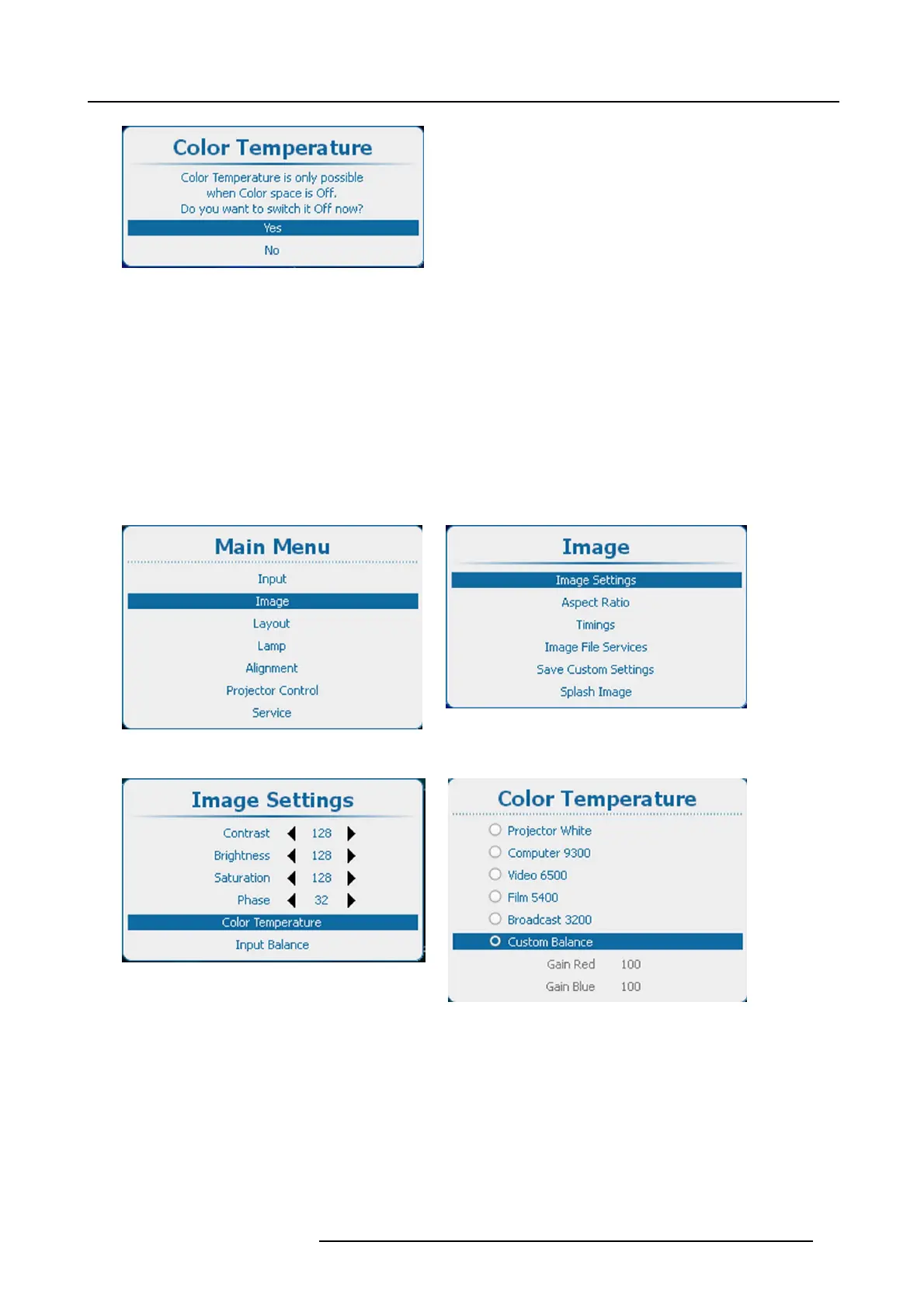

Image 9-23
Color temperature question
9.3.6 Color temperature (custom values)
How to set up
1. Press Menu to activate the menus and select Image → Image Settings → Color Temp erature. (image 9-24, image 9-25, im-
age 9-26)
2. Press ENTER to select.
3. Use the ▲ or ▼ key to select Cu stom Balance.PressENTER to accept. (image 9-27)
4. Select Gain Red and press ENTER.Usethe◄ or ► key to adjust the red gain.
Select Gain Blue and press ENTER. Adjust the blue gain in the same way as the red gain using the ◄ or ► key.
5. When finished, press EXIT to return.
Image 9-24
Main menu, Image
Image 9-25
Image adjustments
Image 9-26
Image settings, color temperature
Image 9-27
Custom color temperature
9.3.7 Input Balance
9.3.7.1 Introduction to Input Balance
Introduction: Unbalanced color signals
When transporting signals, there is always a risk of deterioration of the information contained in the signals.
In case of information contained in the amplitude of the signals which is the case of data color signals (R, G, B),image 9-28 , we are
quite sure that the amplitude of these color signals is subject to alterations.
R5905158 HDF W SERIES 10/07/2012
89
