Overview
• Introduction
• Input source connections
• Communication connections
4.1 Introduction
General
The Input & Communication side of the projector consists of a button module, a dual 3G/HDSDI and DVI-I input as standard input
module and 2 free input slots. The free input slots can be used for optional modules (f.e. 5-cable input).
1
2
3
4
5
6
7
9
10
11
12
13
15
16
8
14

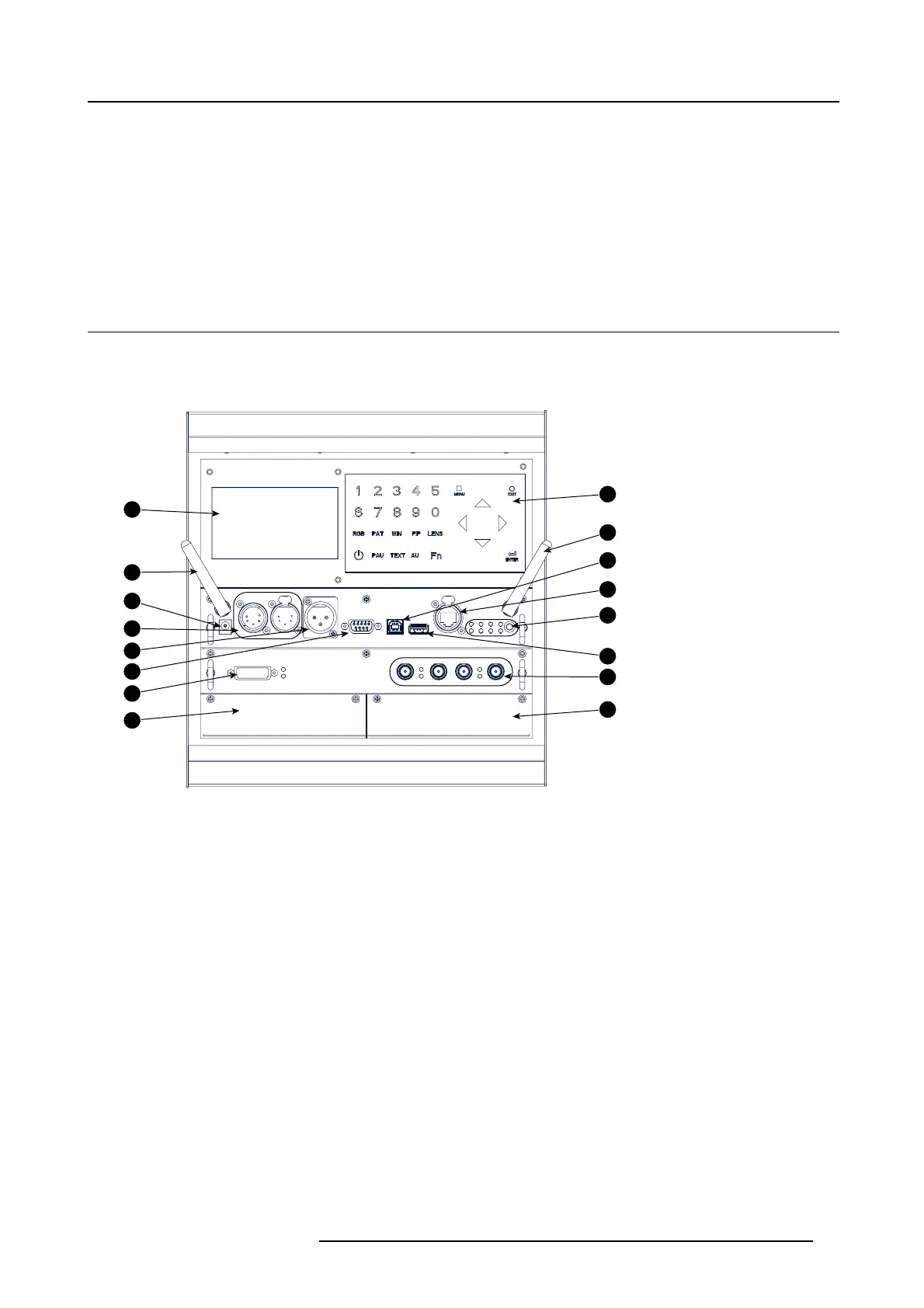

Image 4-1
Input & Communication connections
1 Display
2
Optional antenna for Wifi connection
3 12 V output as power supply to external equipment
4 DMX in - out
5
XLR input port for remote control
6
RS232/RS422 input port
7
Dual Link DVI-I HDCP input
8 Free input slot
9 Button module
10
Optional antenna for GSM
11
RS232/RS422 input port
12 Ethernet port
13
Status and indication LEDs
14
USB port
15
3G/Dual/HDSDI input - output
16 Free input slot
