10. Layout

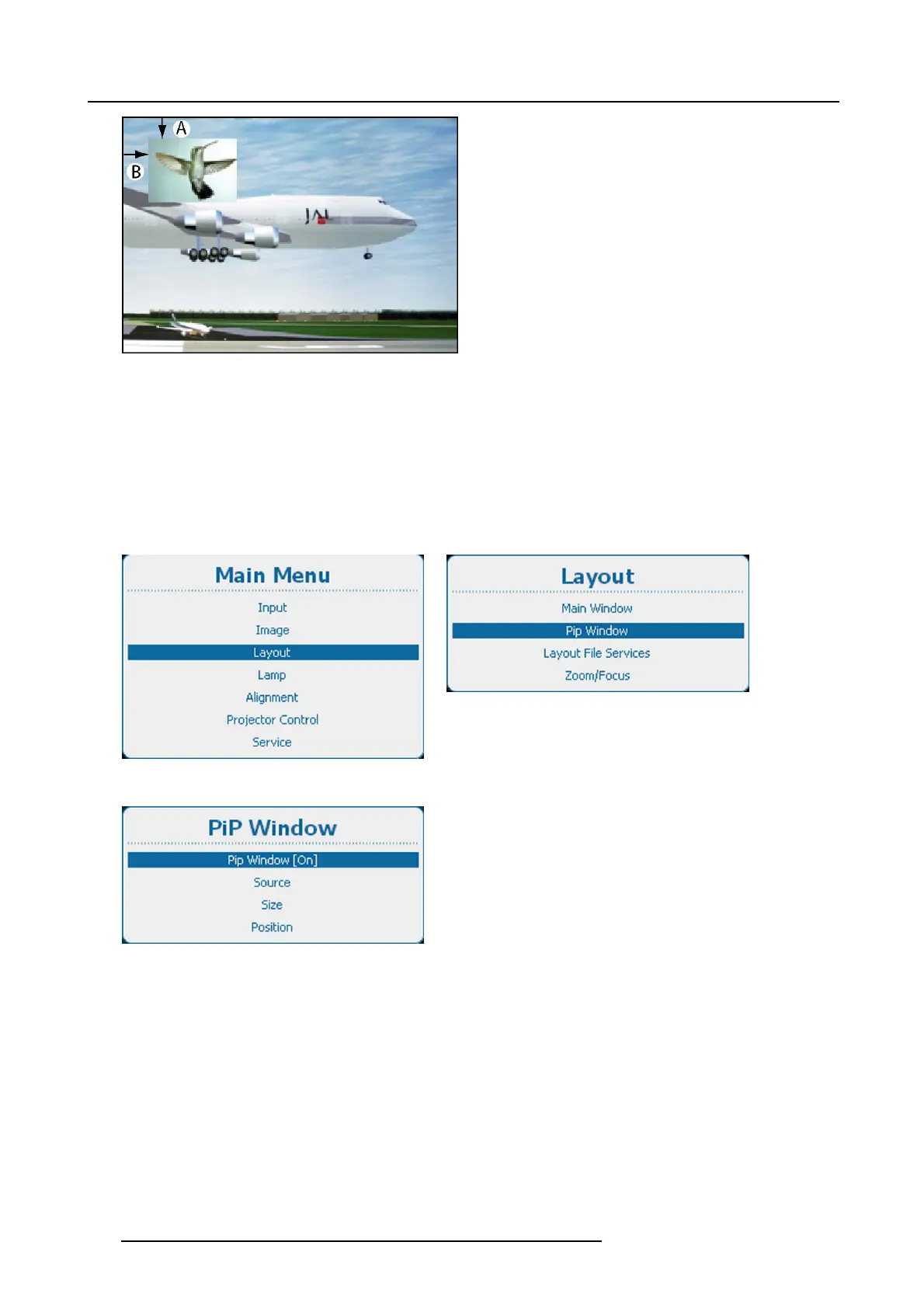

Image 10-17
Position of PiP
A Top position
B Left position
10.4.2 Picture in Picture activation
How to activate
1. Press Menu to activate the menus and select Layout → PiP window → PiP window [On] / [Off]. (image 10-18, image 10-19,
image 10-20)
2. Press ENTER to toggle between [On] or [Off].
Image 10-18
Main menu, layout
Image 10-19
Layout, PiP Window
Image 10-20
PiP window, activation
10.4.3 PiP window, source selection
How to select
1. Press Menu to activate the menus and select Layout → PiP window → Source. (image 10-21, image 10-22, image 10-23)
2. Press ENTER to select.
The Sele ct Source window opens. (ima
ge 10-24)
3. Use the ▲ or ▼ key to select the desired source and press ENTER.
The radio button of the selected source is checked and the source is linked with the PiP window.
112
R5905158 HDF W SERIES 10/07/2012
