9. Image

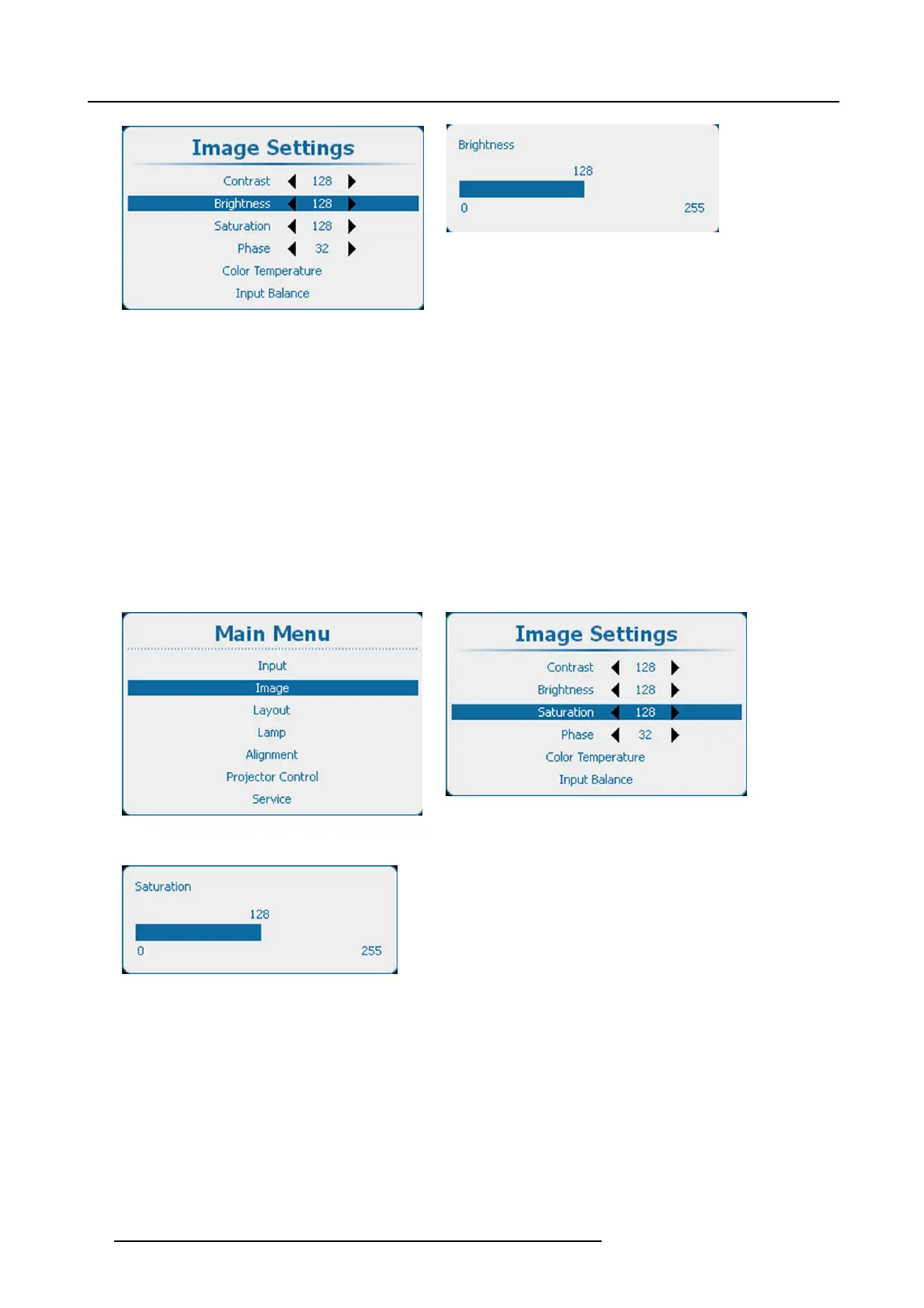

Image 9-9
Image settings, brightness
Image 9-10
Brightness adjustment
9.3.3 Saturation
About (color) saturation
The saturation function is used to adjust the color saturation levels.
Saturation adjustment can be done with the Saturation key on the RCU or via the menu structure.
How to adjust
1. Press Menu to activate the menus and select Image → Image Settings → Saturation. (image 9-11, image 9-12)
2. Press ENTER to select. (image 9-13)
3. To change the value directly in the Image Settings window, use the ◄ or ► key or a numeric key 0-9, to adjust as a % of the full
range.
To adjust via the bar scale menu, press ENTER to display the Saturation menu and adjust with the ◄ or ► key. Press ENTER
again to enter the value directly with the numeric keys. Press EXIT to return to Image Settings menu.
Image 9-11
Main menu, Image
Image 9-12
Image settings, saturation
Image 9-13
Saturation adjustment
9.3.4 Phase
About Phase adjustment
When displaying computer patterns or graphics (RGB or YUV signals) which are very detailed (tilting, vertical stripes, etc. ), jitter
in picture (mis-sampling) may occur, causing horizontal stripes in portions of the screen. When this jitter occurs, adjust ’Phase’ for
optimum image.
86
R5905158 HDF W SERIES 10/07/2012
