Barco HDF W series Installation Manual

6. Quick set up adjustment
6. QUICK SET UP ADJUSTMENT
Overview
• Text boxes ON or OFF
• Quick Lens Adjustment via LENS key
• Direct Lens Adjustment (RCU)
• Quick picture in picture
• Quick language selection
6.1 Text boxes ON or OFF
Text toggle function
The on-screen text boxes can be switched OFF so that an adjustment during the operation of the projector is not visible on the
screen. The adjustment indication remains visible on the local LCD screen.
1
2
3
4
5
6
7
89
0
MENU
EXIT
ENTER
RGB
STBY
PAUSE TEXT
PATTERN
WINDOW
PIP
LENS
AUTO
FN
MENU
EXIT
ENTER
PAUSE
TEXT
PHASE
LENS

5
*
%
3
$
7
7
(
5
1
3
,
3
:
,
1
'
2
:
$
8
7
2

,
0
$
*
(
1
1

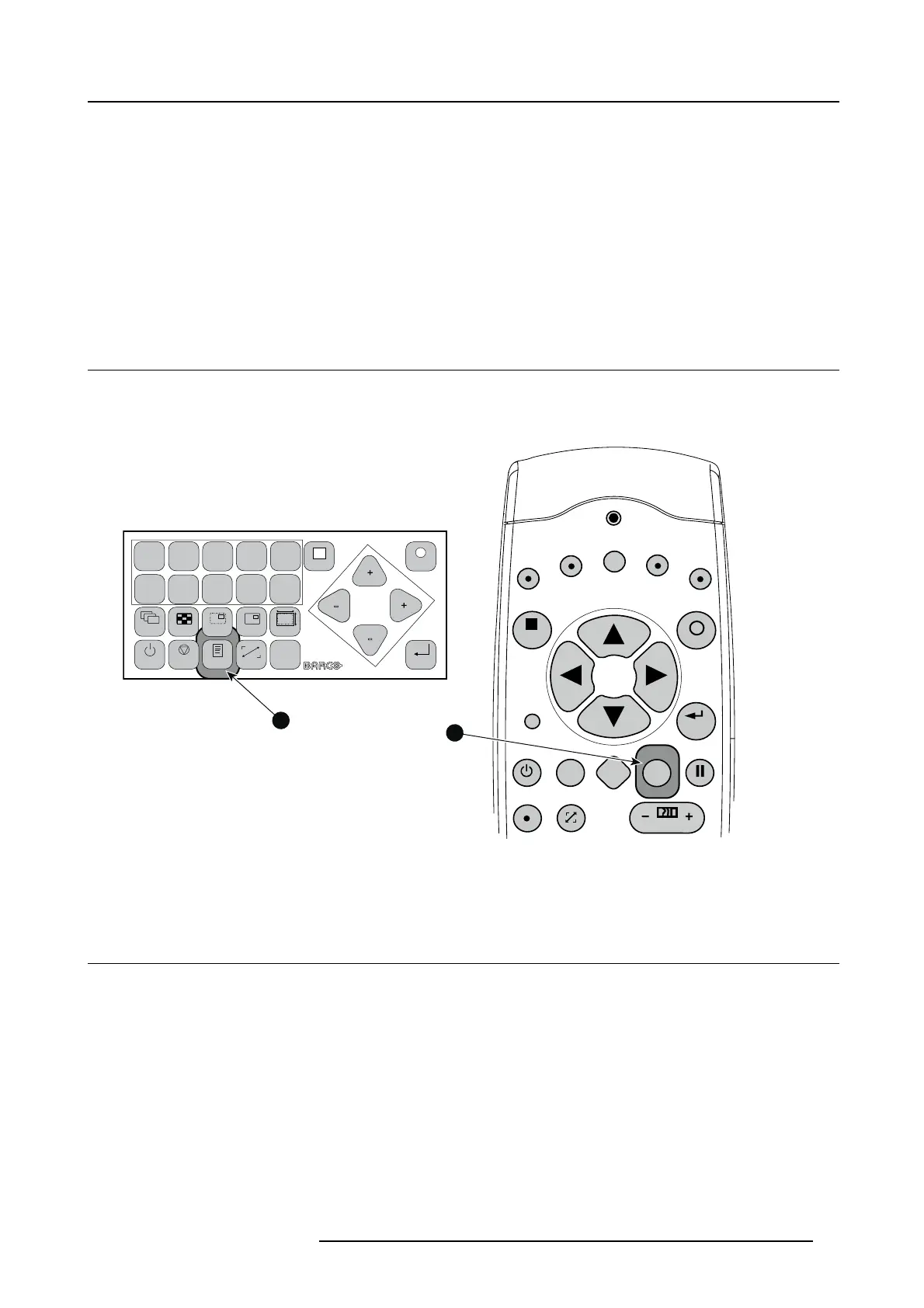

Image 6-1
Text button
To toggle Text ON or OFF, press the TEXT key on the remote control or local keypad.
6.2 Quick Lens Adjustment via LENS key
Quick zoom/focus adjustment
1. Press the LENS key on the remote con
trol or local keypad to open the Zoom /Focus A djustment menu. (image 6-2, image 6-3)
2. Use the ▲ or ▼ key to zoom and ◄ or ► key to focus the image.
3. When finished, press EXIT key to return or ENTER to continue to the shift adjustment.
R5905158 HDF W SERIES 10/07/2012 57
