Barco HDF W series - Front XLR Output Voltage Control

13. Projector Control

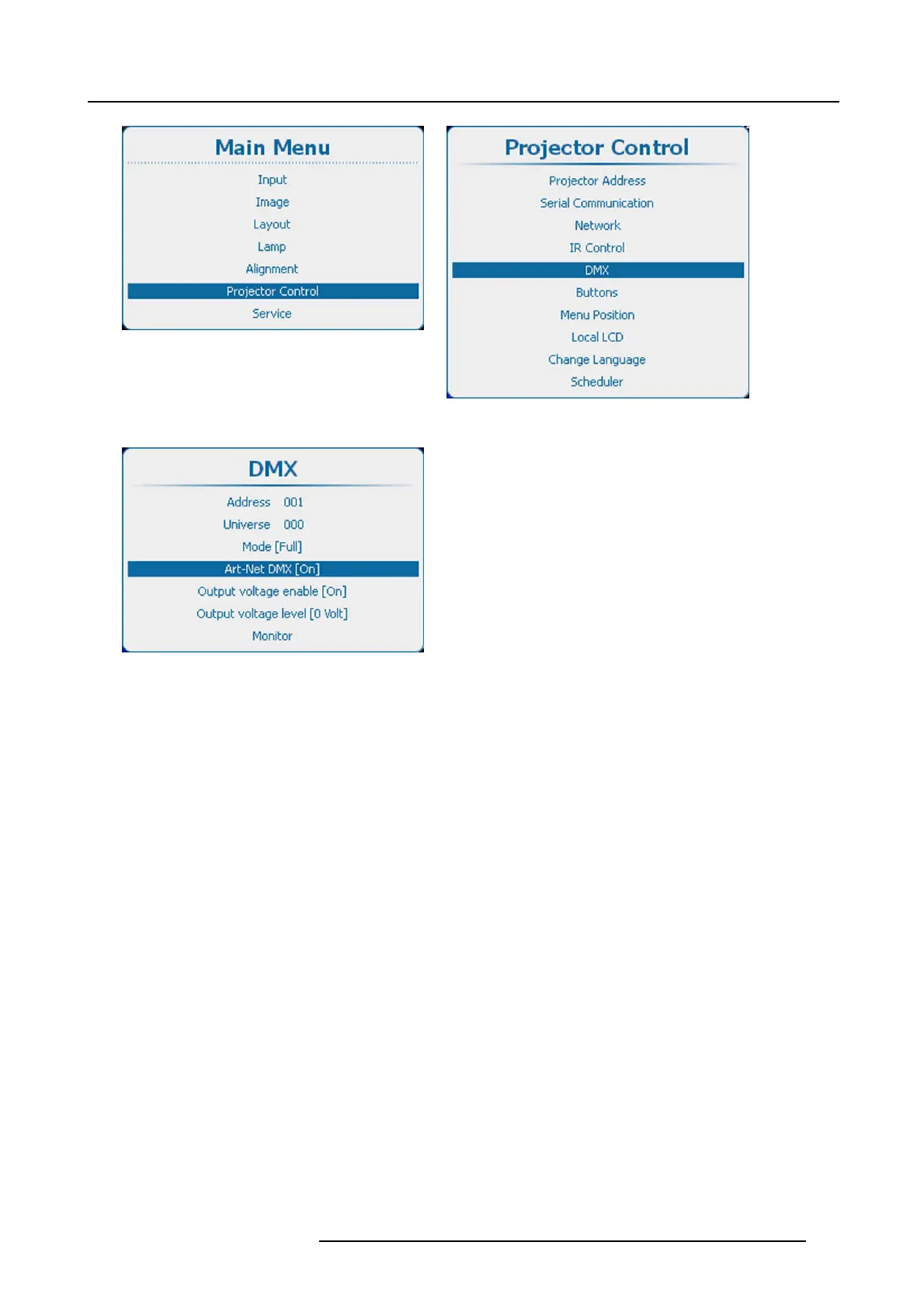

Image 13-72
Main menu, projector control
Image 13-73
Projector control, DMX
Image 13-74
DMX Art-Net activation
13.7.5 Front XLR output voltage control
What can be done ?
The output voltage on the front XLR connector can be enabled or disabled.
The output voltage level can be set to 0V, 9V, 12V or 24V.
DMX Art-Net can also enable the output voltage on the front XLR connector. To avoid that per accident a voltage is activated via
DMX Art-Net, set level to 0 V
How to enable or disable
1. Press Menu to activate the menus and select Projector Control → DMX → Output v oltage enable. (image 13-75, image 13-76,
image 13-77)
2. Press ENTER to toggle between [On ] and [Off].
[On] : Front XLR Output voltage enabled.
[Off] : Front XLR Output voltage disabled.
