Barco HDF W series Installation Manual

13. Projector Control

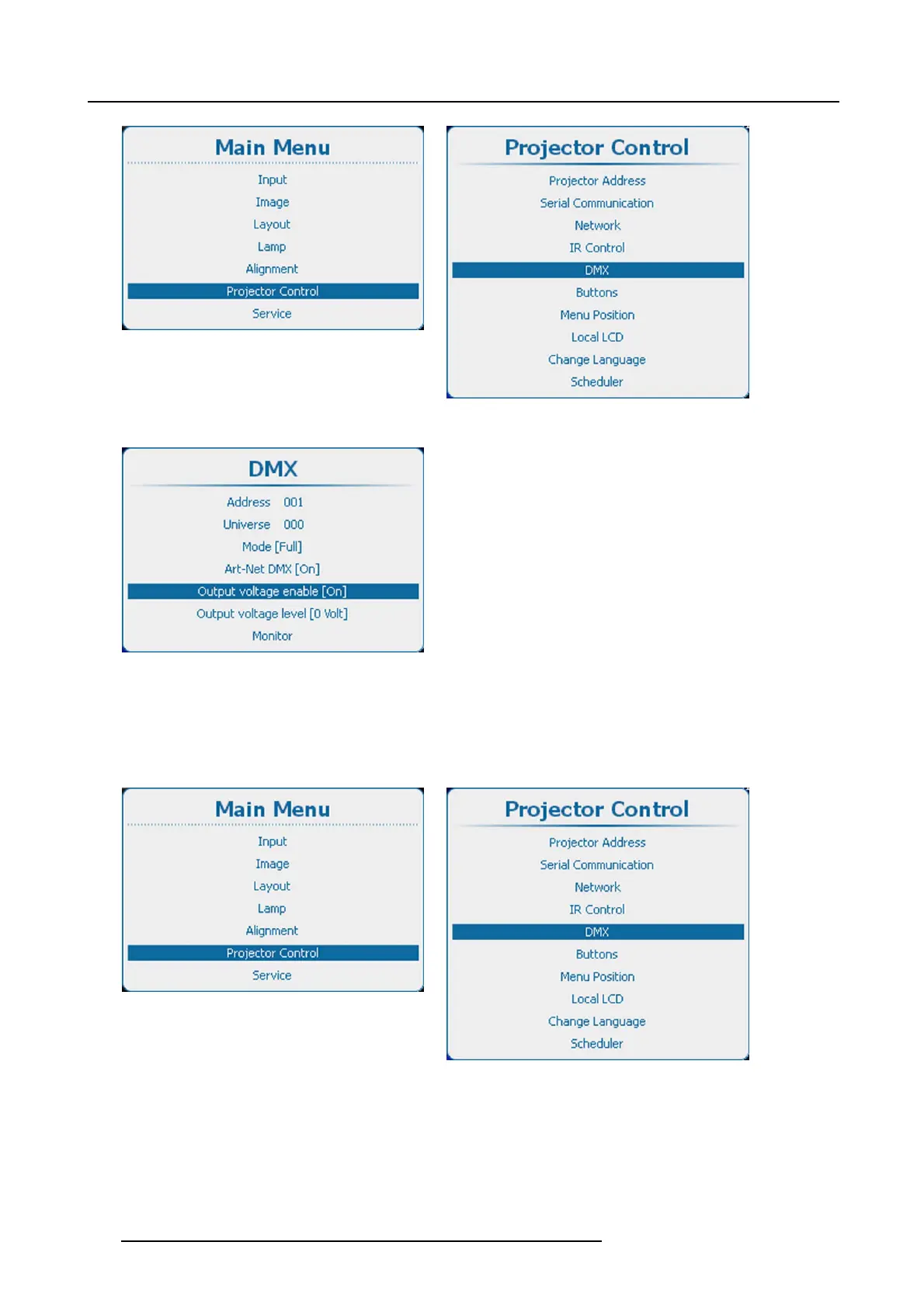

Image 13-75
Main menu, projector control
Image 13-76
Projector control, DMX
Image 13-77
Front XLR Output voltage enable
Output voltage level setup
1. Press Menu to activate the menus and select Projector Control → DMX → Output voltage level. (image 13-78, image 13-79,
image 13-80)
2. Press ENTER to toggle between [0 Volt], [9 Volt], [12 Volt] and [24 Volt].
Image 13-78
Main menu, projector control
Image 13-79
Projector control, DMX
184 R5905158 HDF W SERIES 10/07/2012
