8. Input
8.2 Slot Module Type
Overview
• About Input Setup
• Input configuration
• DVI - RGB input
• SDI input
• 5 cable input
8.2.1 About Input Setup
Overview
Each input module must be configured before these module can be used. This configuration is necessary so that the projector knows
which type of signal is connected to its input.
The projector has 4 input slots. Slot 1 and 2 is fi lled up by default with a DVI and Dual SDI input. Slot 3 and 4 can be filled up with
optional input modules. Identical modules are allowed.
8.2.2 Input configuration
How to change?
1. Press Menu to activate the menus and select Input → S lot modu le type.
2. Press ENTER.
The slot overview window is displayed with the actual situation filled out.
3. Use the ▲ or ▼ key to select a slot.

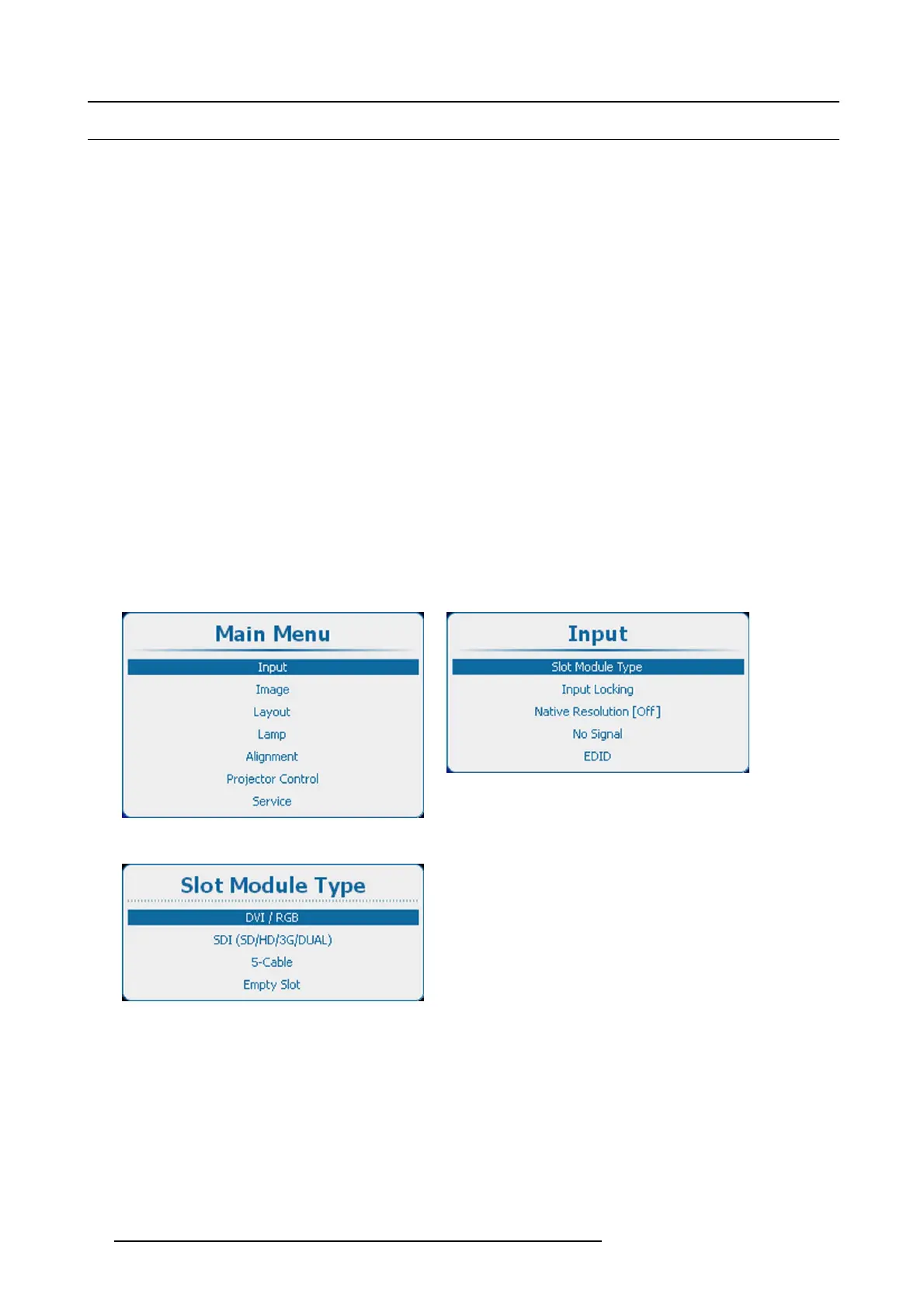

Press ENTER to open the selection menu which will be different from input type to input type. (image 8-1, image 8-2, image 8-3)
Image 8-1
Main window
Image 8-2
Input window
Image 8-3
Slot module type
8.2.3 DVI - RGB input
How to select
Select DVI / RGB and press ENTER to open the select
ions
68
R5905158 HDF W SERIES 10/07/2012
