Barco HDF W series Installation Manual

12. Alignment

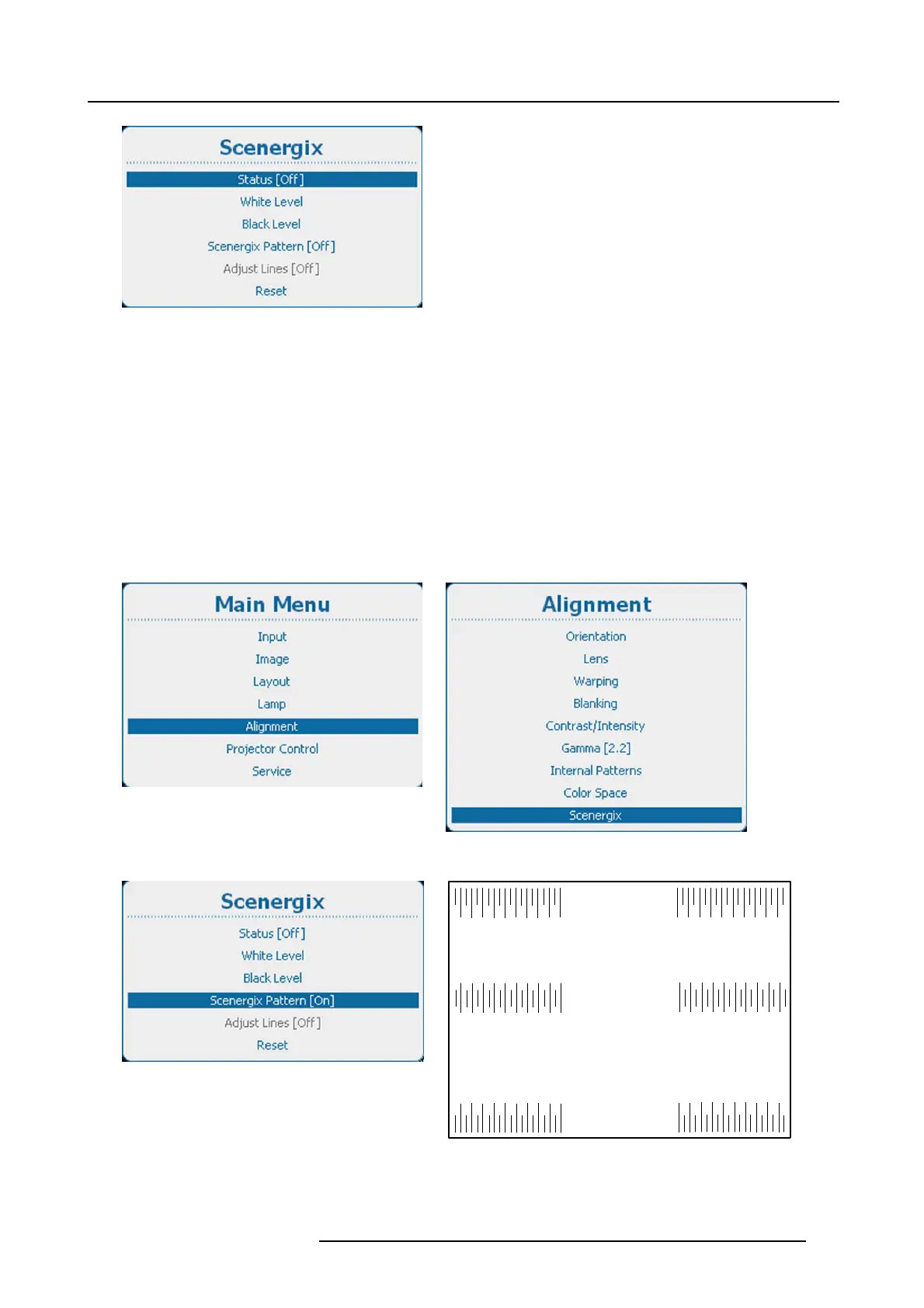

Image 12-73
Scenergix, status
12.14.4 Scenergix pattern
What can be done?
To make the Scenergix adjustment more easy, an internal pattern can be displayed.
How to select
1. Press Menu to activate the menus and select Alignment → Scenergix → Scenergix Pattern. (image 12-74, image 12-75, im-
age 12-76)
2. Press ENTER to toggle between [On] or [Off].
[On] : Internal scenergix pattern is displayed.
[Off] : no scenergix pattern is displayed. (image 12-77)
Image 12-74
Main menu, alignment
Image 12-75
Alignment, Scenergix
Image 12-76
Scenergix, pattern activation
10509013017021025029033037010 50 90 130 170 210 250 290 330 370
10
50 90 130 170 210 250 290330 370
10
5090130170210250290330370
40 80 120 160 200240 280 320 360 400
4080120160200240280320360400
Image 12-77
Scenergix pattern
R5905158 HDF W SERIES 10/07/2012 155
