14. Service

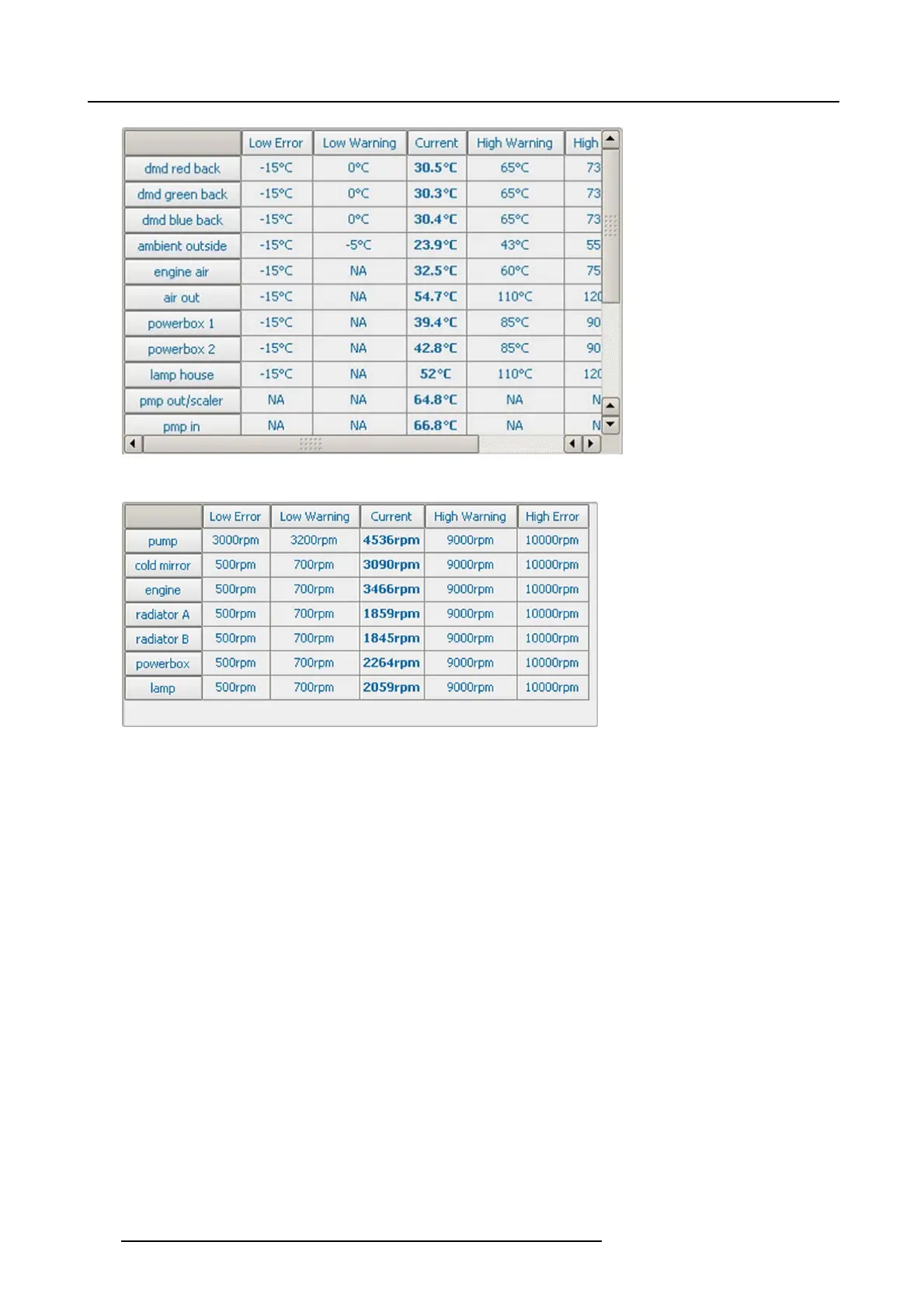

Image 14-13

Overview temperatures

Image 14-14

Overview fan speeds

14.3.3 Logging

What can be done?

Projector hosts two log ﬁles: one managed bythe Main controller and one speciﬁc for the Lamp power supply.

How to display the logging

1. Press Menu to activate the menus and select Service → Diagnosis → Logging. (image 14-15, image 14-16, image 14-17, im-

age 14-18)

2. Use the ▲ or ▼ key to select Main C o ntroller to get a logging of the main controller or to select Lamp Power Supply to get a

logging of the lamp power supply. (image 14-19, image 14-20)

202

R5905158 HDF W SERIES 10/07/2012
