12. Alignment

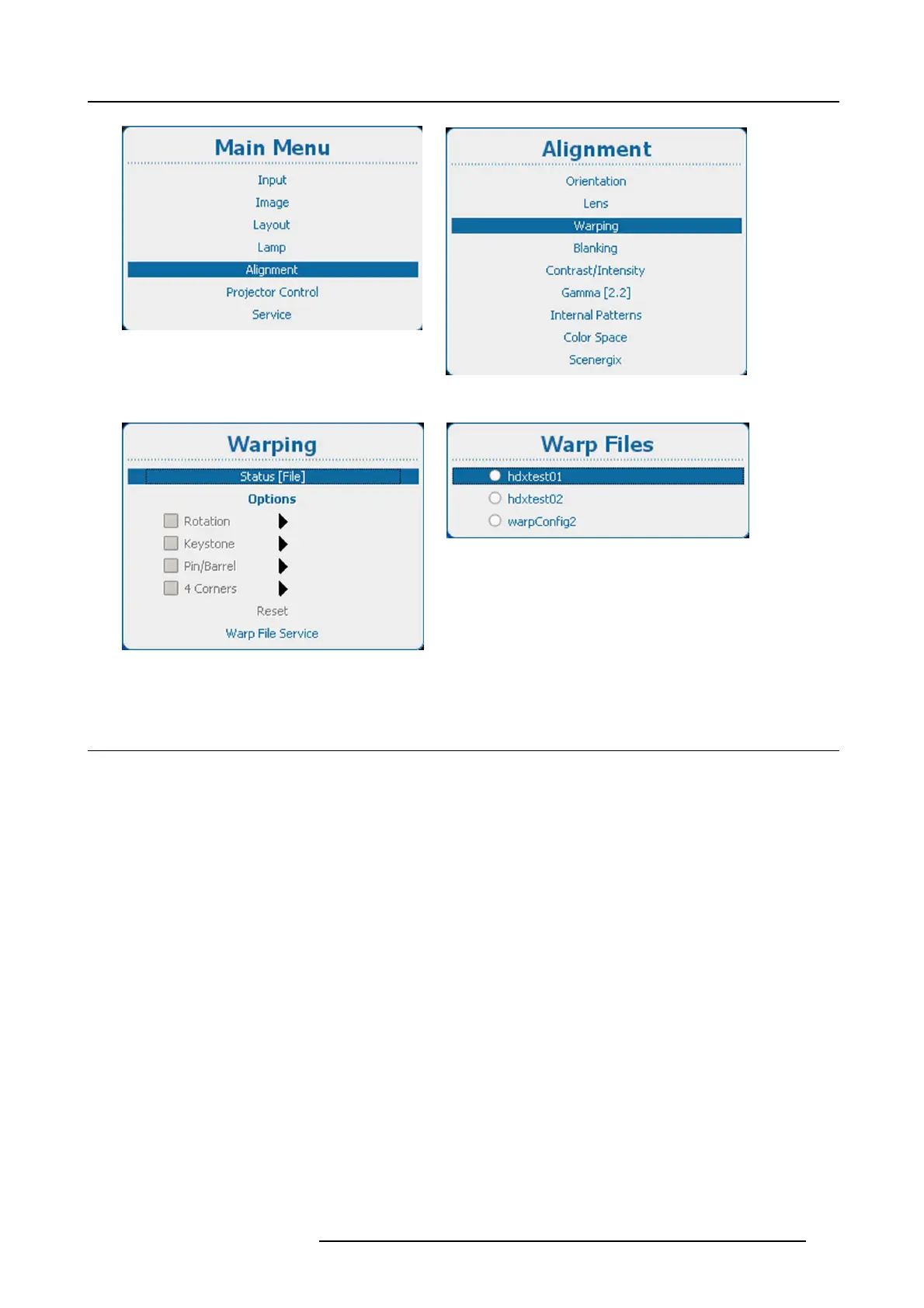

Image 12-46

Main menu, alignment

Image 12-47

Alignment, warping

Image 12-48

Warp ﬁle service

Image 12-49

List of warp ﬁles

12.9 Blanking adjustment

What can be done ?

Blanking adjustments affect only the edges of the projected image and are used to frame the projected image on to the screen and

to hide or black out unwanted information (or noise). A ’0’ on the bar scale indicates no blanking.

Which blanking adjustments are available ?

• top blanking

• bottom blanking

•leftblanking

• right blanking

R5905158 HDF W SERIES 10/07/2012

147
