10. Layout

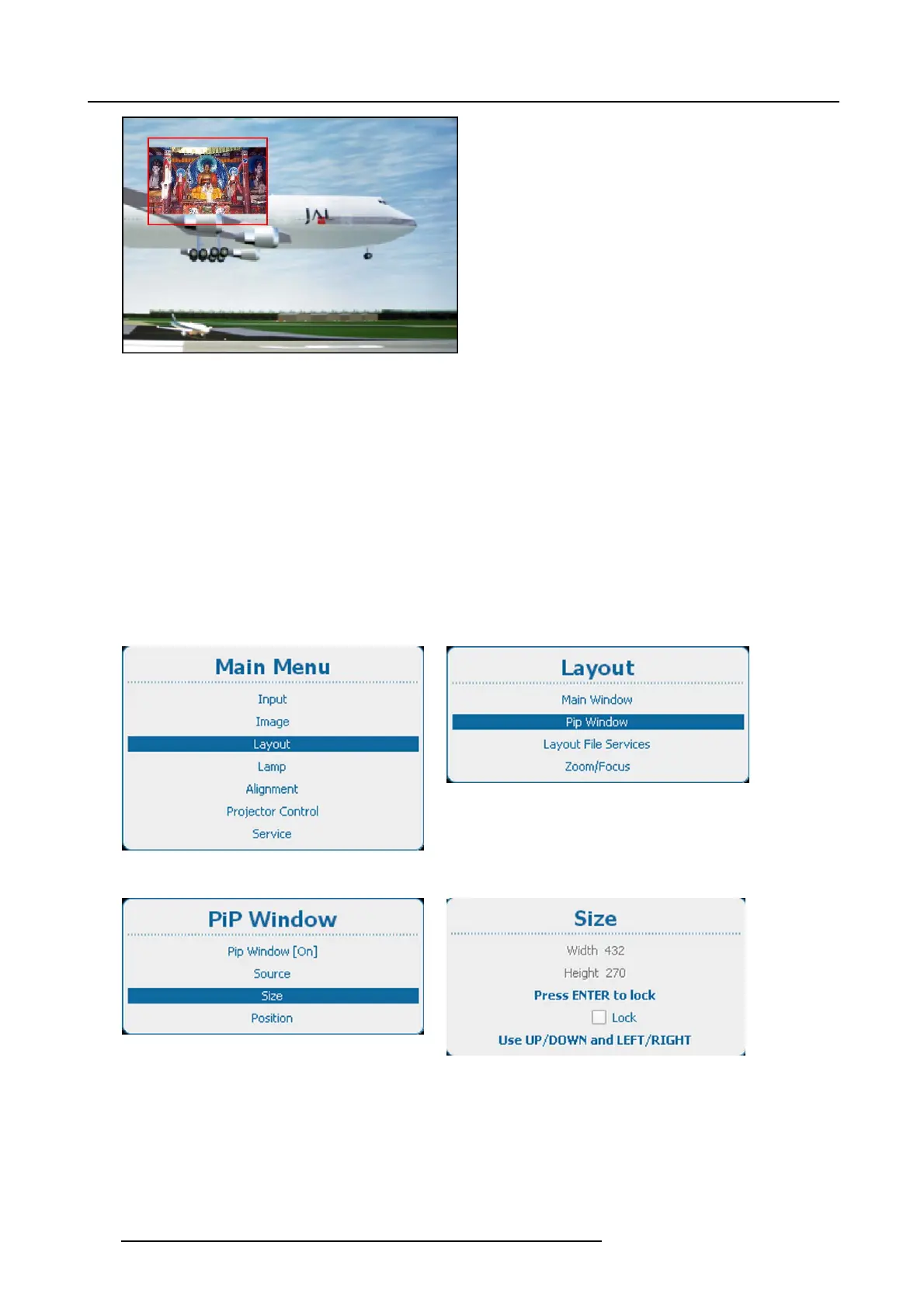

Image 10-26
Size PIP window remark
How to resize
1. Press Menu to activate the menus and select Layout → PiP window → Size. (image 10-27, image 10-28, image 10-29)
2. Press ENTER to select.
The Size window opens. (image 10-30)
3. To keep the current aspect ratio, press ENTER to check Loc k.
Once Lock is checked, the width and the height will follow each other when changing one of the dimensions.
4. Use the ▲ or ▼ key to change the height and the ◄ or ► key to change the width.
5. When the desired size is reached, press EXIT.
A S ave Layout window opens. (image 10-31)
6. Use the ▲ or ▼ key to select Yes and press ENTER to save.
Select No if you want to quit without saving the current position.
Image 10-27
Main menu, layout
Image 10-28
Layout, PiP Window
Image 10-29
PiP window, size
Image 10-30
PiP window, resize
114 R5905158 HDF W SERIES 10/07/2012
