Canon LBP6780x - Page 123

To Next Page

To Previous Page

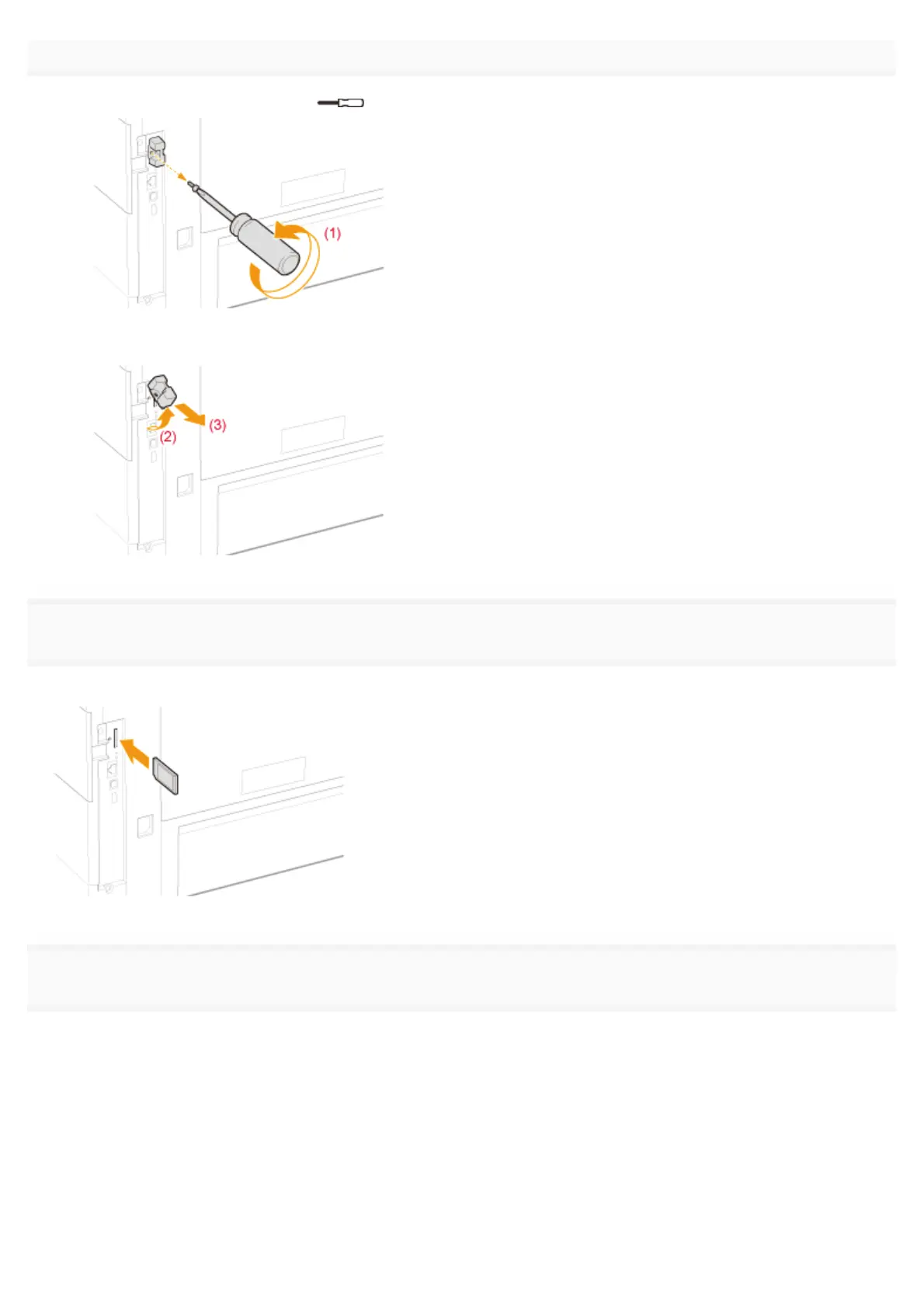

Remove the slot cover.

(1) Remove the screw marked with "

(2) Open the slot cover.

(3) Remove the cover in the direction of the arrow.

Install SD card.

Install the SD card in the SD card slot until it clicks.

Attach the slot cover.

(1) Engage the tab of the SD card slot cover into the matching slit.

(2) Close the cover.
