Specify the password.

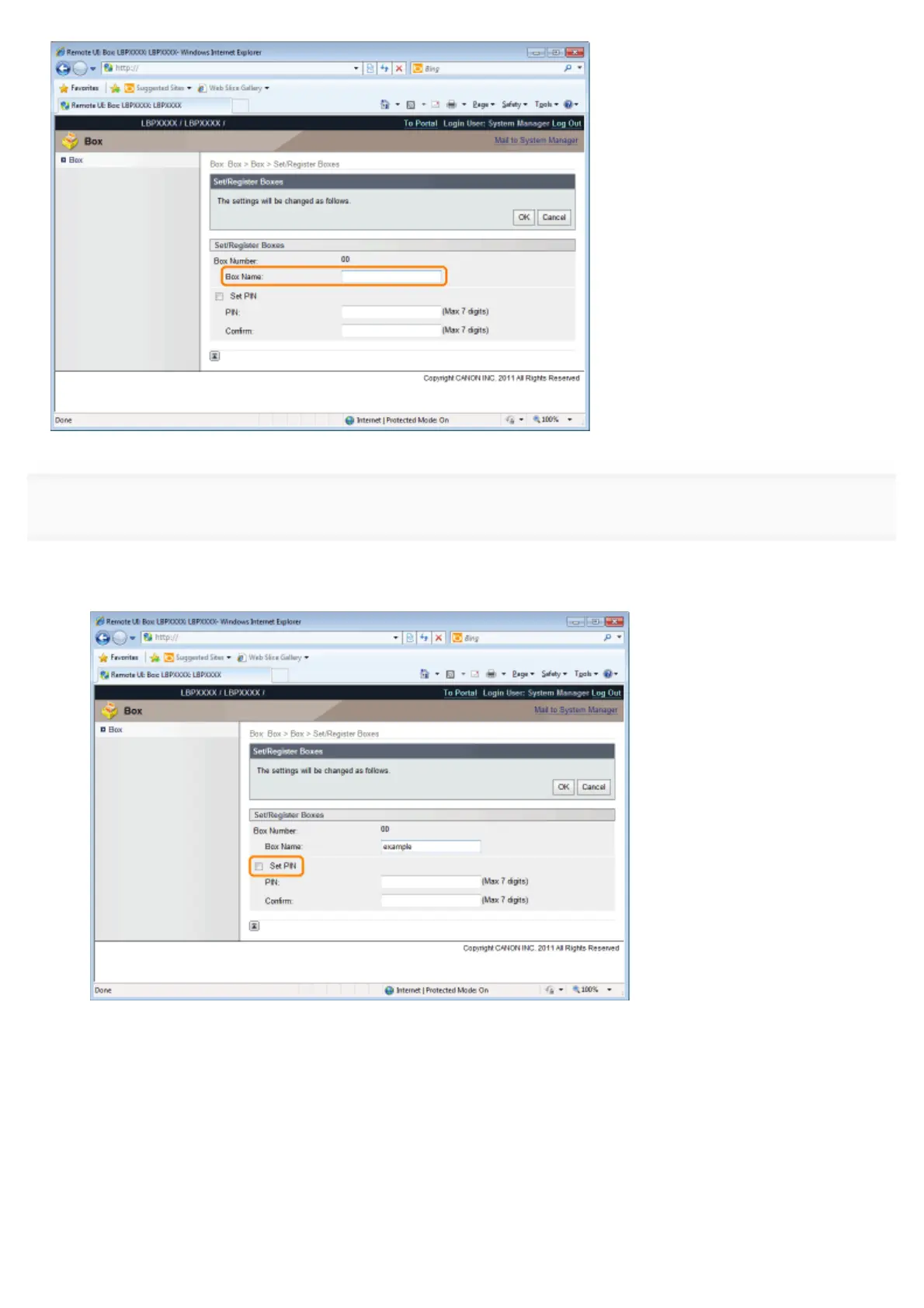

When specifying a password for a box

(1) Select the [Set PIN] check box.

(2) Enter the password that you want to specify in [PIN], and then enter the same number in [Confirm] as the one you

entered in [PIN].
