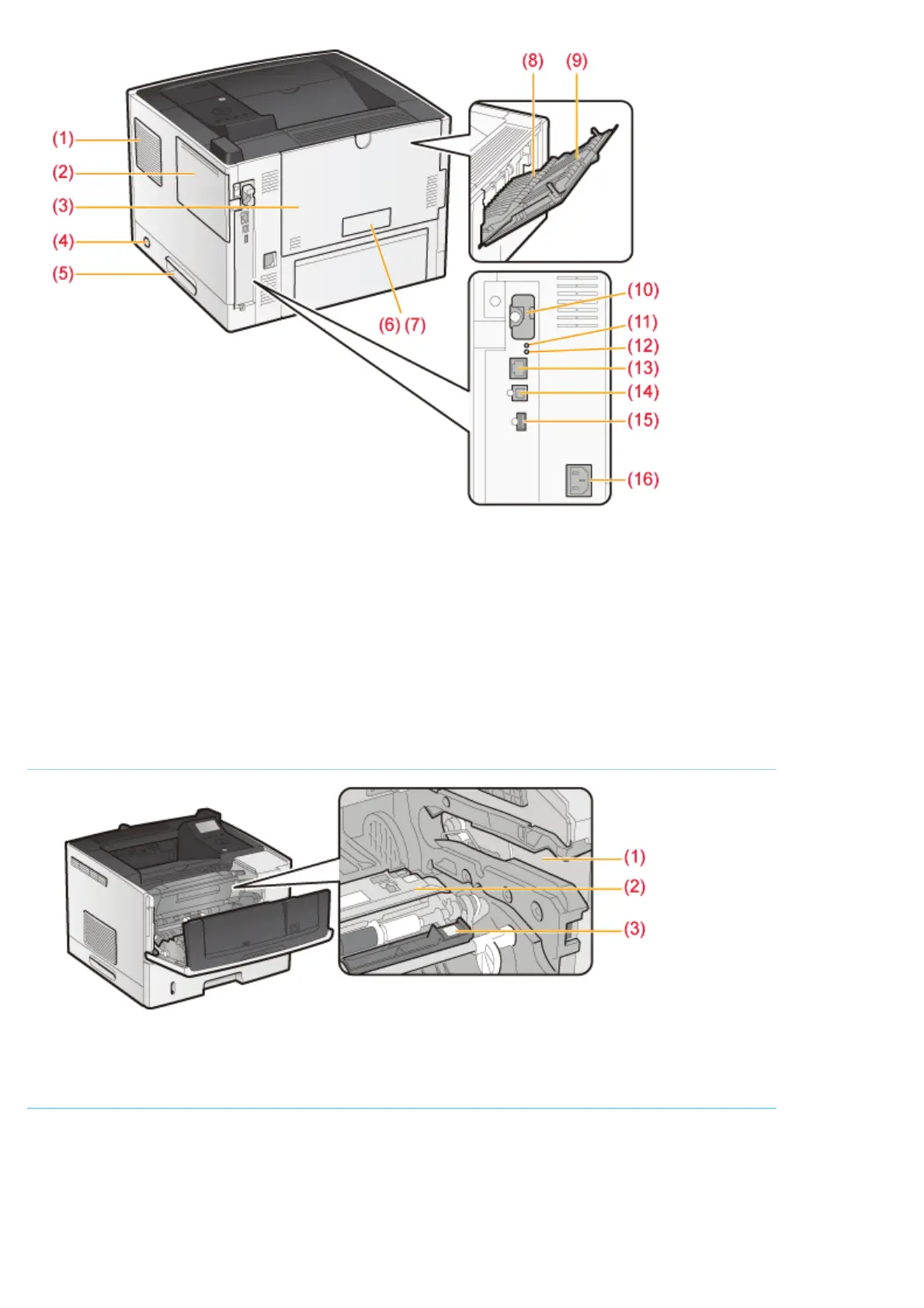

(1) Ventilation Slot (7) Serial Number (13) LAN Connector
(2) Right Cover
(8) Sub-output Tray (14) USB Connector (for Computer Connection)
(3) Rear Cover
(9) Tray Extension (15) USB Connector (for USB Device)
(4) Power Switch
(10) SD Card Slot Cover (16) Power Socket
(5) Lift Handle
(11) ACT Indicator (Green)
(6) Rating Label (12) LNK Indicator (Green)
Interior View
(1) Toner Cartridge Guide (2) Transfer Guide at the back (3) Transfer Guide at the front
Multi-purpose Tray
