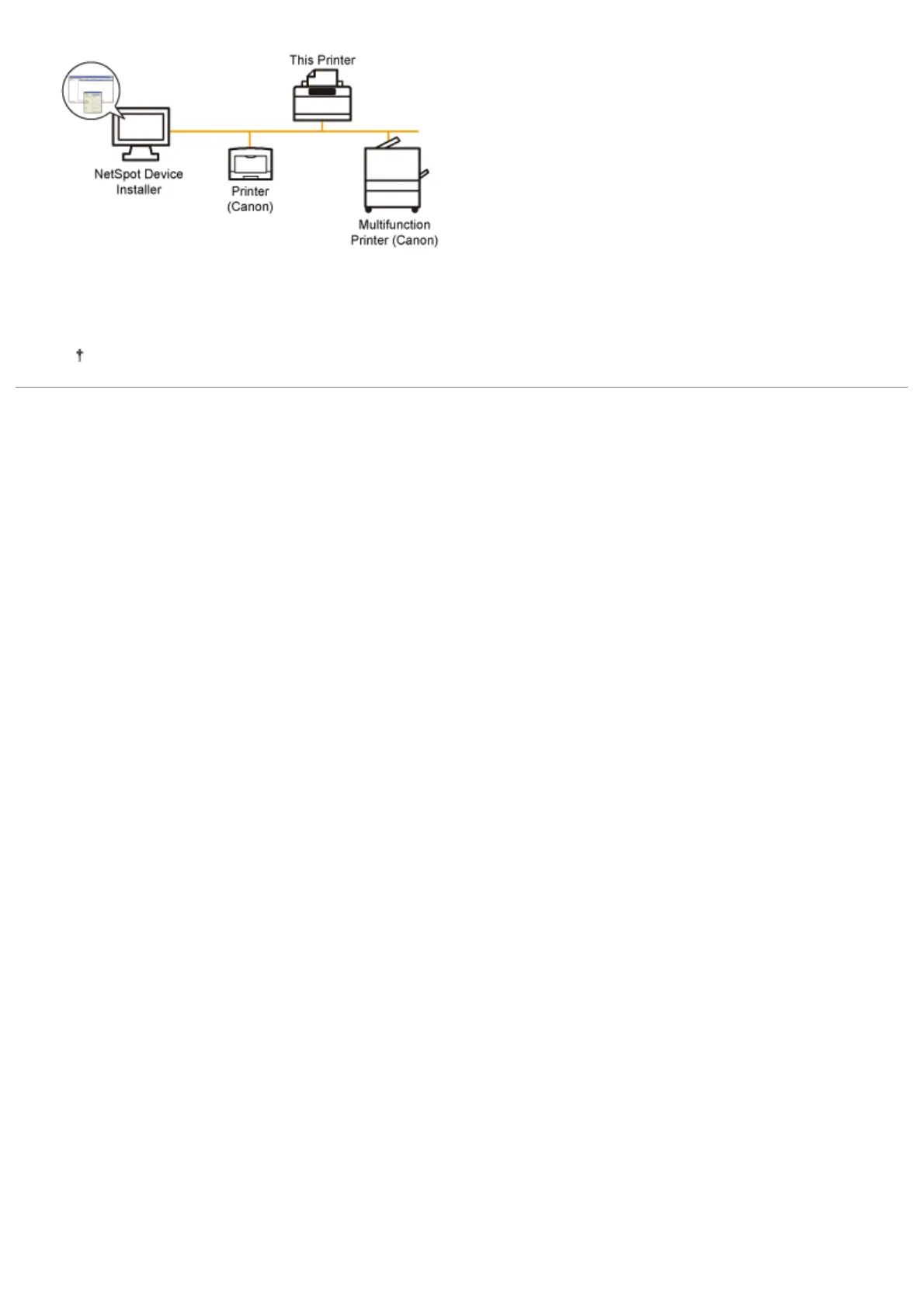

You do not need to install NetSpot Device Installer.

NetSpot Device Installer is software included in the supplied CD-ROM. You can start NetSpot Device Installer directly

from the CD-ROM without installing it.

You can also install NetSpot Device Installer on a computer.
