Configuring a LUN-Based Zone Using Fabric Manager
To configure a LUN-based zone using Fabric Manager, follow these steps:
Step 1 Choose Zone > Edit Local Full Zone Database.
You see the Select VSAN dialog box.
Step 2 Select a VSAN and click OK.
You see the Edit Local Full Zone Database dialog box for the selected VSAN.
Step 3 Click the zone where you want to add members and click the Insert icon.
You see the Add Member to Zone dialog box.

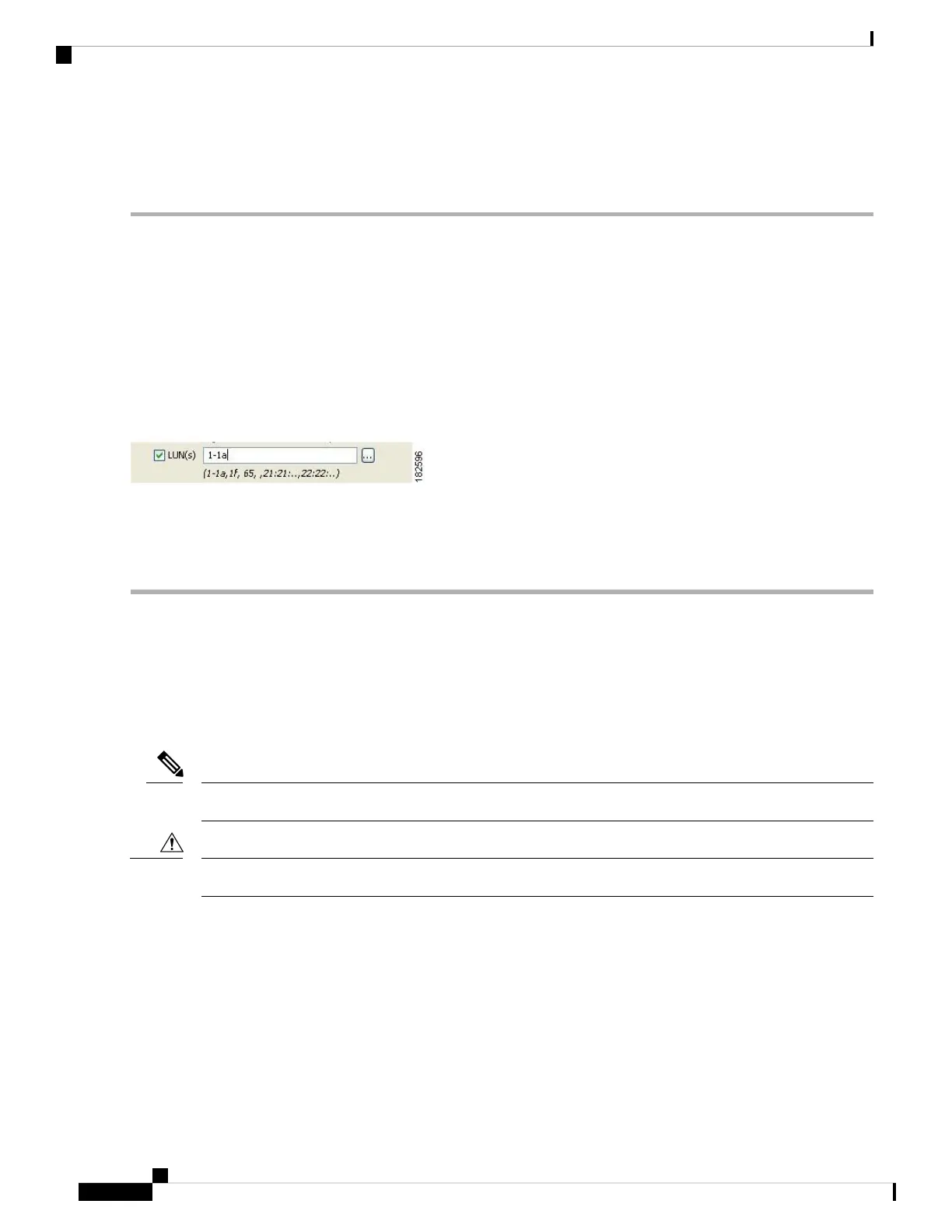

Figure 43: Add Member to Zone Dialog Box
Step 4 Click either the WWN or FCID radio button from the Zone By options to create a LUN-based zone.
Step 5 Check the LUN check box and click the browse button to configure LUNs.
Step 6 Click Add to add this LUN-based zone.
Assigning LUNs to Storage Subsystems
LUN masking and mapping restricts server access to specific LUNs. If LUN masking is enabled on a storage
subsystem and if you want to perform additional LUN zoning in a Cisco MDS 9000 Series switch, obtain the
LUN number for each host bus adapter (HBA) from the storage subsystem and then configure the LUN-based
zone procedure provided in the Configuring a LUN-Based Zone, on page 101.
Refer to the relevant user manuals to obtain the LUN number for each HBA.
Note
If you make any errors when assigning LUNs, you might lose data.
Caution
About Read-Only Zones
By default, an initiator has both read and write access to the target's media when they are members of the
same Fibre Channel zone. The read-only zone feature allows members to have only read access to the media
within a read-only Fibre Channel zone.
You can also configure LUN zones as read-only zones. Any zone can be identified as a read-only zone. By
default all zones have read-write permission unless explicitly configured as a read-only zone.
Follow these guidelines when configuring read-only zones:
Cisco MDS 9000 Series Fabric Configuration Guide, Release 8.x
102
Configuring and Managing Zones
Configuring a LUN-Based Zone Using Fabric Manager
