Cisco MDS 9000 Series

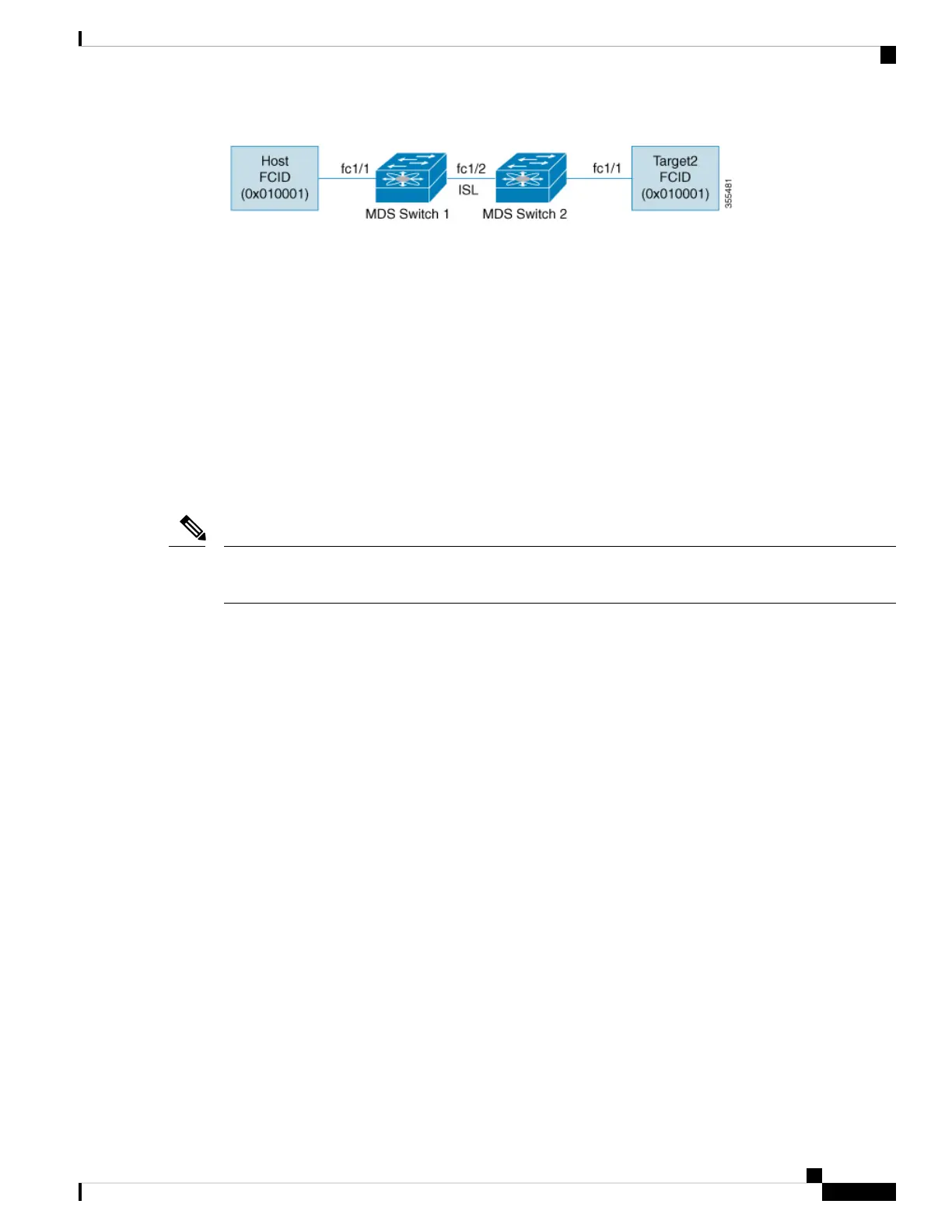

In this topology:
• Both Cisco MDS 9148S-1 and MDS 9148S-2 are in the IVR VSAN topology:
MDS9148S-1 vsan 1 and vsan 2
MDS9148S-2 vsan 2 and vsan 3
• IVR NAT is configured.
• VSAN 2 is the transit VSAN.
FCIDs per VSAN:
VSAN 1 VSAN 2 VSAN 3
Host 010001 210001 550002
Target1 440002 360002 030001
Domains 0x44 in VSAN 1, 0x21 and 0x36 in VSAN 2, and 0x55 in VSAN 3 are virtual domains created by
IVR NAT.
Note
• The following is the IVR zoning topology:
ivr zone zone1
member host vsan 1
member target1 vsan3
• The following is the ACL TCAM programming for the IVR zoning topology:
MDS9148S-1 fc1/1(Host) - VSAN 1
Entry# Source ID Mask Destination ID Mask Action
1 010001(host) ffffff 440002(target1) ffffff Permit
- Forward to fc1/2
- Rewrite the following information:
VSAN to 2
Source ID to 210001
Destination ID to 360002
2 000000 000000 000000 000000 Drop
MDS9148S-1 fc1/2(ISL) - VSAN 2
Entry# Source ID Mask Destination ID Mask Action
1 360002(Target1) ffffff 210001(host) ffffff Permit
- Forward to fc1/2
- Rewrite the following information:
VSAN to 1
Source ID to 440002
Destination ID to 010001
MDS9148S-2 fc1/2(ISL) - VSAN 2
Entry# Source ID Mask Destination ID Mask Action
1 210001(host) ffffff 360002(target1) ffffff Permit
- Forward to fc1/2
Cisco MDS 9000 Series Fabric Configuration Guide, Release 8.x
147
Configuring and Managing Zones
E and TE Port Channels and IVR
