A53 Z0 9 0020 L En Technical documentation
Chapter : Additional functions
115
Figure 56 - Permanent Mains paralleling with one digital input setup as "Mains electrical fault"
13.4 Generator electrical fault
In case of a generator electrical fault, the generator breaker is opened and the alternator is de-excited (if
wired) during a certain time [E1265]. If the fault is still present after this time has elapsed, a hard shutdown
occurs. Otherwise GENSYS 2.0 will try to re-synchronize. Associated parameters are listed in the table
below.
Parameter
Default value
Description
E1843
(1)
30.0s
Time to wait after a generator electrical fault disappears before
trying to synchronize.
E1844
(1)
2
Attempts to re-synchronize when a generator electrical fault
appears and disappears.
Table 37 - Generator electrical fault
(1) Available in « Configuration/Generator 2/2/GE electrical fault » menu.

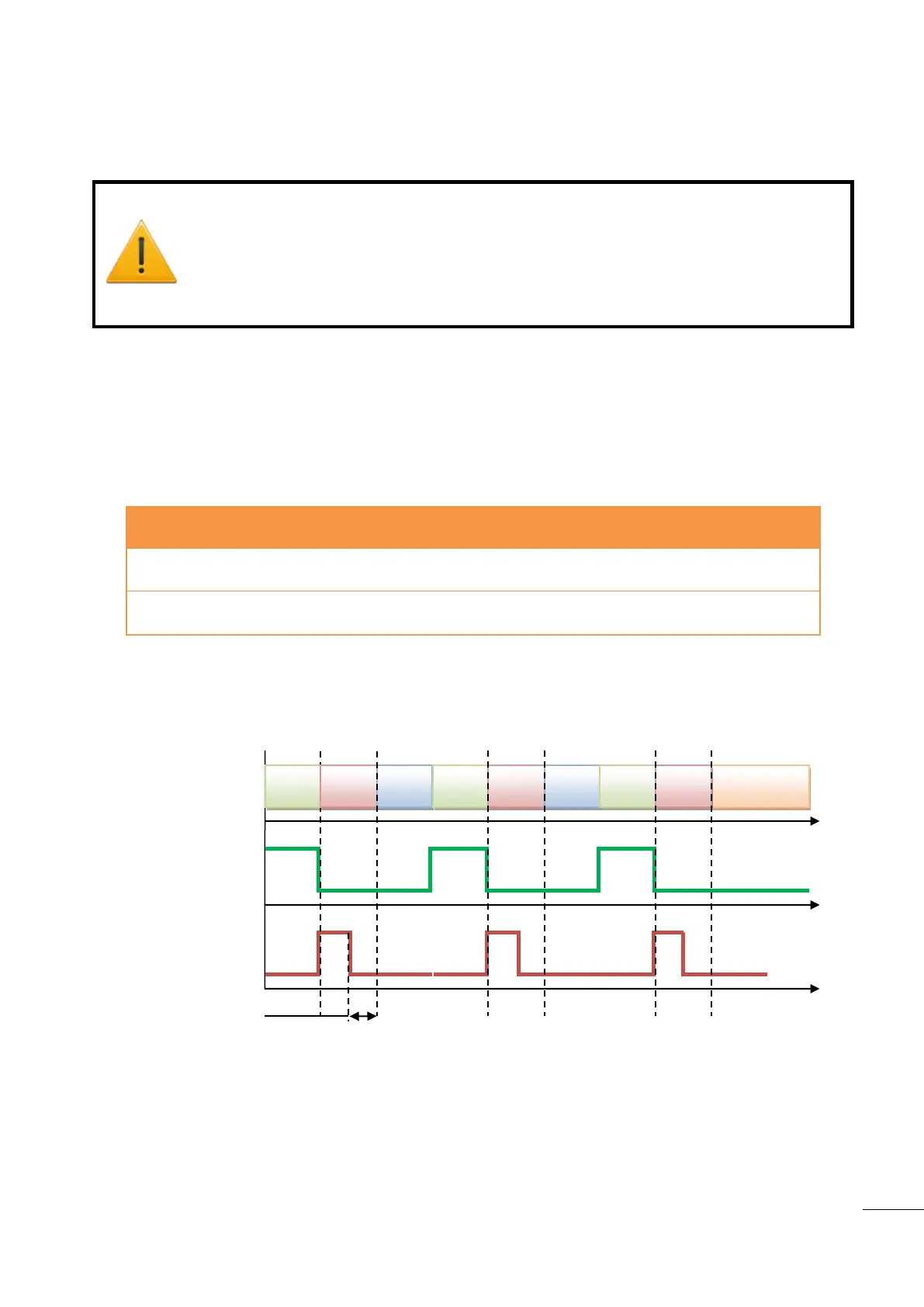

Figure 57 - Permanent Mains paralleling and generator electrical fault
NOTE:
Never use “No start on fault” in conjunction with "open mains on fault" in permanent mode
or no break change over mode.
Always use “No start on fault” when "generator breaker" or "both breakers" to open is
selected.
Generating set
status
Generating set
circuit breaker
(E2001)
Generating set
electrical fault
(E2200)
E1843
Paralleled
FAULT
SYNCH
STOP
Parall.
FAULT
SYNCH
Parall.
FAULT
