CRE Technology GENSYS 2.0 User Manual

A53 Z0 9 0020 L En Technical documentation
Chapter : Dedicated I/O lines
83
10.4 Relay output
10.4.1 Breakers
GENSYS 2.0 is equipped with 4 NO relays (at rest) for breaker control:
 2 relays to control the generator breaker - one for opening (E4) and one for closing (E5).
 2 relays to control the mains breaker - one for opening (E1) and one for closing (E2).

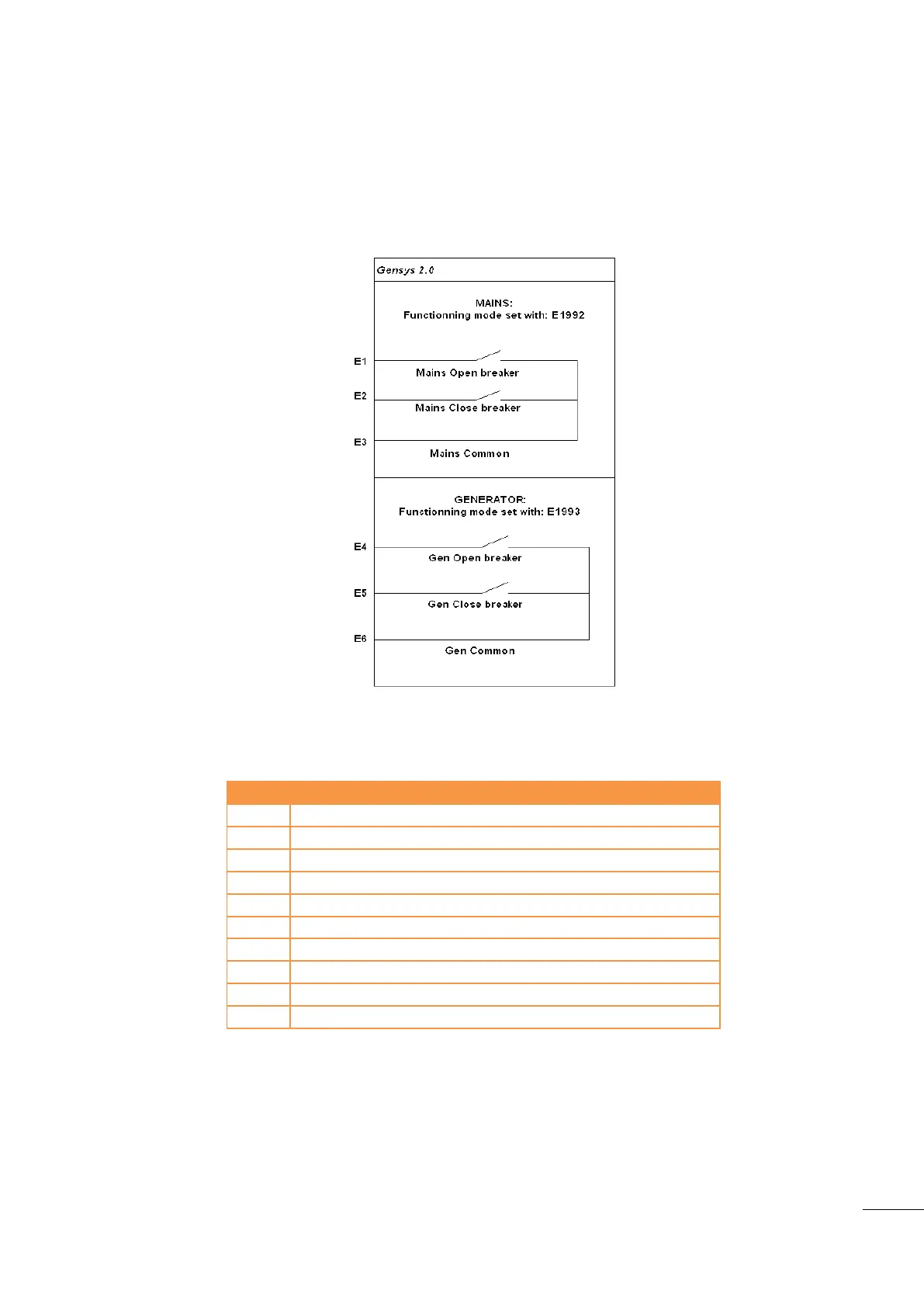

Figure 47 - Breakers wiring
These outputs allow you to control various types of breakers. This chapter explains available setups and
their associated variables.
Variables
E2000
Digital input for MAINS breaker feedback
E2001
Digital input for GENSET breaker feedback
E2016
GENSET breaker control
E2017
MAINS breaker control
E1149
Delay before breaker opening/closure failure
E1992
Type of MAINS breaker relay working mode
E1993
Type of GENSET breaker relay working mode
E1994
Time before undervoltage trip coil control contact closure
E1995
Time before a new closure request is authorized
E1893
Trip coil minimum pulse length.
Table 23 - Used variables for breakers setting
Variables [E2016] and [E2017] let you see the breaker output control. Whatever the type of breaker
control, a value of 1 mean “close the breaker” while a 0 mean “open the breaker”.
Variables [E2000]/[E2001] and GENSYS2.0 front panel let you see the breaker feedback. (1 when breaker is
closed).
