A53 Z0 9 0020 L En Technical documentation

Chapter : Additional functions

137

13.17

Voltage system (120

three phases, 180

two phases,

single phase)

Parameter [E4039] allows you to select the system to be used in the “Configuration/Power plant” menu.

System used

E4039

Three phase 120°

0 (default value)

Two phase 180°

Single phase

Table 44 - Voltage system

SYSTEME

PARAM.

CONNEXIONS

3 phases 120°

3 phases +

Neutre

E4039 = 0

2 phases 180°

2 phases

180°+ Neutre

E4039= 1

1 phase +

Neutre

1 phase +

Neutre

E4039= 3

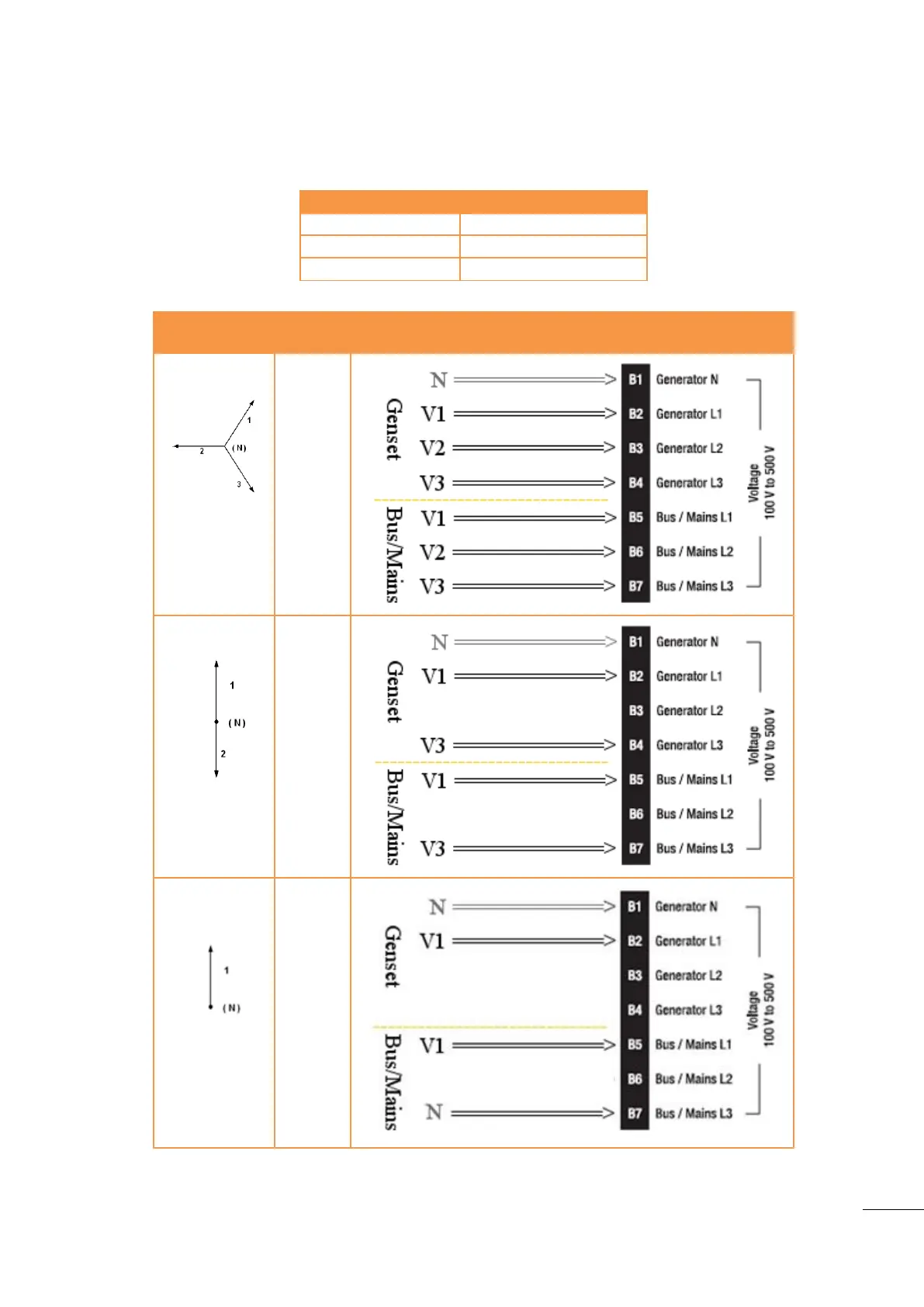

Figure 74 - Voltage system
