A53 Z0 9 0020 L En Technical documentation

Chapter : Predefined configuration

8.6

Single generator paralleled with mains

This function needs OPTION 2 to be installed.

8.6.1

Configuration

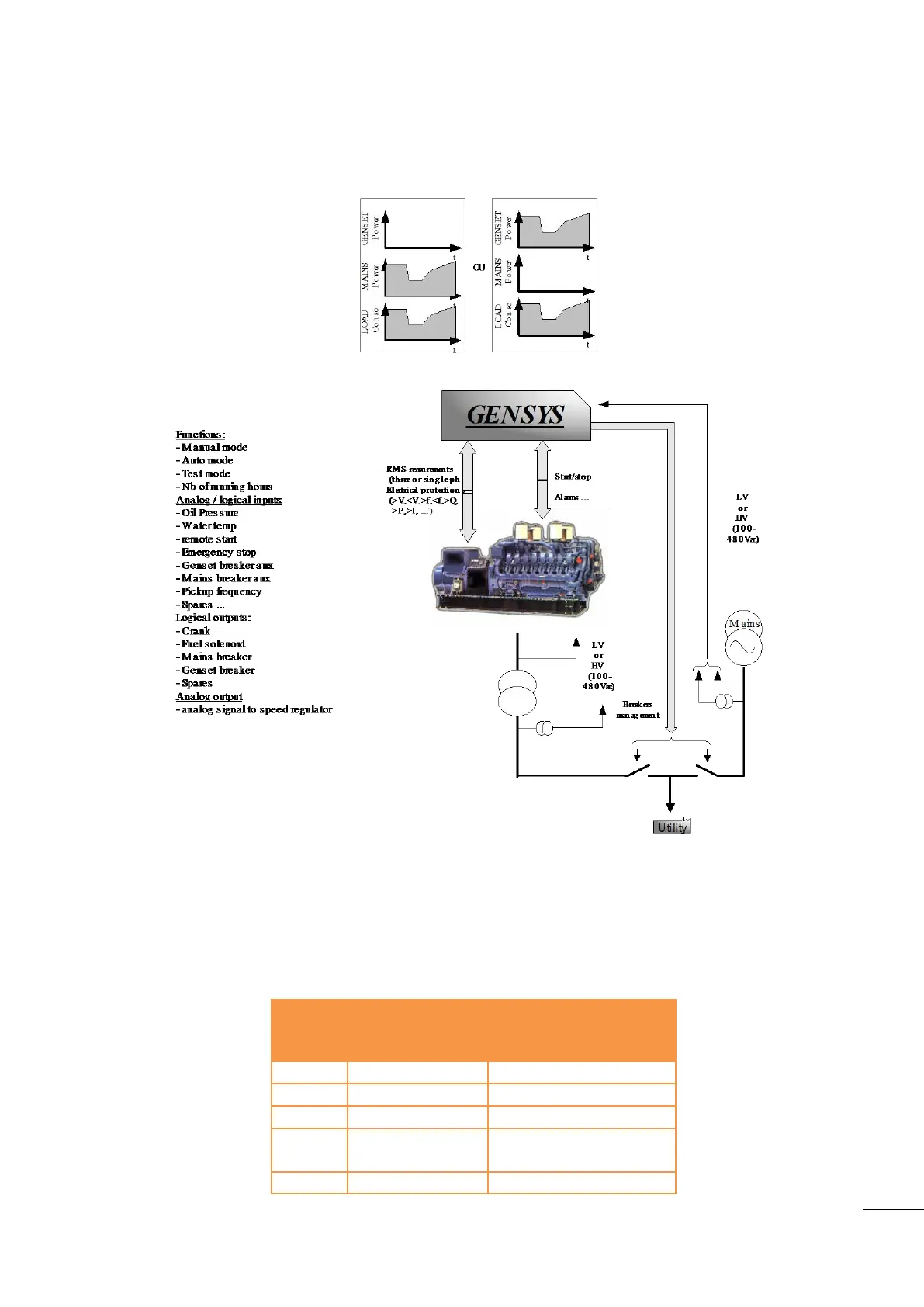

Figure 25 - Paralleling with mains

In permanent mode [E1148] and peak shaving mode [E1153], a mains power measurement is required:

 internal via L1-L6 inputs (Mains I1, I2, I3),

 or external via G1-G3 inputs (0-20mA).

Variable

number

Variable label

Variable value

1179

My Number

1147

Nb. of gen.

4006

Nb. of Master

1148

Mains parallel

NoBreak CO /

Permanent

1153

Mains regul.

Base load / Peak shav
