A53 Z0 9 0020 L En Technical documentation

Chapter : Installing and commissioning a GENSYS 2.0 application

9.2

Complete wiring diagram

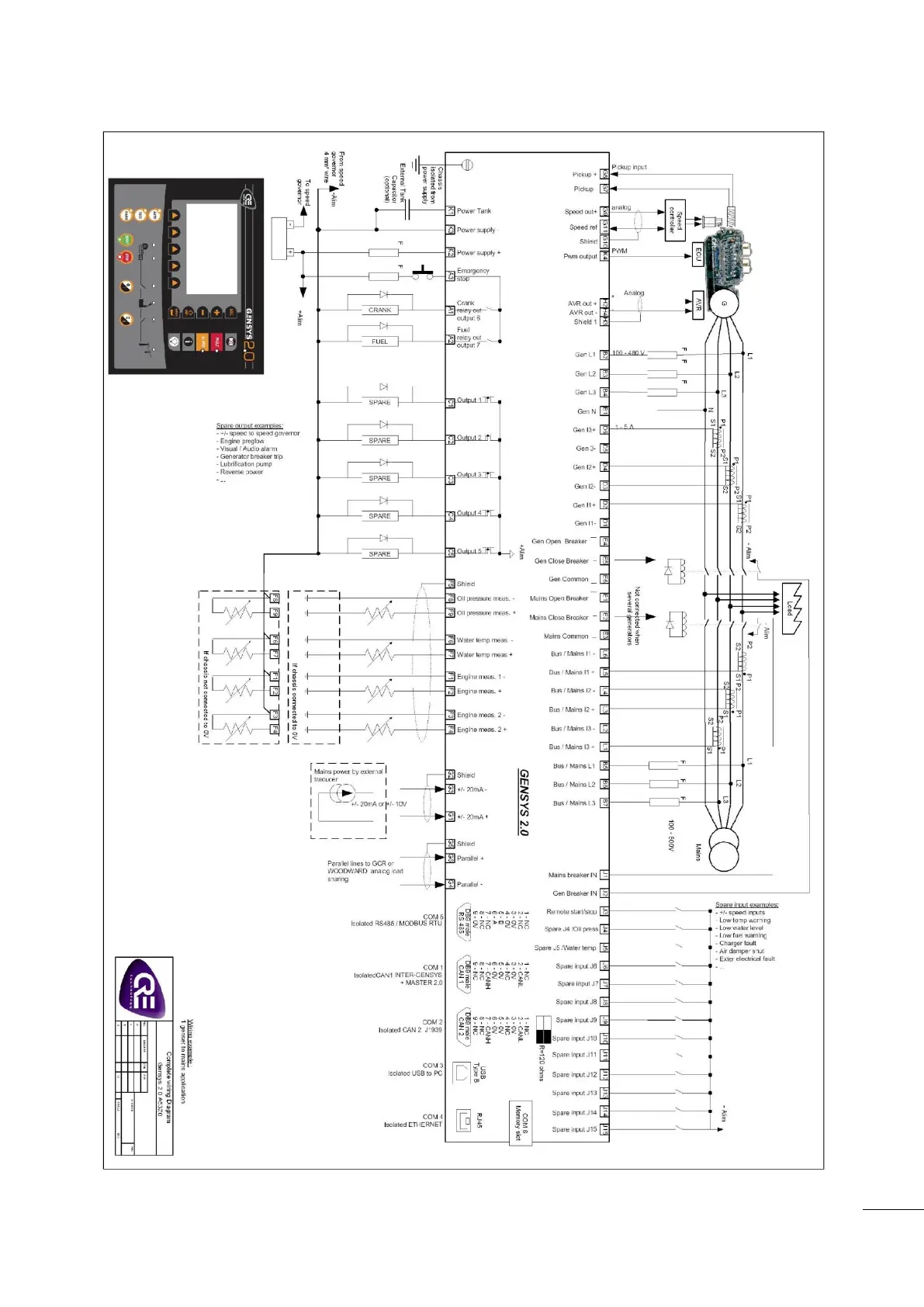

Figure 34 - Complete wiring diagram
