A53 Z0 9 0020 L En Technical documentation

Chapter : Dedicated I/O lines

Variable

number

Label

Value

Description

E1639

500 Hz ACT

Activates the speed control with 500Hz PWM. In this

mode the analogue speed output (G9 / G11) is

unavailable.

E1077

ESG offset

70%

Is the PWM duty cycle set for nominal frequency.

E1076

ESG

amplitude

30%

Is the range of the PWM duty cycle to control engine

speed. For example, if you have set 20.0%, the PWM will

vary +/- 10% around the nominal duty cycle value.

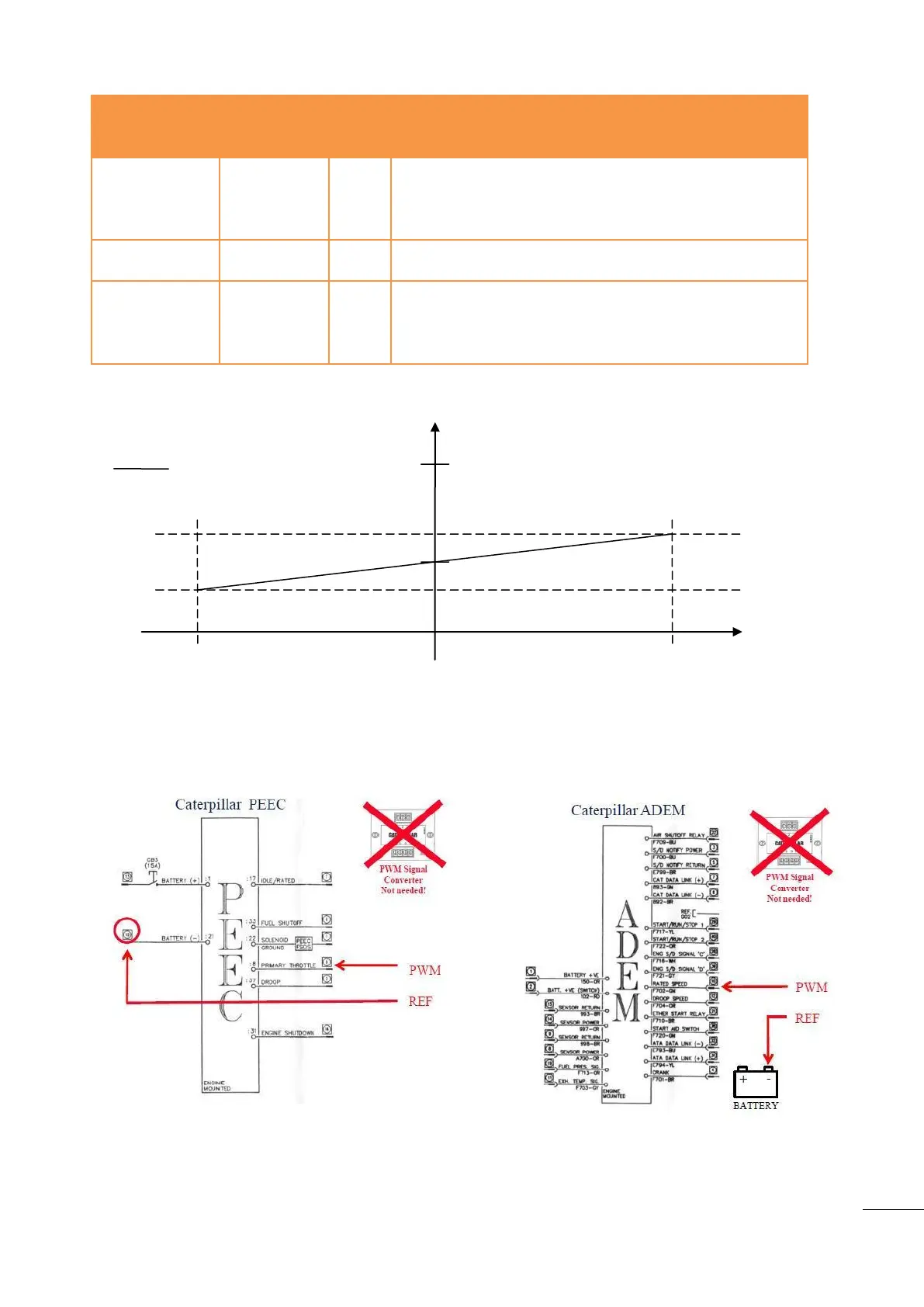

Table 19 - PWM parameters

Figure 42 - PWM dynamic

Figure 43 - Caterpillar PEEC and ADEM connections

PWM (%)

Deviation

(E2058)

Max correction

Min correction

100

Offset = 70%

Amplitude = 30%
