A53 Z0 9 0020 L En Technical documentation

Chapter : Predefined configuration

8 Predefined configuration

8.1

Single generator in change-over mode

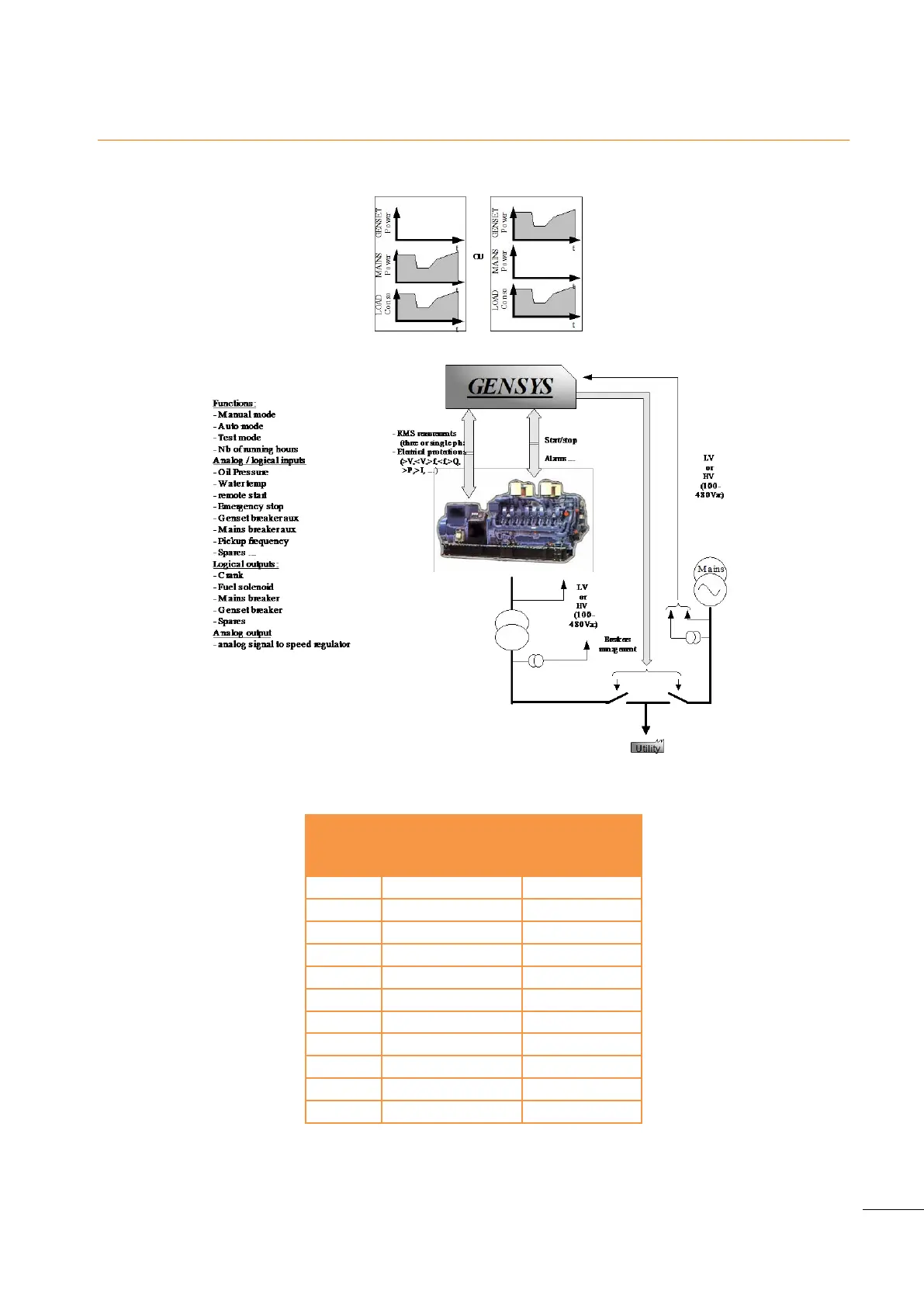

Figure 17 – Power plant in change-over mode without paralleling

Variable

number

Variable label

Variable value

1179

My Number

1147

Nb. of gen.

4006

Nb. of Master

1148

Mains parallel

Change-over

1153

Mains regul.

1158

Load sharing

1177

Static paralleling

1515

DeadBus manag.

1258

Load/Unl. mode

Inhibited

1846

Break Ma Fault

Mains

1841

Fault start

Yes

Table 9 – Typical basic change-over configuration
