A53 Z0 9 0020 L En Technical documentation

Chapter : Additional functions

132

KW of Power Plant

KW available

Heavy Consumer authorization

100 KW

200 KW

Power Plant = 2 GEs of 100 KW each

Heavy Consumer = 75 KW

100 KW

Start and Synchronisation of second GE

time

Heavy Consumer demand

time

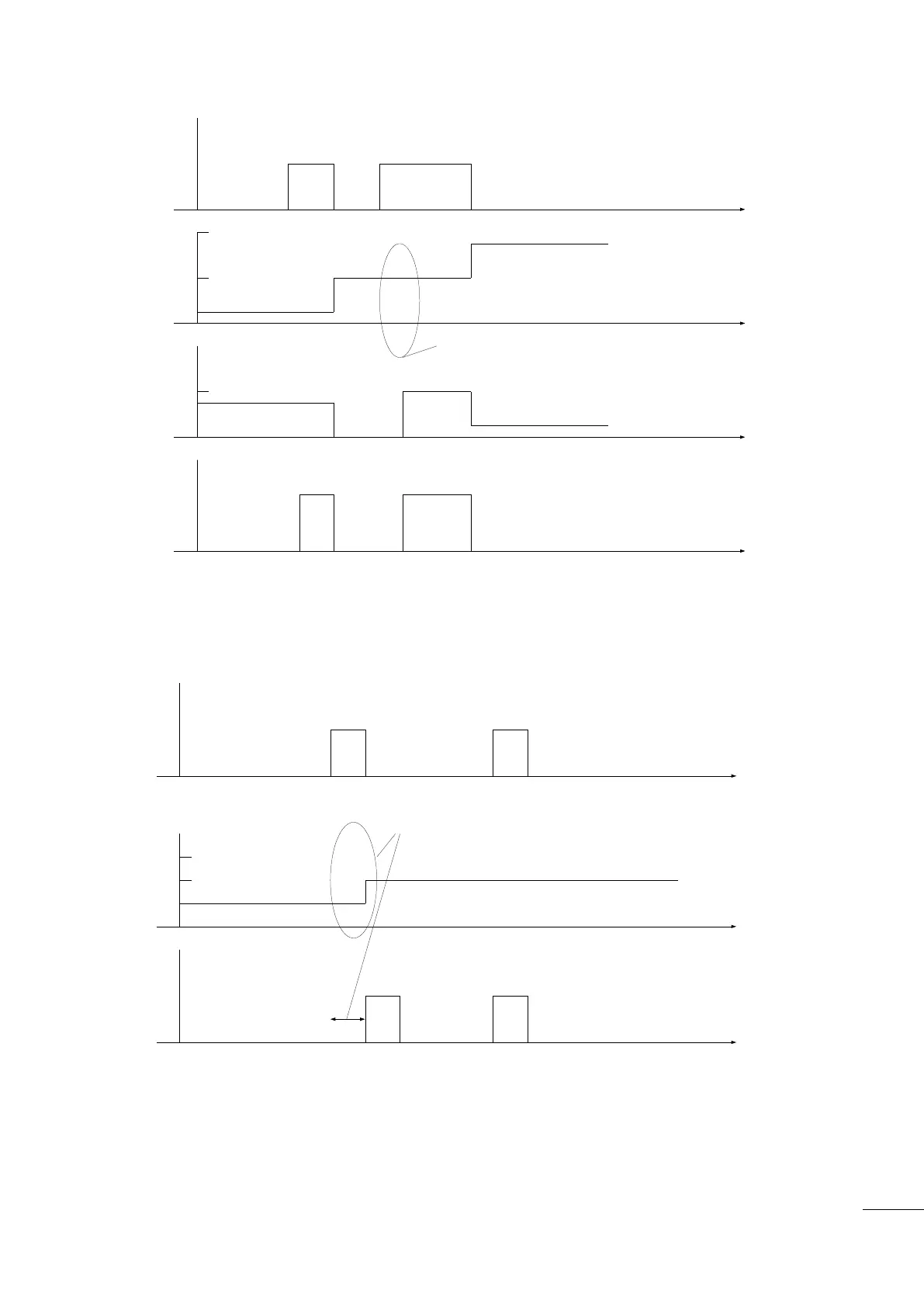

Figure 66 - Heavy Consumer Control with active power analysis

Nb Gensets on the busbar

Heavy Consumer authorization

Power Plant = 3 GEs

Min Nb of GENSET = 2

Start and Synchronisation of second GE

time

Heavy Consumer demand

time

Figure 67 - Heavy Consumer Control with number of gensets analysis
