A53 Z0 9 0020 L En Technical documentation

Chapter : Description

4 Description

4.1

Front panel

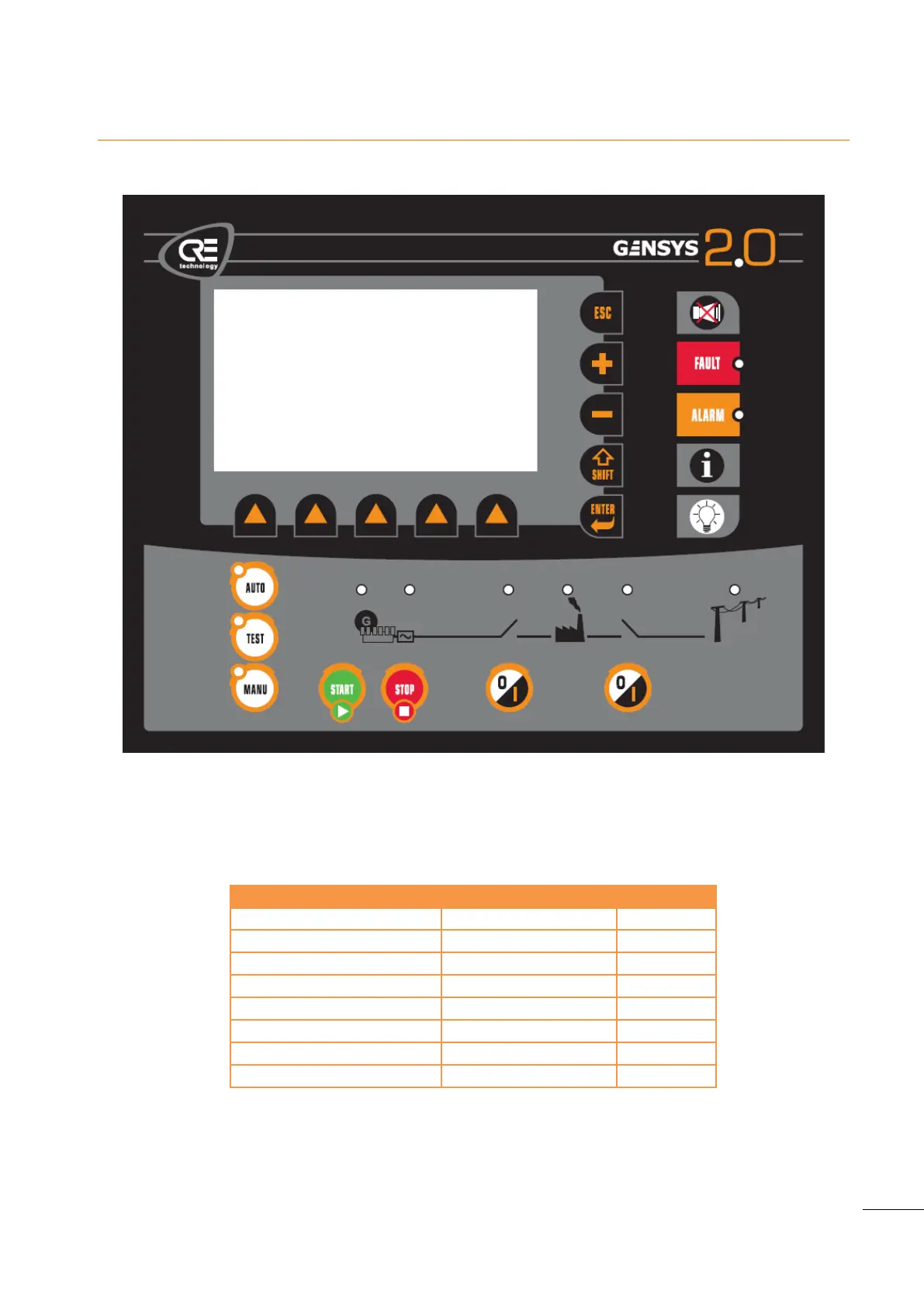

Figure 2 – GENSYS 2.0 front panel

The display panel allows setting up and monitoring of the GENSYS 2.0 configuration and the power plant it

controls. It provides a large LCD display and a keypad. See chapter below, for more details about the

functions of LEDs & Keys.

LCD characteristics

Value

Unit

Viewing area

240x128

dots

114x64 (4.49x2.52)

mm (in)

30x16

Characters

Character size (small font)

2.7x3.6 (0.1x0.14)

mm (in)

(standard font)

3.6x3.6 (0.14x0.14)

mm (in)

(large font)

9.45x9.45 (0.37x0.37)

Back light

cd/m²

LCD mode

STN

Table 2 - LCD screen characteristics
