17.2.4 Synchronization
This page displays:
 Synchroscope (phase difference)
 Differential frequency (bar graph)
 Differential voltage (bar graph).
 Synch check relay status (Phase difference, frequency difference, voltage difference, phase
sequence)
 Phase Offset (shows the parameter [E1929] set for the phase angle shift).

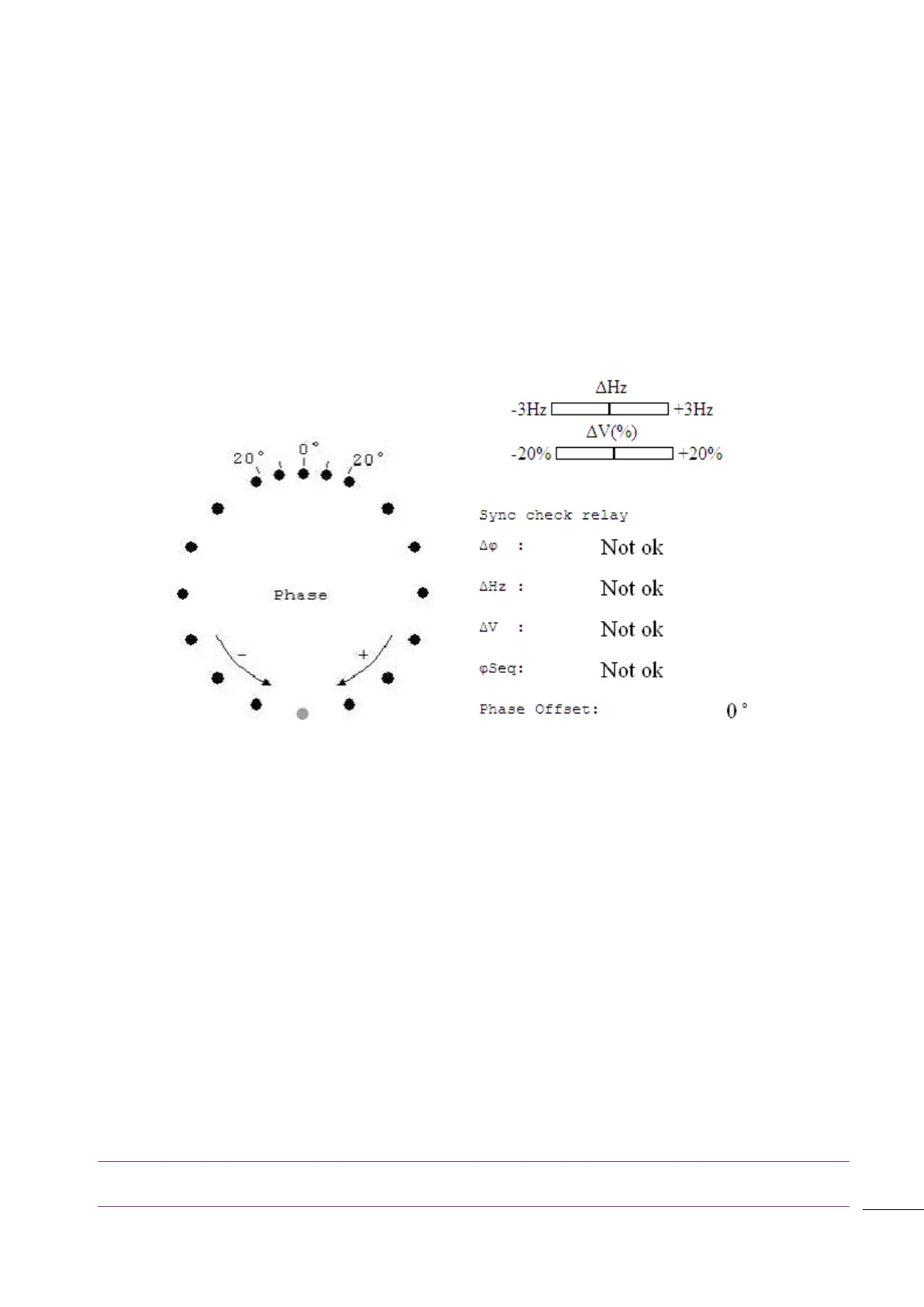

Figure 85 – Synchroscope
17.2.5 Engine meters
These measurements provide informations about the engine.
 Oil pressure [E0029]
 Water temperature [E0030]
 Engine speed [E0033]
 Battery voltage [E0040]
 two spare analogue resistive sensors: [E0031], [E0032]
 Hours and minutes run meter [E0065], [E0891]
 Total number of starts [E0041],
 User meters 1 & 2 [E2657], [E2659]
Note: The oil pressure, water temperature and speed engine can be measure by an analog input/pick-up
or by J1939 (see §15.3.2 for more details)
