A53 Z0 9 0020 L En Technical documentation
Chapter : Predefined configuration
53
8.4 Generators paralleling with GENSYS 2.0 and parallel line
modules

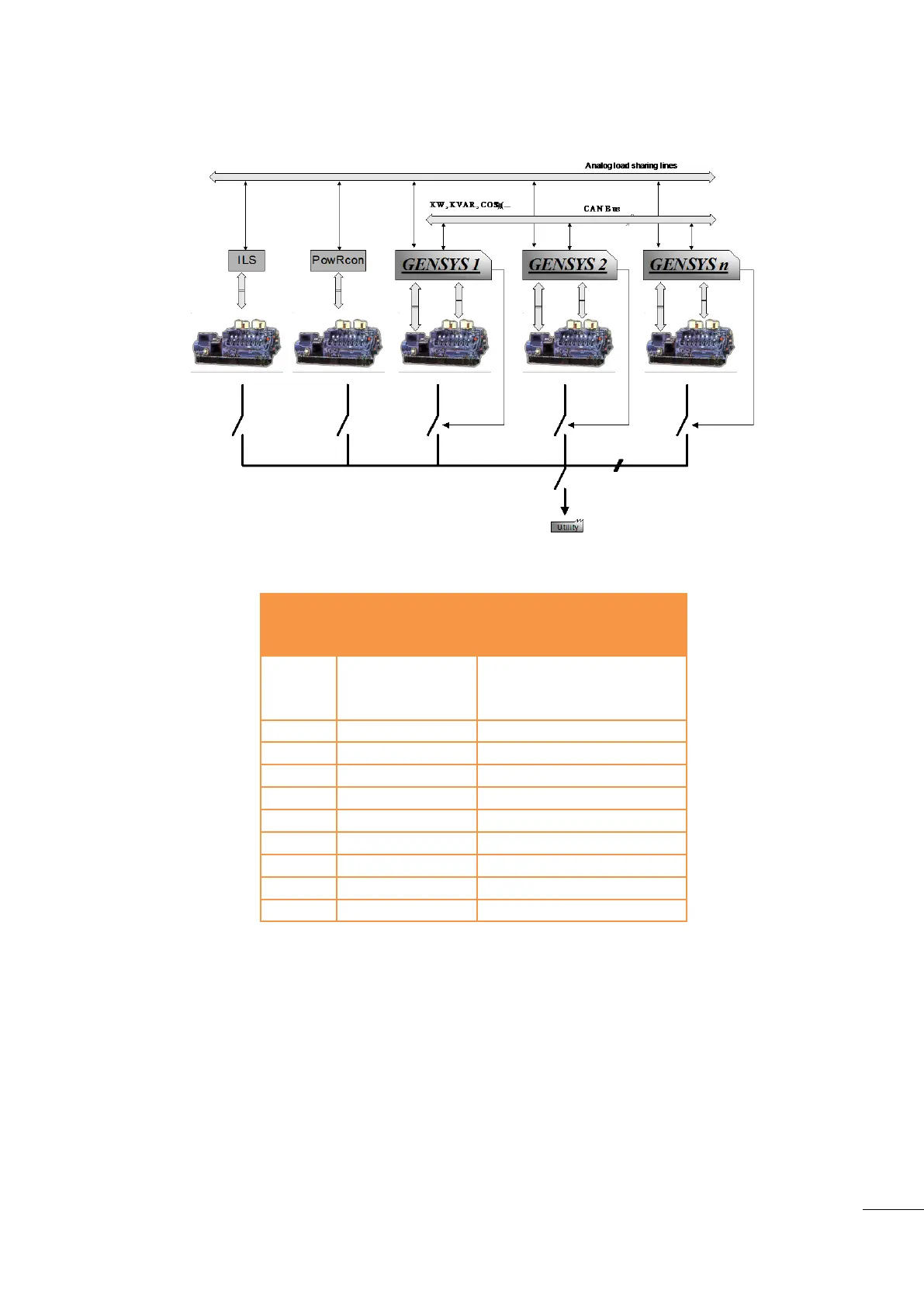

Figure 22 - Generator paralleling with parallel lines
Variable
number
Variable label
Variable value
1179
My Number
1 to 32 : this value must be
different for each device on
the same bus
1147
Nb. of gen.
2 ≤ N ≤ 32
4006
Nb. of Master
0
1148
Mains parallel
NoCh.over
1153
Mains regul.
X
1158
Load sharing
Analog
1177
Static paralleling
No
1515
DeadBus manag.
No
1258
Load/Unl. mode
Inhibited
1259
CAN bus fault
0 (No action)
Table 12 - Typical basic configuration for GENSYS 2.0 with parallel line modules
When GENSYS 2.0 is in analog load sharing mode, the active power sharing is handled via the parallel lines.
You have to disconnect the AVR output (H2-H4) and have an external device control the reactive power (CT
droop...). This mode is only recommended for use if you have older devices (which are not compatible with
CAN inter GENSYS 2.0), with ILS analogue parallel lines.
