A53 Z0 9 0020 L En Technical documentation

Chapter : Overview

1.3

Characteristics

Size: 248x197x57mm (9.76x7.76x2.24in)

Weight: 1.9kg (4.2oz)

Panel cut-out:

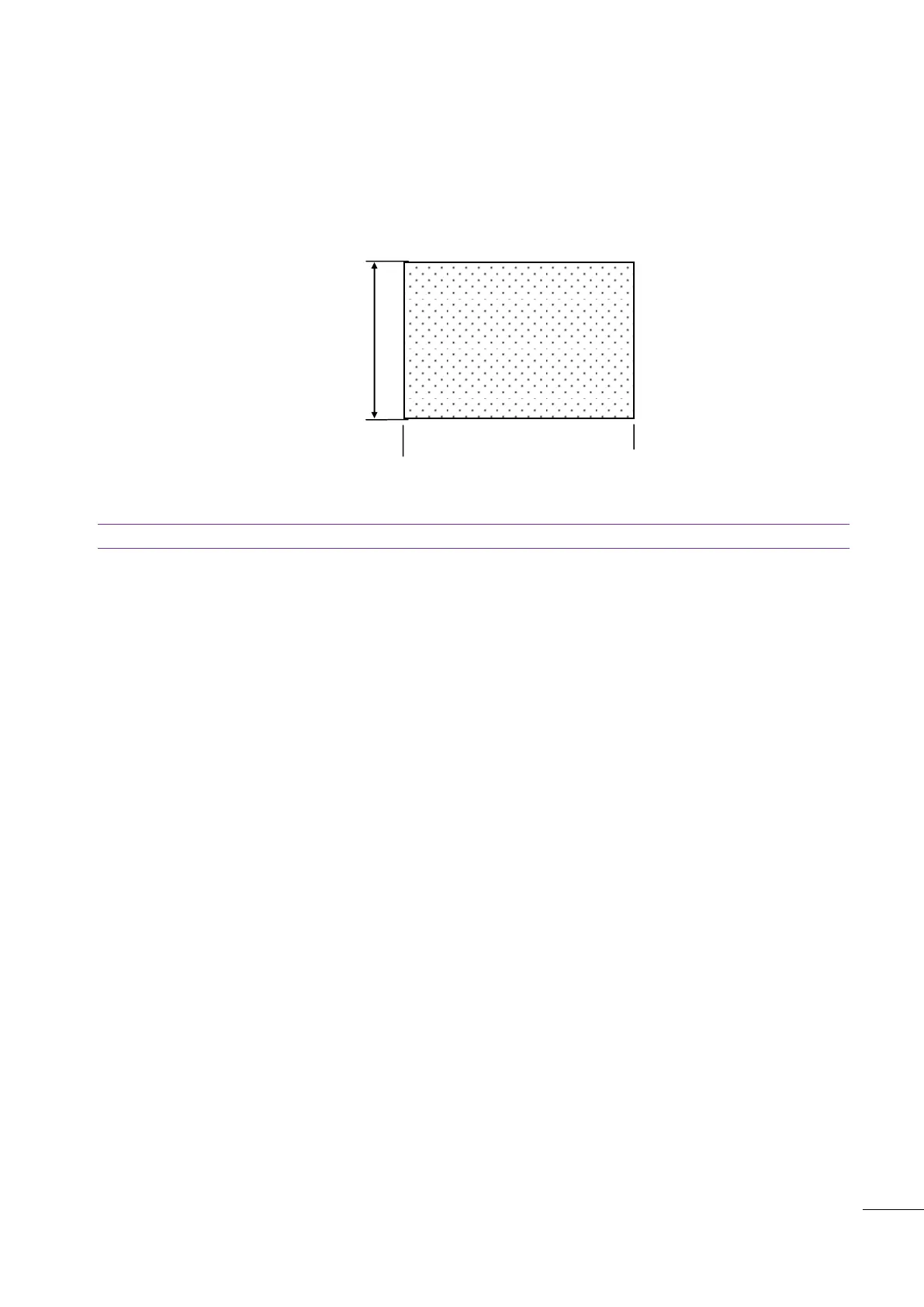

Figure 1 – Panel cut-out

Note: Cut-out must be cleaned and de-burred before mounting.

228 mm

/8.98 in

177 mm

/6.97 in
