A53 Z0 9 0020 L En Technical documentation

Chapter : Communication

191

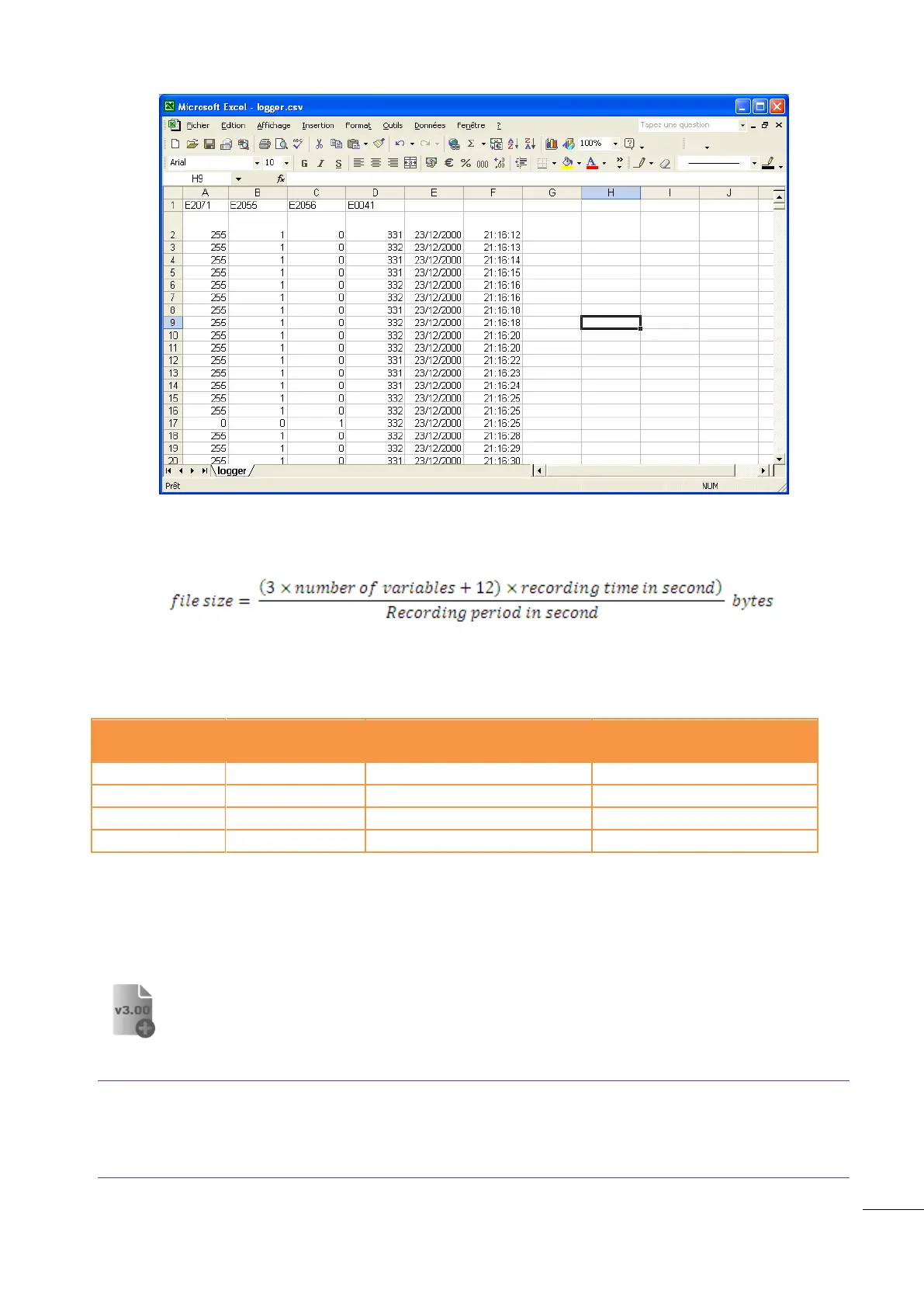

The backup file size is computed from the following equation :

Here some file size examples.

Number of

variable

Recording time

Recording period

File size

780kbytes

24h

1,5Mbytes

5min

8,1kbytes

30 days

10s

22,5Mbytes

Table 78 – SD card backup – File size

15.7.2

Firmware upgrade using SD card

Starting from firmware v3.00, it is now possible to upgrade the firmware with a new version

using a computer, the embedded Web site and an SD card. This way you can add new software

functions to your module.

Notes:

Programming a new firmware in your module will erase its actual setup (parameters, equations, custom

texts…) and replace it by the factory setup of the new firmware. Save your actual setup if you want to keep

it for future usage. Only software options will be kept in memory during firmware upgrade process.
