CRE Technology GENSYS 2.0 - Figure 70- Non Essential Consumer Trip Output Setting; Figure 71 - Non Essential Consumer Trip Timers; Figure 72

To Next Page

To Previous Page

A53 Z0 9 0020 L En Technical documentation

Chapter : Additional functions

135

Configuration of the trip output (/Configuration/Outputs/Digital outputs):

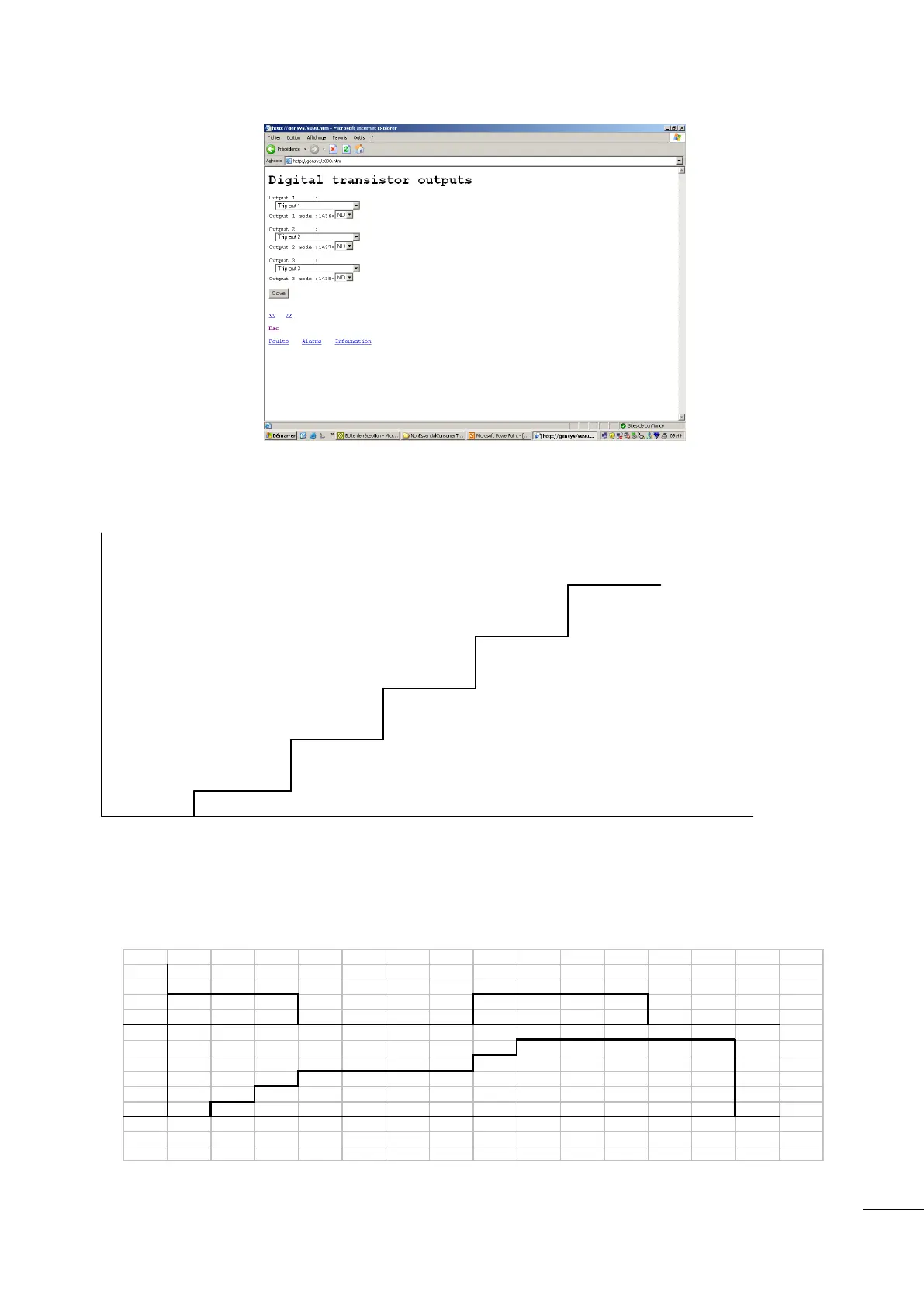

Figure 70- Non essential consumer trip output setting

When the variable [E2729] is activated, each trip output will activate after the same timer [E1894]:

Figure 71 - Non essential consumer trip timers

If the variable [E2729] becomes inactive, the outputs previously activated will keep the same status. If

variable [E2729] becomes active again, the trip outputs continue as before.

E2729

E2728 " " " "

E2727

E2726 " " "

E2725

E2724

Figure 72 - Non essential consumer trip diagram

E1894

E2724:=1

E2724 : =1

E2725:=1

E2726:=1

E2727:=1

E2728:=1
