A53 Z0 9 0020 L En Technical documentation

Chapter : Predefined configuration

8.2

Single generator in no-change-over mode

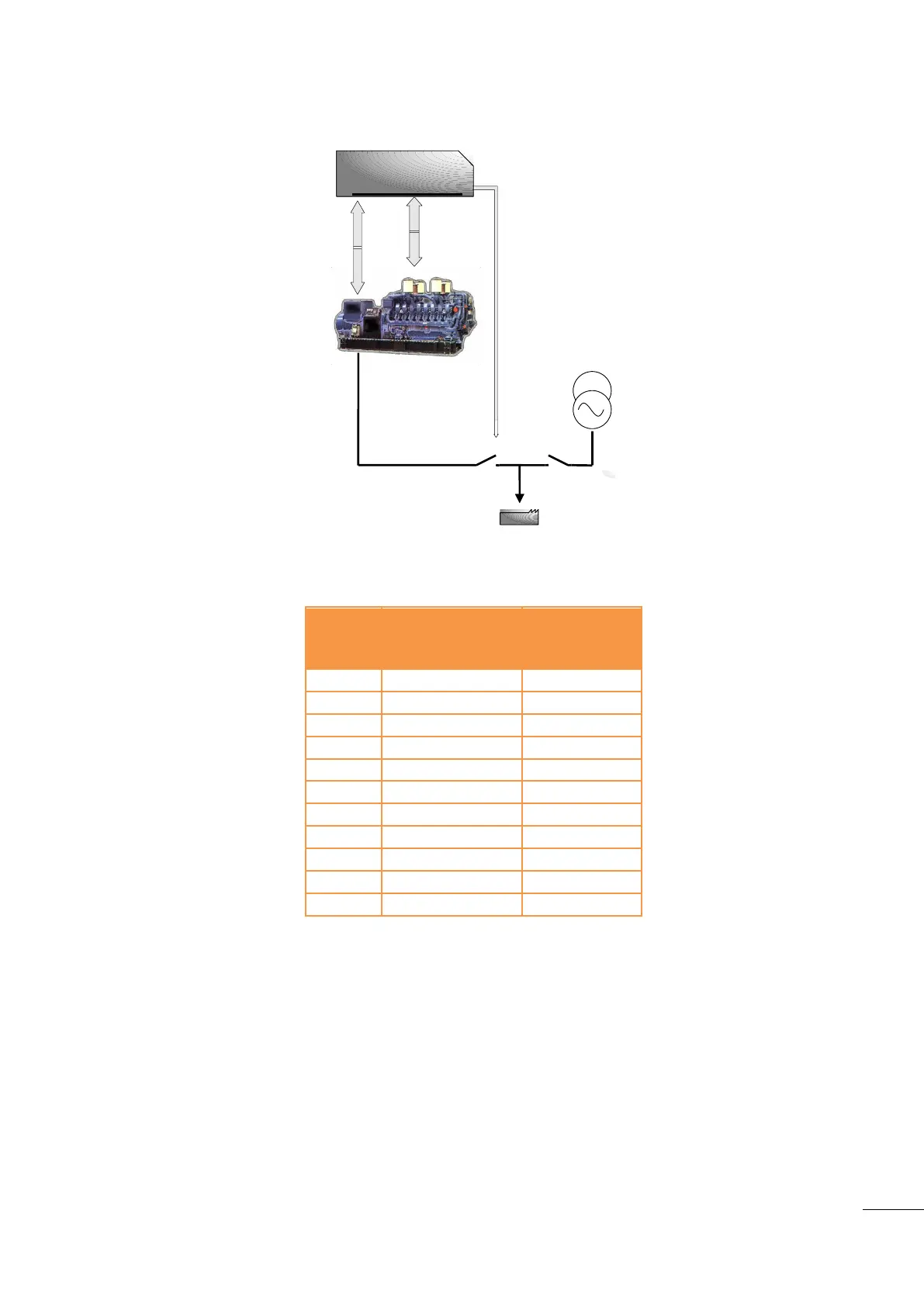

Figure 20 – Power plant in change-over without paralleling

Variable

number

Variable label

Variable value

1179

My Number

1147

Nb. of gen.

4006

Nb. of Master

1148

Mains parallel

NoCh.over

1153

Mains regul.

1158

Load sharing

1177

Static paralleling

1515

DeadBus manag.

1258

Load/Unl. mode

Inhibited

1846

Break Ma Fault

Mains

1841

Fault start

Yes

Table 10 - Typical no change over basic configuration

In "No change over" mode [E1148] GENSYS 2.0 only starts on receiving a remote start signal and doesn't

manage the mains breaker.
