A53 Z0 9 0020 L En Technical documentation
Chapter : Installing and commissioning a GENSYS 2.0 application
9.3
Installation instructions
The GENSYS 2.0 module has been designed for front panel mounting.
Indoor or outdoor installation is possible as long as the following requirements are met:
The chosen cabinet must meet the standard safety rules of the workplace.
The chosen cabinet must be closed during normal use to prevent the user from coming into contact
with power cables.
Only the front panel must be accessible during normal use.
In accordance with the Bureau VERITAS marine agreement, the module must not be installed in
areas which are exposed to the weather.
9.3.1
Mounting
To secure the GENSYS 2.0 onto the panel, use the special kit provided with the module. The kit contains 4
screws, 2 brackets and 1 mounting tool.

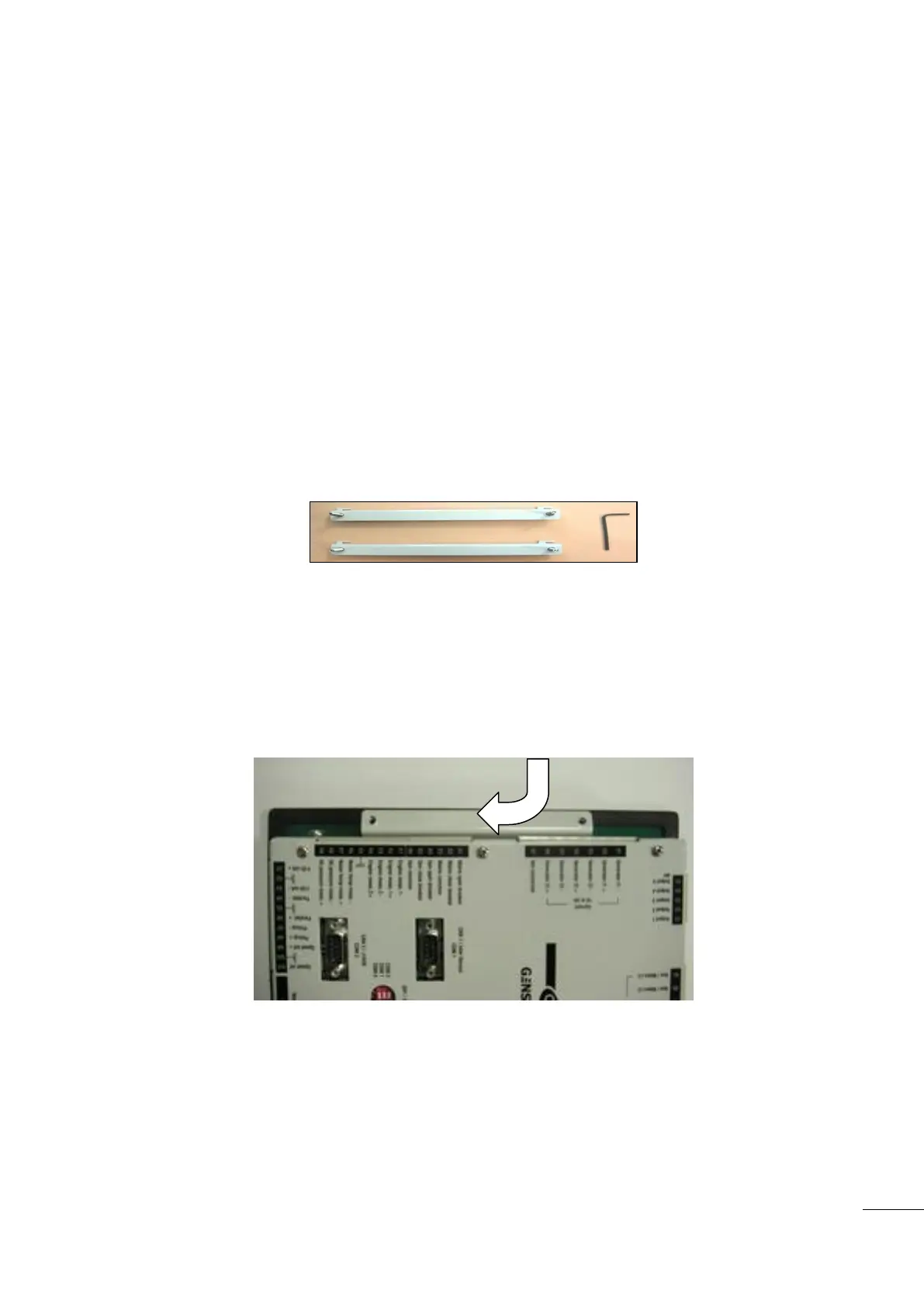

Figure 35 – Mounting kit
Remove the connectors.
Pass the module through the panel cut-out. Ensure that the gasket is properly positioned on the panel and
that it is flat.
On the rear side of the module, insert the first bracket into the two holes on the upper edge of the module
and push it to the left.
Figure 36 - Mounting brackets on GENSYS 2.0
Use the tool which is provided to screw the bracket gently onto the panel (just to hold the module in
place).
Insert the second bracket into the two holes on the lower edge of the module and push it to the right.
Use the tool to screw the bracket gently onto the panel.
Tighten brackets gradually until the module is firmly secured.
