Shared LAG State Tracking
Shared LAG State Tracking provides the flexibility to bring down a port channel (LAG) based on the
operational state of another LAG. At any time, only two LAGs can be a part of a group such that the fate
(status) of one LAG depends on the other LAG.

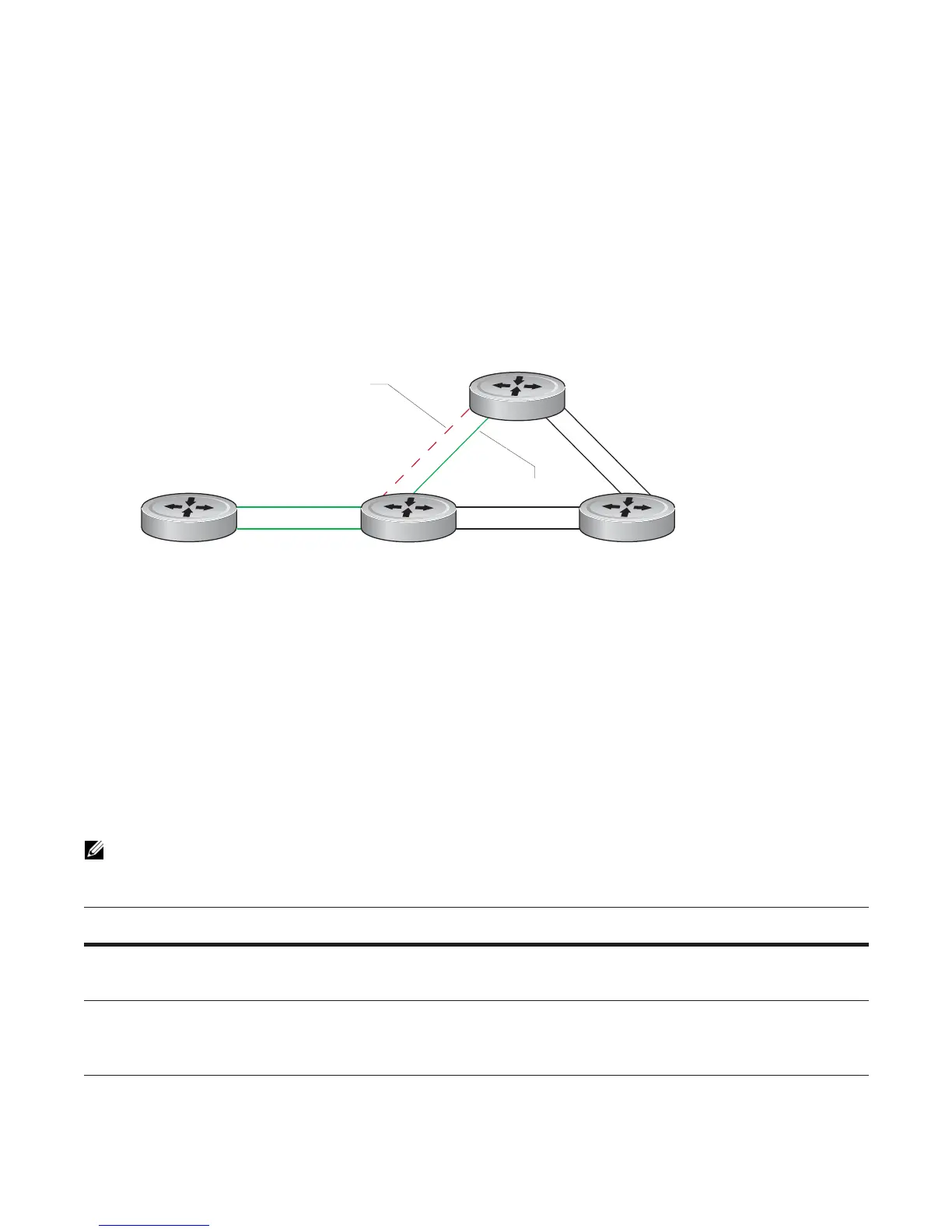

In the following illustration, line-rate traffic from R1 destined for R4 follows the lowest-cost route via R2,
as shown. Traffic is equally distributed between LAGs 1 and 2. If LAG 1 fails, all traffic from R1 to R4
flows across LAG 2 only. This condition over-subscribes the link, and packets are dropped.
To avoid packet loss, traffic must be re-directed through the next lowest-cost link (R3 to R4). FTOS has the
ability to bring LAG 2 down in the event that LAG 1 fails, so that traffic can be re-directed, as described.
This is what is meant by Shared LAG State Tracking. To achieve this functionality, you must group LAG 1
and LAG 2 into a single entity, called a failover group.
Configure Shared LAG State Tracking
To configure Shared LAG State Tracking, you configure a failover group :
In the following example, LAGs 1 and 2 have been placed into to the same failover group.
Note: If a LAG interface is part of a redundant pair, it cannot be used as a member of a failover group
created for Shared LAG State Tracking.
Step Task Command Command Mode
1
Enter port-channel failover group mode. port-channel
failover-group
CONFIGURATION
2
Create a failover group and specify the
two port-channels that will be members
of the group.
group number port-channel
number port-channel
number
CONFIG-PO-FAILOVER-GRP
Po 1
Po 2
fnC0049mp
R1
R2 R3
R4
Po 1 failure
Po 2 over-subscribed
